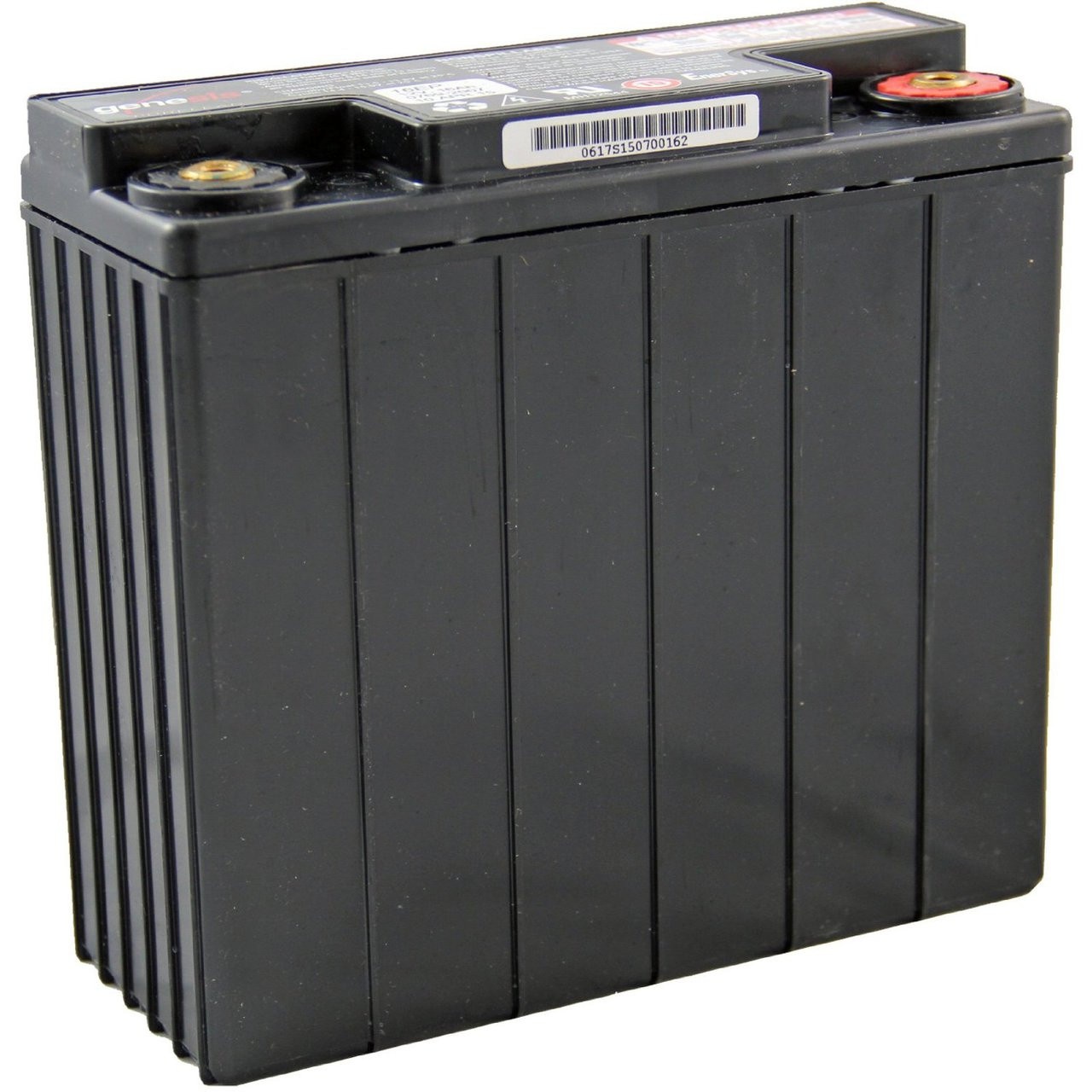

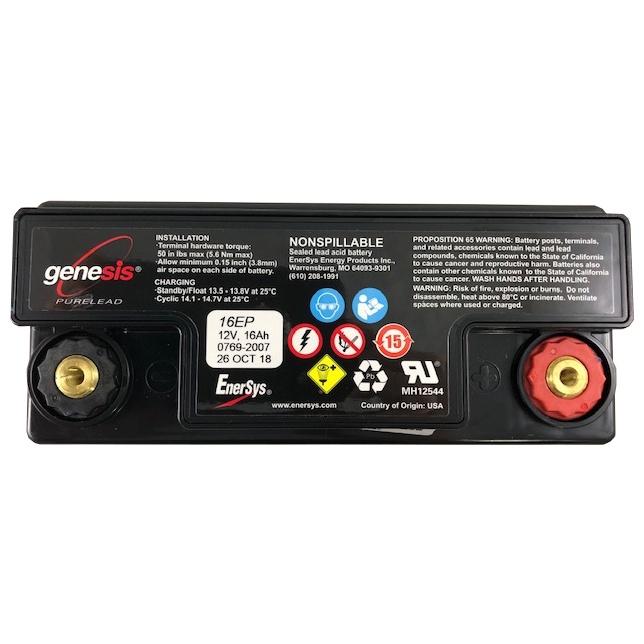

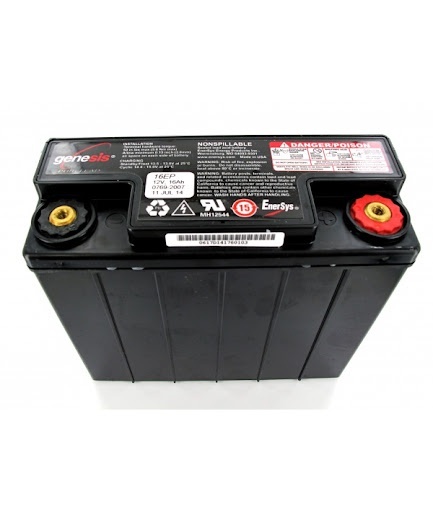

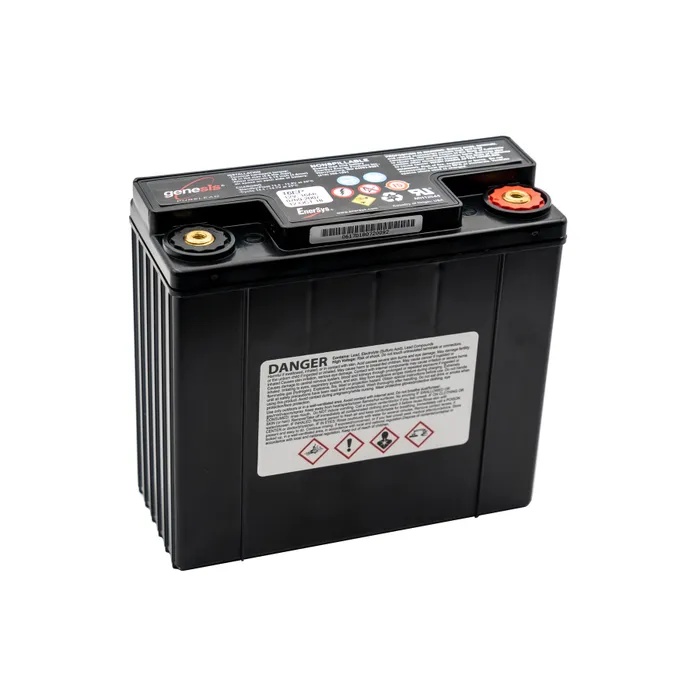

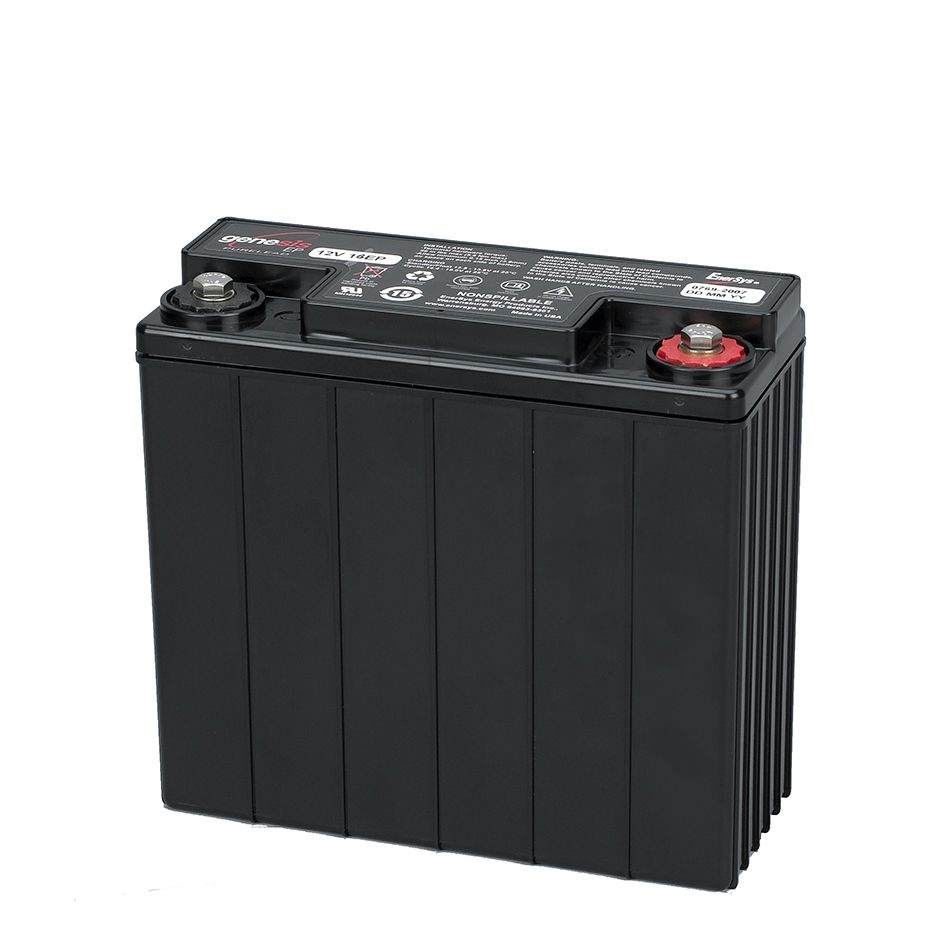

Battery Genesis 12V 16EP (G16EP) of 12V and 16Ah

Description

Genesis® XE and EP Thin Plate Pure Lead (TPPL) batteries excel in demanding, high-cycle applications such as: starting robots, medical equipment, electronics, telecommunications, gardening equipment, computer backup, UPS, alternative energy (solar and wind), hybrid electric vehicles!

Genesis® EP batteries are premium performance batteries, manufactured with thin pure lead plates (TPPL), packing more power into a smaller footprint. In addition to its performance characteristics, the Genesis EP battery excels in high temperature and vibration resistance, providing high operational safety especially in offices and hospitals. The EP battery also offers cycling capabilities in deep discharge applications, fast recharge capabilities and a sealed design.

PRODUCT SPECIFICATION:

Brand/Manufacturer: Genesis® Brand / manufactured by EnerSys®

Manufacturer: EnerSys World Headquarters 2366 Bernville Road, Reading, PA 19605, USA / EnerSys EMEA, EH Europe GmbH, Baarerstrasse 18, 6300 Zug, Switzerland

Importer: Sprinter2000

Country of origin: United Kingdom

Battery range: XE and EP - pure lead AGM battery range, with high cyclicity and withstands repeated deep discharges

Battery model: 12V 16EP / G16EP / EP 16 / G16EPX - optional version in metal case

Technologies: AGM / High Rate / Flame retardant (flame retardant housing) / Maintenance free

Housing: Housing and covers made of polymer Flame retardant UL94 V-0, highly resistant to shocks and vibrations

Installation: in any position, except upside down (upside down)

Nominal voltage: 12 V

Nominal capacity: 16 Ah (10hr to 1.80Vpc at 20°C) / 17Ah (8hr to 1.75Vpc at 25°C)

Charging: in cyclic mode 14.7-15 V at 25°C (no current limit) / in float mode 13.5-13.8 V at 25°C (no current limit)

Number of cycles: ~400 deep discharge cycles (80% degree of discharge)

Internal resistance: 19.1 mΩ

Typical short circuit current: 675A

Dimensions: 181.6 x 76.2 x 167.9 mm (L x W x H)

Applications: UPS, solar/wind backup, medical equipment, electric and hybrid vehicles, telecommunications, garden equipment, jump starters, etc.

Operating temperature: -40°C...+80°C (optional metal case)

Shelf life: 24 months at 20°C

Terminals: M6 internal thread (female), terminals located on the cover, on the long side, plus terminal on the right.

Weight: ~6.1 kg

Standards and certifications: IEC62485-2 / UL (MH12544) / ISO9001 / ISO14001

Warranty: 24 months from the date of purchase. The warranty is provided by Sprinter2000.ro

 Warnings: Do not short-circuit, do not throw into fire or disassemble even after use. Hand over used batteries only to authorized collection centers. Contains chemicals hazardous to the environment and health (especially lead and sulfuric acid)
