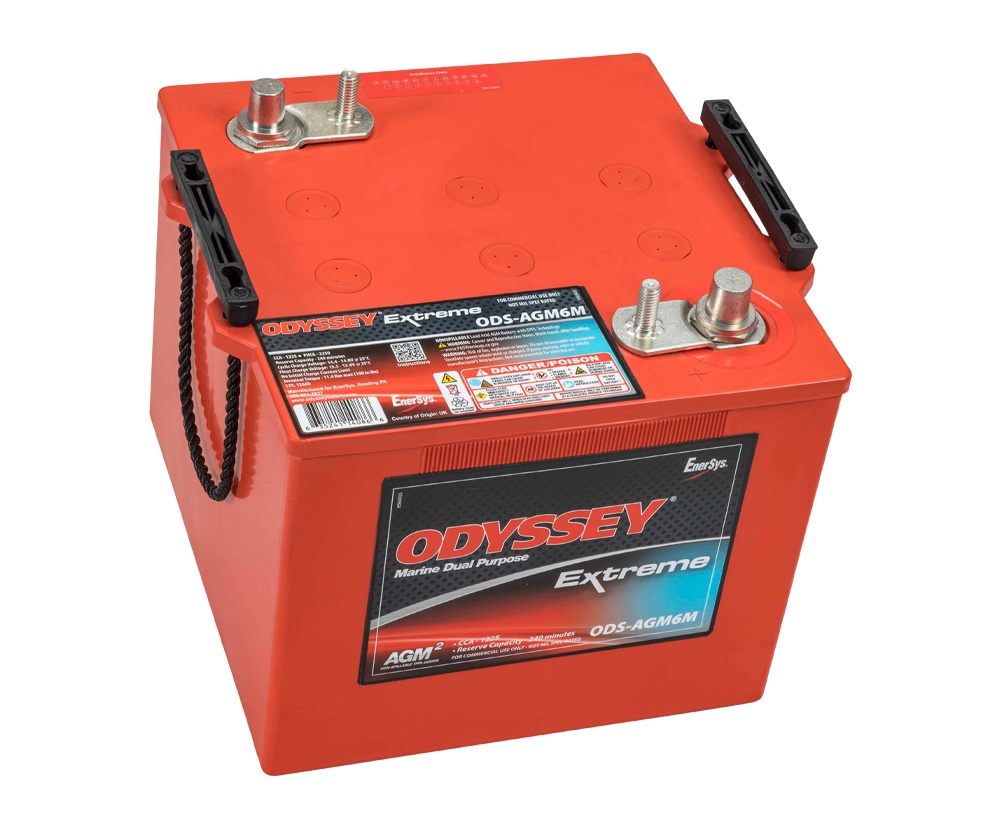

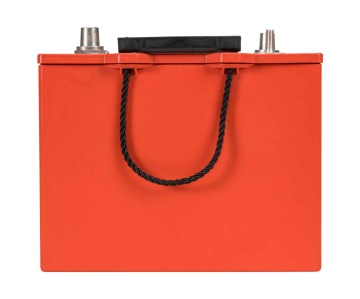

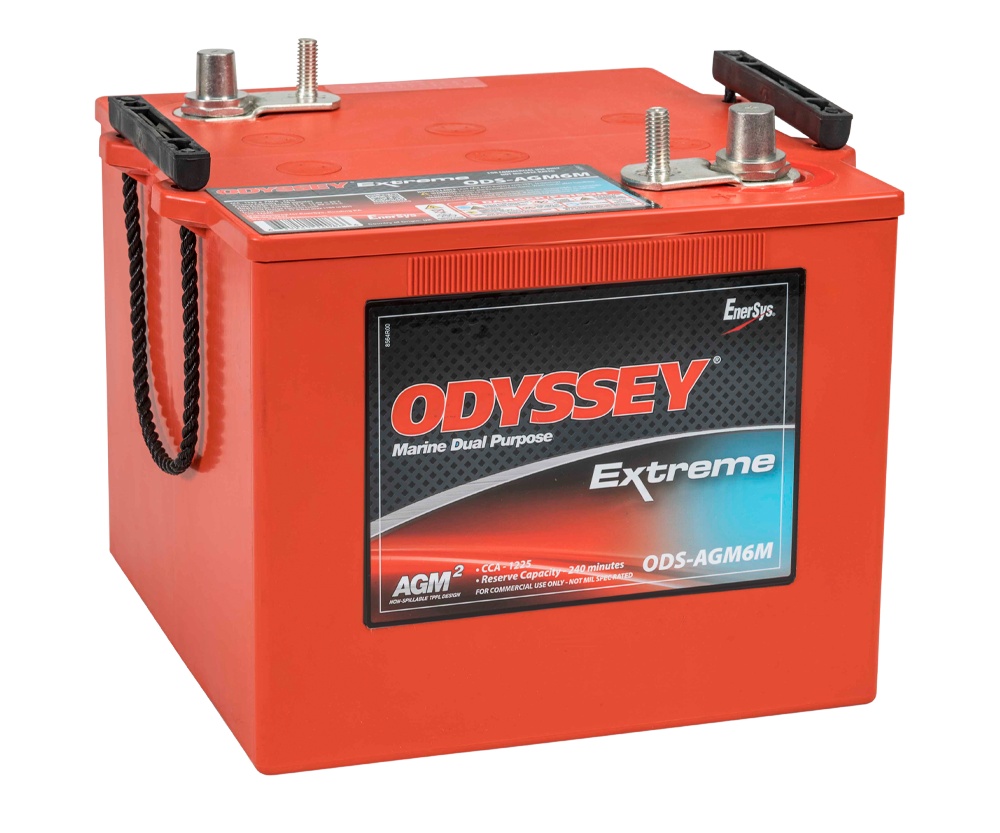

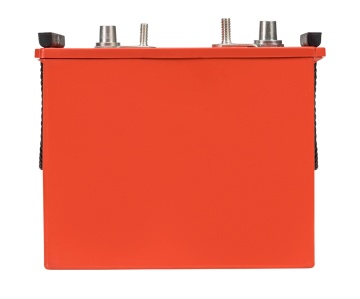

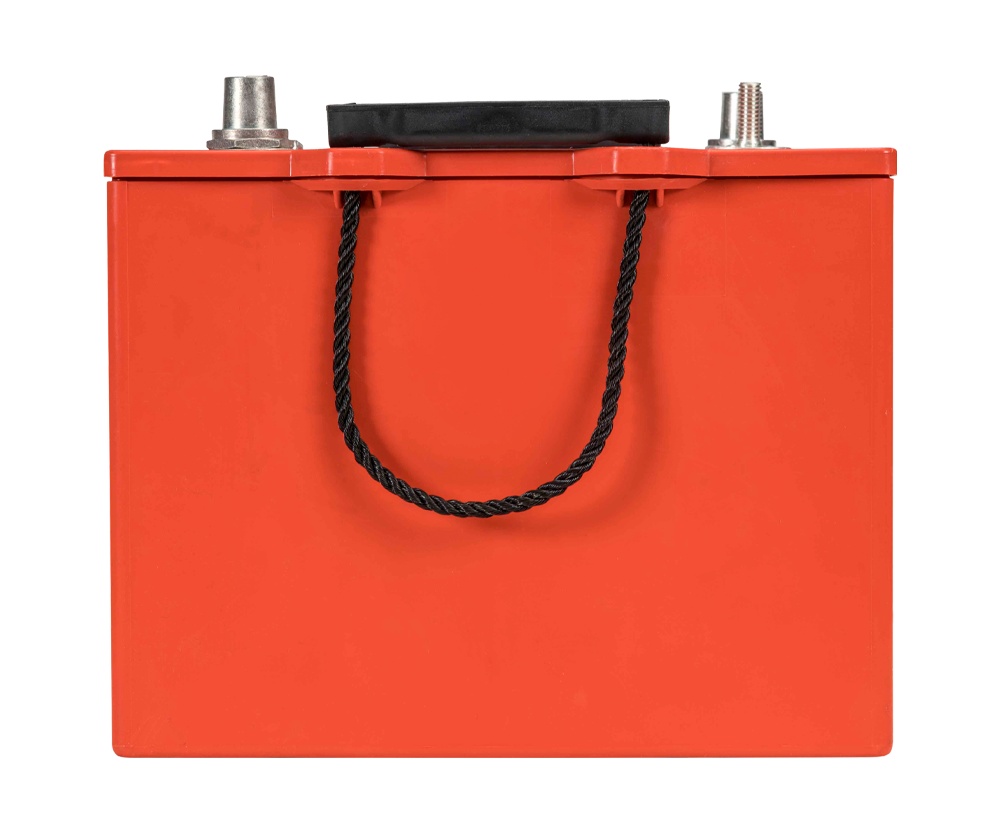

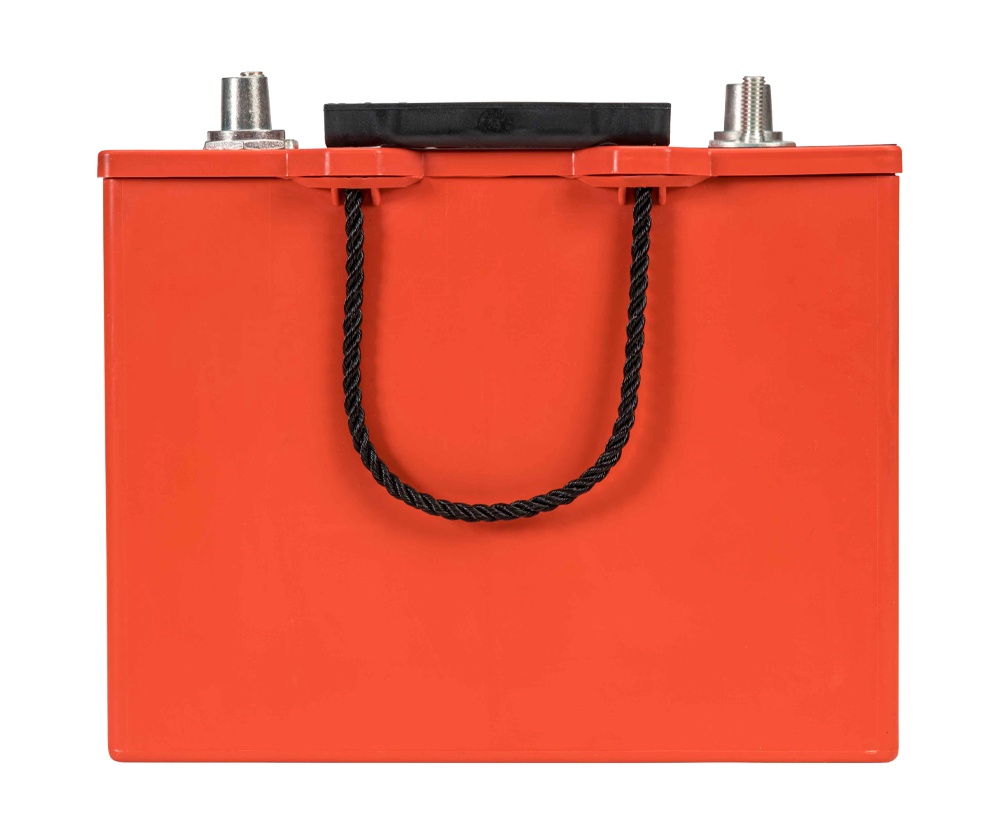

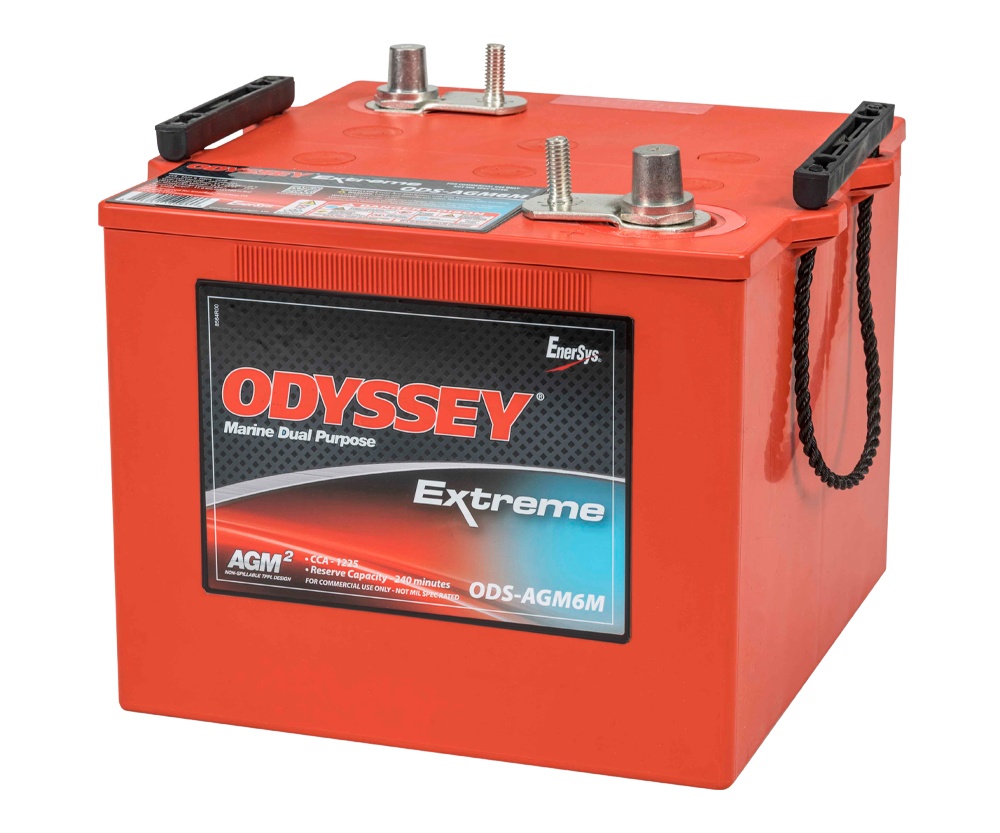

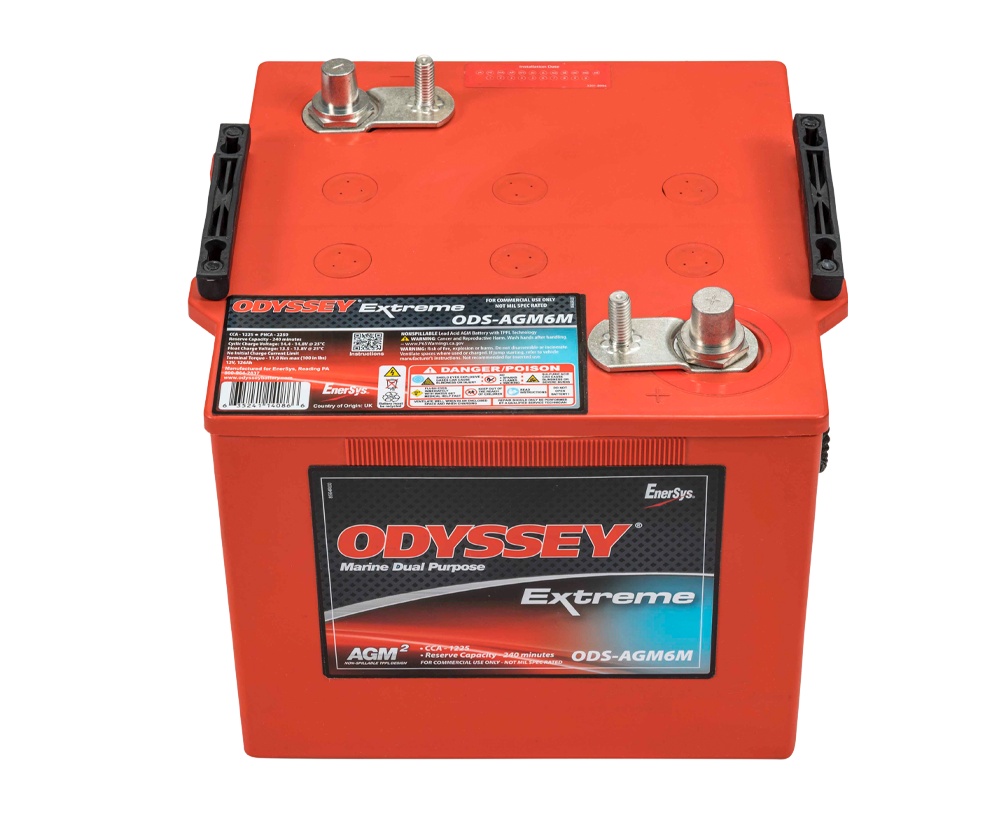

ODYSSEY BATTERY - Advanced Dual-Purpose Technology

High vibration resistance, for commercial vehicles and ships. Model used by NATO.

An ODYSSEY® battery ingeniously uses TPPL's ​​unique Absorbed Glass Mat (AGM) technology to deliver the performance of two separate batteries in one package. It delivers massive deep cycle performance (can be discharged over 60% more than any other battery), yet delivers exceptional starting power to beat any rival.

Reliable power for any ship!

In today's marine applications, the range of standard equipment continues to expand and can now include everything from lights and navigation systems to electric furnaces and air conditioning. But one thing that will never change is how quickly conditions on the water can change.

Traditional legacy (SLI) battery designs currently on the market either deep cycle to provide power for onboard loads or provide high amperage discharges for things like engine starting - they can't do both. That's why modern vehicles and cars struggle and fail. The ODYSSEY AGM-TPPL (99% pure lead) battery is the answer - a true dual-purpose battery!

Odyssey batteries offer massive starting power, fast recovery and extreme durability demanded by heavy-duty and commercial vehicles, as well as ships or special equipment, including military.

TECHNICAL SPECIFICATION:

Brand/Manufacturer: Odissey / EnerSys Energy Products - EH Europe Gmbh, Baarerstrasse 18, 6300 Zug, Switzerland

Battery Range: Odissey Extreme Marine Dual Purpose Battery - AGM Thin Plate Pure Lead (TPPL)

Product Code, Codes, Equivalents: ODS-AGM6M / PC2250 / UPC: 635241140866 / EAN: 635241142181 / Equivalent to Hawker ArmaSafe™ Plus, Varta J3 NATO Code 625023000, etc.

Model Made in: United Kingdom

Product Type/Use: Dual Purpose AGM TPPL Lead Acid Battery Used for Starting Commercial Vehicles, Heavy Duty Trucks (TIR), Agricultural and Construction Machinery, Marine and Military Vehicles. Dual-use battery - for starting engines but also for cyclic applications (deep cycle), such as lifting equipment (cranes, winches, elevators), etc.

Technology: AGM TPPL, sealed, completely maintenance-free.

Housing: ABS with high resistance to shocks, impacts and vibrations

Mounting position: In any position, except completely upside down

Storage life: 2 years at +25°C, normally without the need for recharging (recharging is recommended only if the voltage drops below 12.2V (50% SOC) during storage)

Self-discharge rate: 1.25% per month at +25°C / 5% per month at +40°C

No. of cycles at 80% depth of discharge: 400 cycles

Nominal voltage: 12V dc

Nominal capacity: 126Ah 20Hr / 114Ah 10Hr

Capacity reserve: 240 minutes

Internal resistance: ~2.1mΩ

Starting current (cold start): 1225A CCA (EN) / 1730A (HCA) / 1550 A (MCA)

Pulse current (5 seconds) hot start: 2250A (PHCA)

Short circuit current: 5000A

Charging parameters: Cyclic - 14.4 ...14.8V @ 25ºC / Float - 13.5 ... 13.8V @ 25ºC

Minimum recommended charging current: 11.4 A

Dimensions: 287 x 269 x H234 mm (height includes terminals)

Weight: approximately ~39 kg

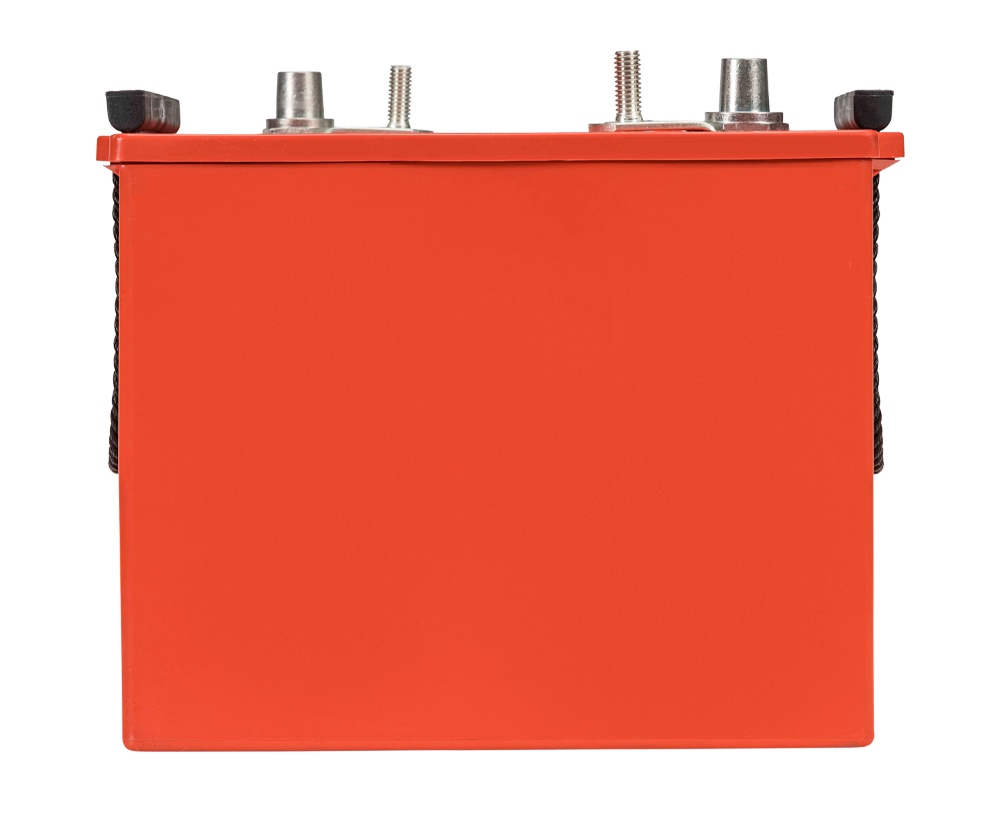

Dual terminals: SAE (automotive terminals) and 3/8-16" (marine)

Recommended operating temperature: -40°C...+45°C

Optimal storage temperature: +20°C

Life span: Designed: 8-12 years / Effective 3-10 years (depending on the mode of use - degree and frequency of discharge)

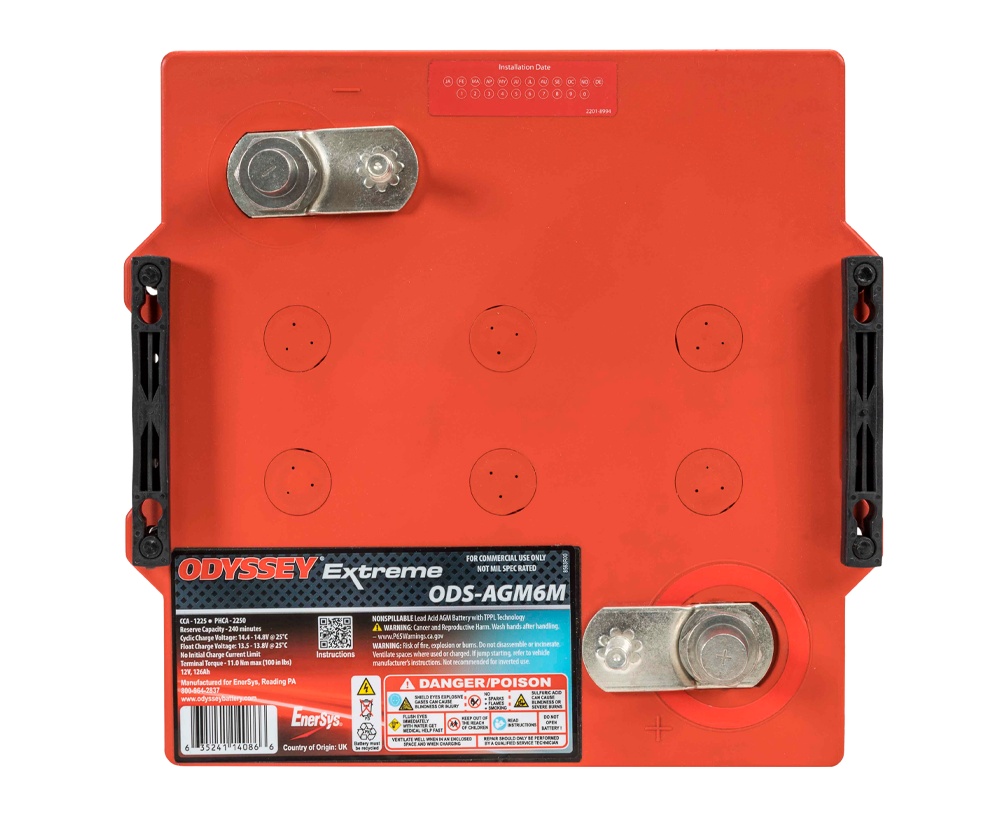

Terminal positioning: diagonal

Recommended uses: As a starting battery on boats, commercial vehicles, off-road, agricultural and construction equipment, military vehicles,high-power generators, etc.

Compatible vehicles: off-road vehicles, passenger cars and vans with or without Start&Stop technology, trucks and equipment (agricultural, construction, military, etc.), lifting equipment, etc.

Assembly: Not included in the product price.

Commercial warranty for individuals: 36 months from purchase. The warranty is granted in compliance with the conditions of use in the specification.

Certifications: Manufacturer and seller with ISO9001 (quality) and ISO14001 (environment) certifications.

Barcode (EAN13): 635241142181

Customs tariff code/Intrastat: 85071020

CPV code: 31431000-6 (Batteries with lead and sulfuric acid plates)

 WARNING: Do not disassemble, short-circuit, or throw into fire.

 WARNING: Do not throw away in the trash, even after the end of their service life! Used batteries contain chemicals that are very dangerous to health and the environment! Hand over used batteries to authorized collection centers, to your dealer or to the collection bins for used batteries in large stores.
