Backup battery Foton FH 12V 5Ah HR

Description

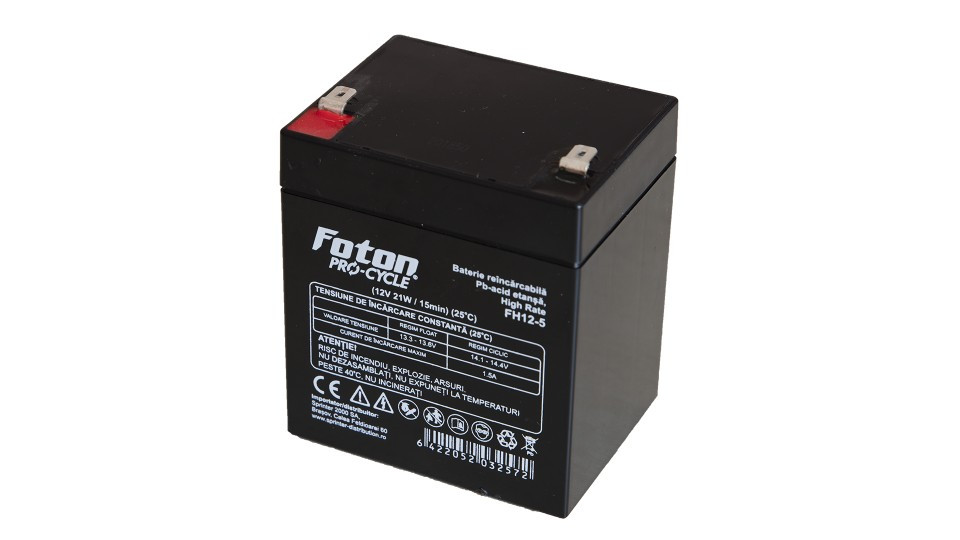

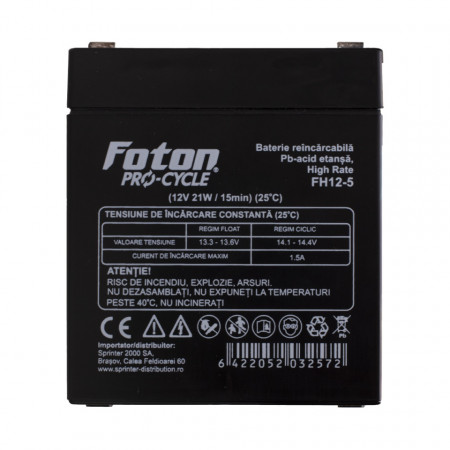

Foton FH12-5 HR lead-acid battery with 12V 5Ah, VRLA-AGM (Valve Regulated Lead Acid Battery - Absorbed Glass Mat) of 12V and 5Ah capacity is a sealed battery used for backup in alarms, surveillance systems, electronic scales and houses tax mark or wherever high discharge currents are needed.

Brand: Foton® Pro-Cycle®

Product code/Equivalents: FH12-5 / HGL5-12

Technology: VRLA HR (high rate)

Uses: UPS, EPS, signaling systems, safety lighting, alarm and security systems, etc.

Voltage: 12V

Nominal capacity: 5Ah / 21W per cell for 15 minutes

Effective capacity: 5Ah /0.25A 20Hr, up to 1.8V per cell at 25°C / 21W per cell 15 min. up to 1.67V per cell at 25°C

Maximum discharge current: 75A - 5 seconds

Internal resistance: ≈32mΩ

Operating temperature: Discharge at -15°C...+50°C / Charging at -10°C...+50°C / Storage at -20°C...+50°C

Ideal temperature for use: +22°C...+28°C

Charging in cyclic use: 14.5V-15V.0 at 25°C, initial charging current <1.5A; Temperature correction coefficient -30mV per °C

Charging in buffer use: 13.5V-13.8V at 25°C, initial charging current <1.5A; Temperature correction coefficient -18mV per °C

Influence of temperature on capacity: 102% of capacity at +40°C / 100% at +25°C / 85% at 0°C

Self-discharge: remaining capacity 91% after 3 months of storage / 82% after 6 months / 65% after 12 months

Projected life span: 5 years

Applicable standards: EN60896-21, EN60896-22

Dimensions: 90x70x101 (LxWxH) ± 1mm / Total height with terminals = 107mm ± 1mm

Weight: 1.62kg

Terminals: T2/T1 (6.3mm)

 Do not throw away used batteries. Hand over to authorized collection centers.
