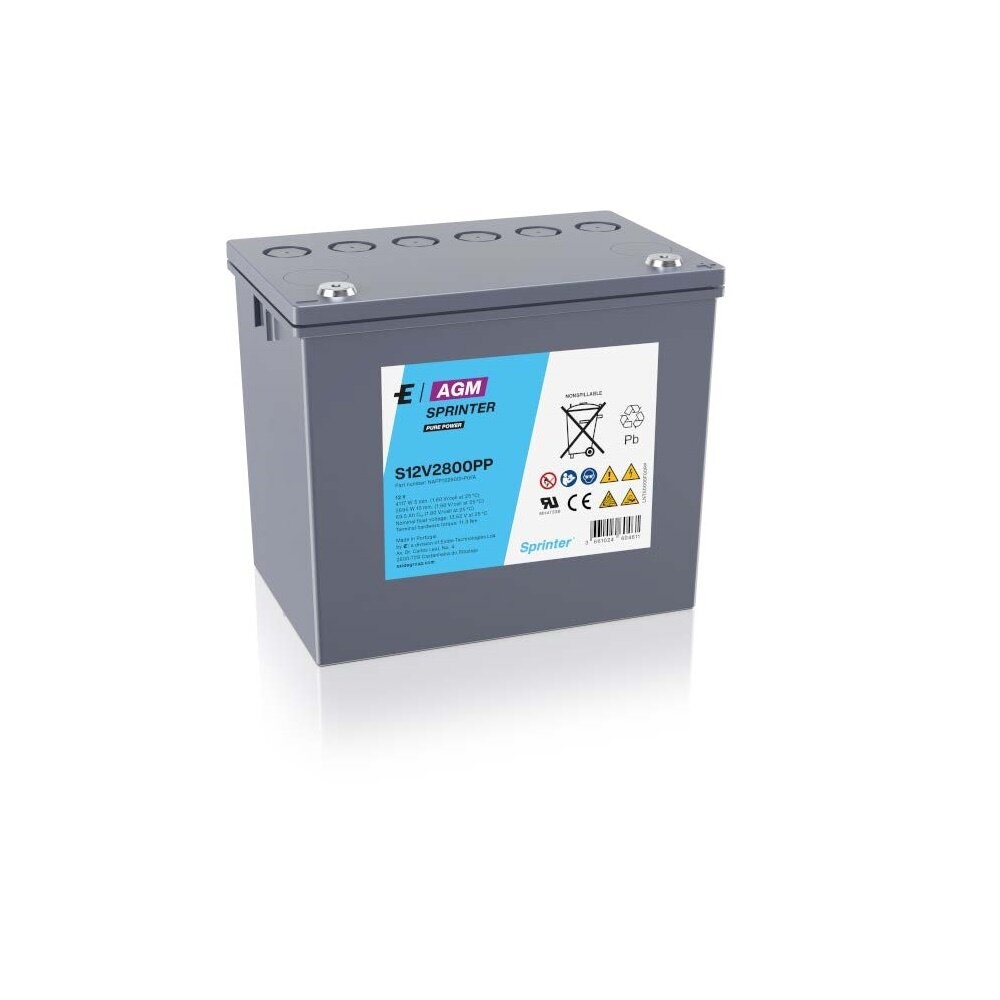

Sprinter battery S12V2800PP of 12V and 69.5Ah

Description

SPRINTER Pure Power - Industrial batteries / Network Power

The extremely powerful and compact AGM batteries of the Sprinter Pure Power series are an ideal energy source for uninterruptible power supplies and are particularly good in UPS applications and other security systems. GNB's experience in innovation and VRLA technology makes Sprinter batteries the preferred choice as an emergency backup battery in the High rate field.

This is the new, improved version of the Sprinter P12V1575 battery!

The advantages of the product are:

-Maintenance-free (no need to top up with water) throughout the battery's life

-AGM technology

-Life span: >12 years - very Long Life according to EUROBAT 2015 classification

-Available as standard or flame-retardant version (UL 94 ‐ V0)

-Developed taking into account the IEC 60896-21 / 22 standard

-Pure lead content

-Very low gas leakage due to internal gas recombination ﴾99% efficiency﴿

-No restrictions on rail, road, sea and air transport (IATA, DGR clause A67) - no worries when transporting operational blocks

-Manufactured in Europe in ISO9001 certified factories (we mention that the importer and distributor of Sprinter2000 is also ISO9001 certified)

-UL (Underwriters Laboratories) certified

PRODUCT SPECIFICATION:

Brand/Manufacturer: GNB Industrial Power, member of the EXIDE group

Country of origin: EU (Portugal)

Range: Sprinter™ Pure Power

Product code/name: S12V2800PP / NAPP122800HP0FA

Equivalent codes: P12V1575 - from the previous Sprinter P range

Housing: Polypropylene (optionally flame retardant) UL 94-HB

Nominal voltage: 12 V

Nominal capacity: 69.5 Ah C10min. 1.8V/C 25°C / CP10min. 1.60V/C 25°C 2695W/Block

Internal resistance: ~5.58 mΩ (IEC60896‐21/22)

Short circuit current: 2251 A (IEC 60089-21/22)

Float charge: 2.27 V/cell @ 25 °C

Designed life: >12 years use at 25°C, "Very Long Life" according to EUROBAT 2015 Classification

Dimensions: 262 x 172 x 223 mm (L x W x H)

Applications: UPS, power backup

Working temperature: -40 : +55 degrees Celsius

Terminals: F-M6 - top terminal; terminals located on the cover, with internal thread / 11 Nm

Applicable standards: IEC 60896-21/22 / ISO 9001 certified manufacturer / ISO 9001 importer/seller

Weight: ~26 kg

Commercial warranty for individuals: 24 months from the date of purchase. The warranty is provided directly by the online store.

 Warnings: Do not short-circuit, do not throw into fire or disassemble even after use. Hand over used batteries only to authorized collection centers. Contains chemicals hazardous to the environment and health (especially lead and sulfuric acid)
