Description

Hawker® Armasafe™ Plus Batteries

Today’s military demands a higher standard of combat readiness and more efficient operational energy management. Hawker® ARMASAFE™ Plus batteries have been delivering on this mission since 2003. Featuring advanced Thin Plate Pure Lead (TPPL) technology, ARMASAFE Plus batteries deliver the power, performance and reliability needed to win on the battlefield.

Field-tested power and reliability:

With over 4 million units delivered and installed, soldiers around the world have come to know the ARMASAFE Plus 6TAGM battery as the “Hawker battery,” “A+,” and “HASP (Hawker ARMASAFE Plus).” Regardless of the moniker applied, ARMASAFE Plus 6TAGM batteries remain the original and preferred choice for military vehicle batteries.

Advantages:

• Massive starting power, high power reserve and high cyclic capacity even at deep discharge
• Sealed and leak-proof, no spillage and virtually maintenance-free
• Up to 4 times longer service life than conventional batteries
• Extreme vibration resistance and high reliability
• Can be installed in any position, except completely upside down
• 99% efficient recombination
• Integrated flame arrester and fire-resistant housing
• 97% recyclability
• Very long storage life, ready to fight after a long time, even at extreme temperatures

TECHNICAL SPECIFICATION:

Brand / Manufacturer: Hawker® / EnerSys Energy Products - EH Europe Gmbh, Baarerstrasse 18, 6300 Zug, Switzerland

Battery range: ArmaSafe Plus

Product code: 12FV120 / 9750N7010 / 6TAGM

NSN code (NATO stock number): 6140-99-690-6632

Product country of origin: France

Equivalent codes in the Hawker ArmaSafe Plus range: HASP-FT / HASP-6T / 9750N7025 , with NSN: 6140-01-4851472. This code is manufactured in the UK and can be offered on request, the delivery time is usually much longer.

Other equivalent codes: Varta J3 (NATO) 125Ah (discontinued) / Exide Marine Leisure EQ-1000

Technology: AGM TPPL VRLA (Absorbed Glass Mat - Thin Pure Plate Lead - Valve Regulated Lead Acid) - AGM with thin pure lead plates and pressure regulating valve. Completely maintenance-free, high shock resistance

Intended uses: Military vehicles

Housing: Flame Retardant - UL94 V-2

Nominal voltage: 12 V

Charging voltage: 14.4V at +20°C

Nominal capacity: 126 Ah (C₂₀) / 103 Ah (C₅)

Crank current (CCA): 1225 A (SAE)

Internal resistance: ~1.6 mΩ

Recommended operating temperature: -40°C ... +80°C

Estimated number of cycles: 3600 cycles at 20% DoD / 1650 cycles at 50% DoD / 680 cycles at 80% DoD

Recommended storage time (without use and recharging): Up to 60 months at +15°C / Up to 30 months at +25°C

Terminals: Diagonally positioned, compliant with EN50342-2 / DIN72311-4

Maximum dimensions: 269 x 286 x 230 mm (L x W x H). Including terminals.

Weight: ~40 kg

Product according to regulations: UN2800-class 8 (transport) / UK MoD / DEF STAN 61-021 Supplement 042 / French DGA S-CAT 20601

Commercial warranty: 24 months

 IMPORTANT NOTE: This product cannot be sold to individuals. At the time of ordering, documents and evidence regarding use, compliance with the conditions and scope of use may be requested. We reserve the right to refuse orders, given the specifics of this product.

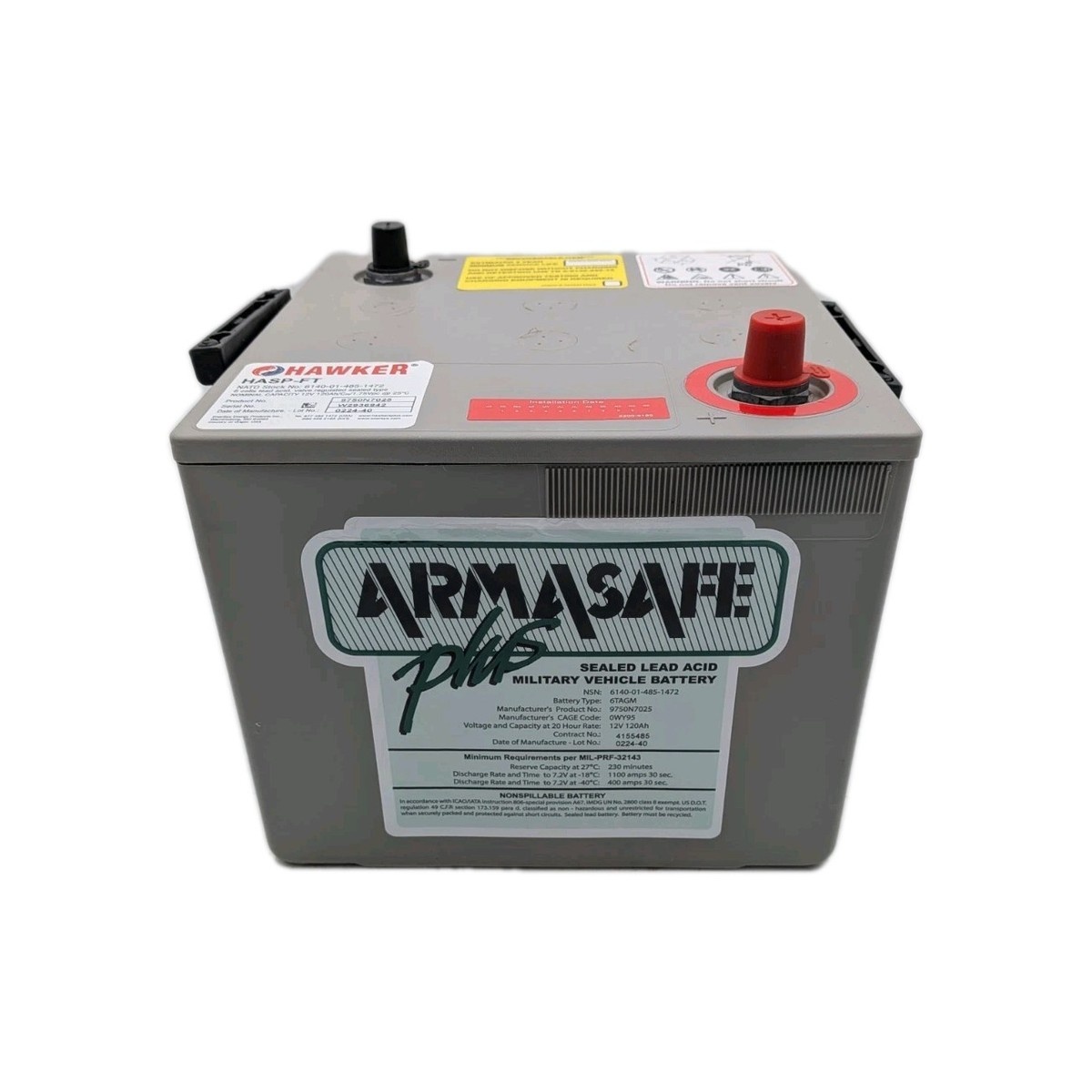

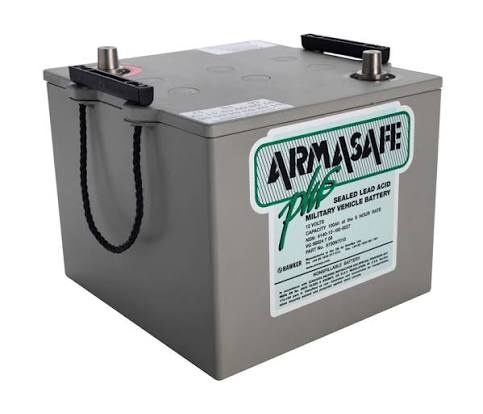

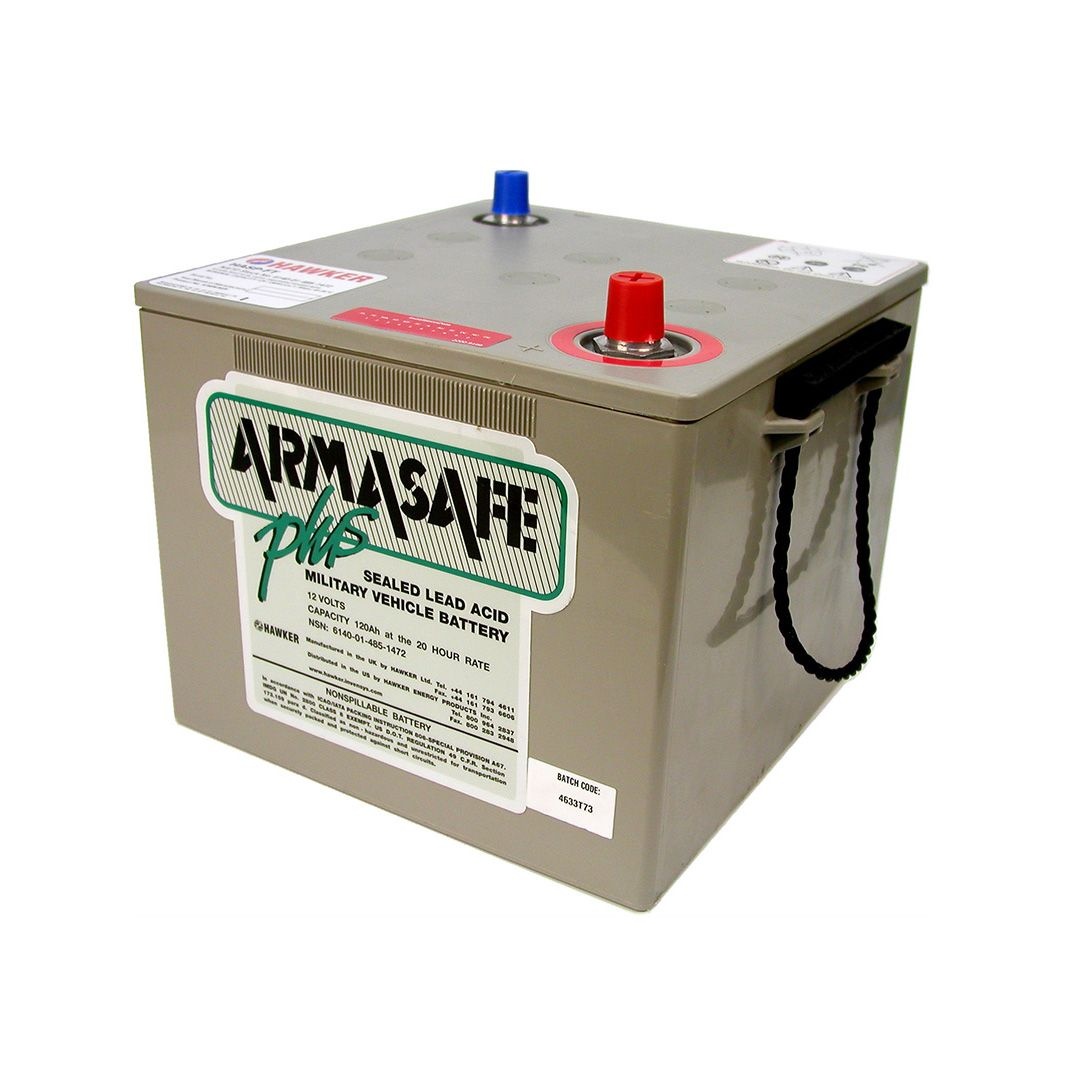

 Exemplary photos for the battery format. The actual product may differ slightly in labeling and color, but retain all the technical characteristics in the specification above.

 Warnings: DO NOT disassemble, short-circuit, or dispose of in the trash. Dispose of used batteries only at authorized collection centers or the distributor.
