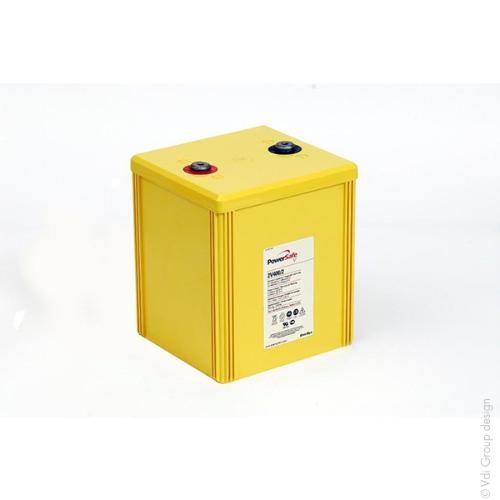

Enersys PowerSafe V-TT 2V400/2 2V 400Ah Battery

Description

POWERSAFE® V-TT BATTERIES

More power in a smaller volume!

The PowerSafe® V-TT range of valve-regulated lead-acid (VRLA) batteries offers unparalleled performance for telecommunications applications. Their reputation for long service life, combined with excellent high-rate performance, makes PowerSafe V-TT batteries the top choice for uninterruptible power supply (UPS) systems.

PowerSafe V-TT batteries are recognized worldwide as a premium solution. They offer superior performance while occupying less space than conventional standby batteries. PowerSafe V-TT batteries also feature thick-walled containers and lids made of ABS plastic. Each cell incorporates its own safety valve, which allows for the controlled release of gas when pressure builds up inside.

ADVANTAGES OF THE V-TT RANGE:

• Capacity range for the PowerSafe V-TT series: from 46 to 518 Ah
• Technology: AGM VRLA
• Available voltages: 2, 4, 6, and 12V
• UL94 V-0 flame-retardant case and lid

Note: PowerSafe® products are marketed under the SuperSafe® brand in the following countries: India, Indonesia, Malaysia, Singapore, and Thailand.

PRODUCT SPECIFICATIONS:

Brand/Manufacturer: Enersys

Manufacturer Designation/Code: 2V400/2

Casing: UL94 V-0 – flame retardant (ABS casing)

Nominal Voltage: 2 V

Nominal Capacity: 400 Ah @ 10Hr down to 1.8Vpc at +20°C / 388 Ah @ 8Hr down to 1.75Vpc at +25°C

Short-circuit Current: 7782 A

Internal Resistance: ~0.27 milliohms

Charging Parameters – Float: 2.28Vpc at +20°C / 2.265Vpc at +25°C

Dimensions: 195 x 208 x 247 mm (L x W x H)

Technology: Maintenance-free AGM VRLA

Applications: Telecommunications, UPS

Mounting position: Vertical or horizontal

Shelf life (without recharging): 6 months

Design life: Very Long Life (>12 years) according to EUROBAT classification

Operating temperature: -30 to +45 degrees Celsius

Terminals: 2 x M8 F

Weight: ~23.6 kg

Standards and certifications: UL / IEC 60896-21/22 / IEC 62485-2 (installation); manufacturer is certified to ISO 9001, ISO 14001, ISO 45001, and ISO 50001

Commercial warranty for private individuals: 24 months
