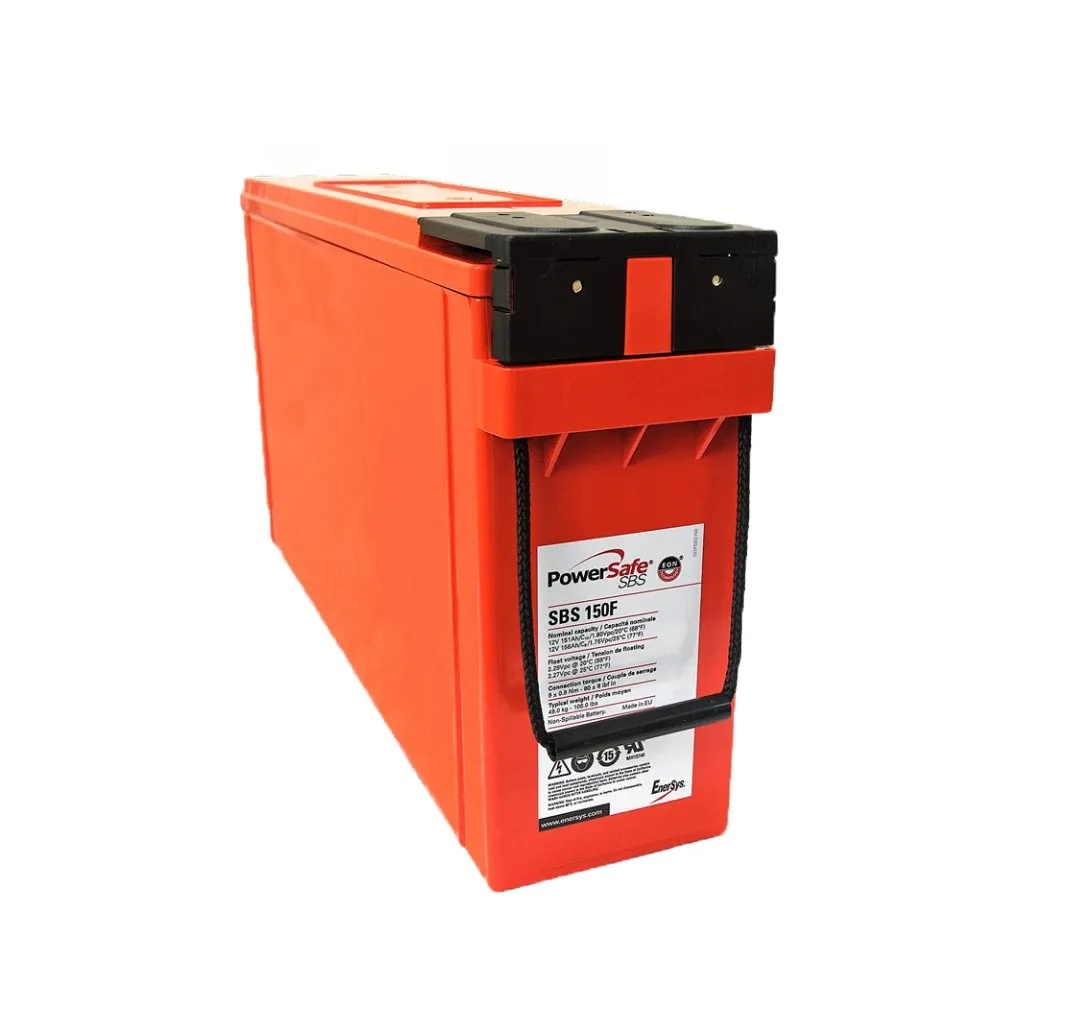

Enersys PowerSafe EON SBS 150F 12V 151Ah battery

Description

Tehnologia EON® remarcabila a EnerSys® PowerSafe extinde in continuare posibilitatile tehnice ale Bateriilor PowerSafe® SBS®: Tehnologia PowerSafe SBS EON pastreaza beneficiile de obicei asociate cu EnerSys Thin Plate Pure Lead Tehnology (durata foarte lunga de viata, densitate mare de energie, termen de valabilitate superior, etc.), livrand performante ciclice exceptionale atat in regim float cat si in aplicatii de incarcare rapida, chiar si in cele mai fierbinti si cele mai dure medii de operare.

Where conventional VRLA AGM batteries struggle to cope with harsh conditions and frequent power outages, EON technology makes the PowerSafe SBS 2V and 12V batteries the perfect solution. PowerSafe Specifications - SBS EON technology makes these rechargeable batteries suitable for large-scale UPS and off-grid energy storage applications.

The PowerSafe SBS EON Technology battery range is available in several configurations: the SBS B14 front terminal - 190F design which makes installation and inspection quick and easy, the classic SBS 410 top terminal design and the SBS 320 - 3900 series which offers industry leading capacities (up to 3900Ah), in OPzV DIN housings.

The Enersys PowerSafe SBS 150F EON Technology - Front Terminal battery is a top-of-the-range industrial battery in terms of performance, therefore a Lead-acid battery intended for demanding applications, which require cyclicity and fast charging, very long service life and high capacity. It is mainly used in telecommunications (telephone exchanges) or high-capacity UPS (including thermal power plants).

PRODUCT SPECIFICATION:

Brand/Manufacturer: EnerSys© PowerSafe©

Range: SBS EON

Made in: European Union

Product code: SBS 150F-12

Technology: AGM, completely maintenance-free

Housing: ABS UL94-V flame retardant, with high resistance to shocks and vibrations

Nominal voltage: 12 V

Nominal capacity: 151 Ah (C_{10 hr} 1.8 Vpc @ 20°C)

Internal resistance: ~3.8 mΩ

Short-circuit current: 3330 A (IEC)

Dimensions: 283 x 561 x 125 mm (h x L x w)

Average life: >12 years (up to 15 years) - Very Long Life classification according to EUROBAT 2015 standards

Applications: telecommunications, UPS, generators, starting robots, power plants thermal

Working temperature: -40°C ... +50°C

Maximum storage time: 2 years at +20°C

Terminals: 2 x M6 M (front terminal - terminals located at the front on the short side; terminals with metric thread 6/female)

Standards and certifications: IEC60896/21 & 22 / UL / installation according to IEC 62485-2 / manufacturer certification ISO 9001 / ISO 14001 / OHSAS 18001

Weight: ~49 kg
