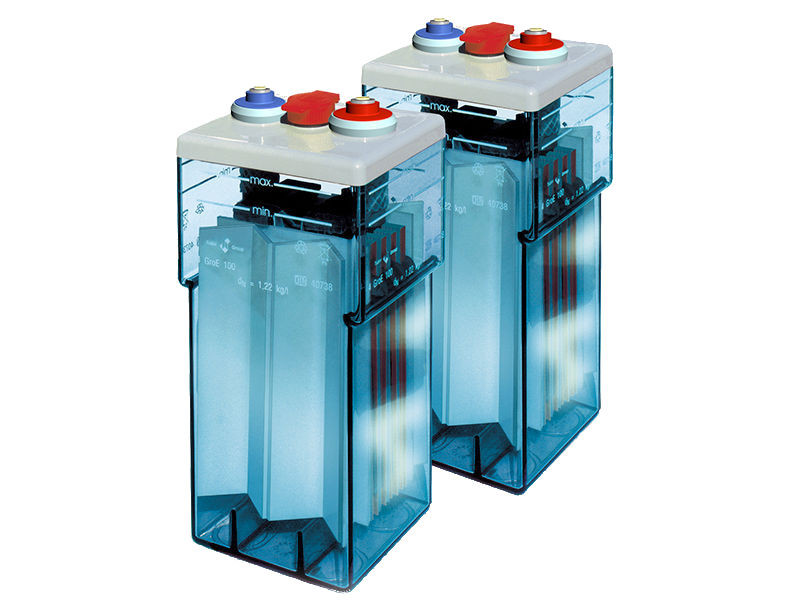

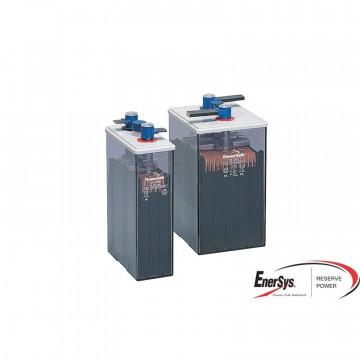

Battery 2V Enersys PowerSafe Vb2306 330Ah

Description

ATTENTION - Item produced only to order. The delivery term is usually several months after the firm order and the receipt of an advance. After placing the order, you will be contacted to confirm the delivery date and advance payment.

PowerSafe® Vb batteries are ventilated lead-acid batteries designed for industrial applications in power sources with high safety requirements. These unique cells are qualified for both types of discharges: short-duration high-current discharges and long-duration low-current discharges.

The main areas of use are DC power supply systems in power stations and substations, UPS systems, industrial systems and emergency power supply systems. They can also be used to start the engine and to store energy in solar systems. The special design of the PowerSafe Vb battery board offers a high level of energy density and a very long life in a unique design. This provides better performance and can minimize the space used for batteries. A rigid earthquake-resistant cell, together with PowerSafe Vb safety terminals make this a superior battery. A very long interval to fill the electrolyte level minimizes the required service.

The key benefits are:

• Large range of available capacities: 275Ah – 2400Ah
• Simple cells, nominal voltage 2V
• Designed lifetime of 25 years in standby applications (20ºC)
• Refill interval with distilled water of approximately 5 years in standby mode at 20°C
• High cycling capacity in energy storage systems
• Design with rigid cells, resistant to earthquakes

PRODUCT SPECIFICATION:

Brand/manufacturer: EnerSys

Battery range: PowerSafe Vb - range intended for professional energy backup, including from renewable sources (photovoltaic, wind, etc.)

Model: Vb2306

Nominal voltage: 2V

Nominal capacity: 330Ah C₁₀/1.80Vpc @ 20°C / 330Ah C₈/1.75Vpc @ 25°C

Housing material: styrene-acrylonitrile (SAN), impact resistant, transparent, with indication of electrolyte level (Max/Min)

Positive electrode material: lead/antimony alloy plate. The special suspension plate, the design allows for improved aging behavior

Negative electrode material: grid plate with lead alloy

Separator material: microporous separator, combined with a fleece pocket for the positive electrode

Electrolyte: Dilute sulfuric acid with a density of 1.24 kg/l

Internal resistance: 0.41mΩ

Short circuit current: 5034A

Dimensions: 122 x 266 x 440 mm (LxWxH)

Recommended charging voltage: 2.23Vpc at 20°C in float mode

Recommended applications: energy storage from renewable sources, UPS, telecommunications, etc.

Operating temperature: -10°C : +45°C / recommended +10°C... +30°C

Maintenance: checking and refilling with distilled water at approx. 5 years

Terminals: M10, solid copper connector (30 mm x 5-10 mm) insulated type, with screws, voltage measurement possible

Installation space: installation in rooms or cabinets, in compliance with the safety provisions specified in the European standards EN 50272-2, IEC 62485-2 (and possible national regulations)

Applicable standards and certifications: IEC 60896-11 / ISO 9001:2008 / ISO 14001:2004

Weight: 32.2kg

Batteries contain lead and acid electrolyte - hazardous substances for the environment and health. Do not disassemble, do not throw in fire and do not throw away. Hand over the used batteries to the authorized collectors or to the used car battery collection boxes in the big stores.
