Description
PowerSafe® TS batteries - Sustainable solutions

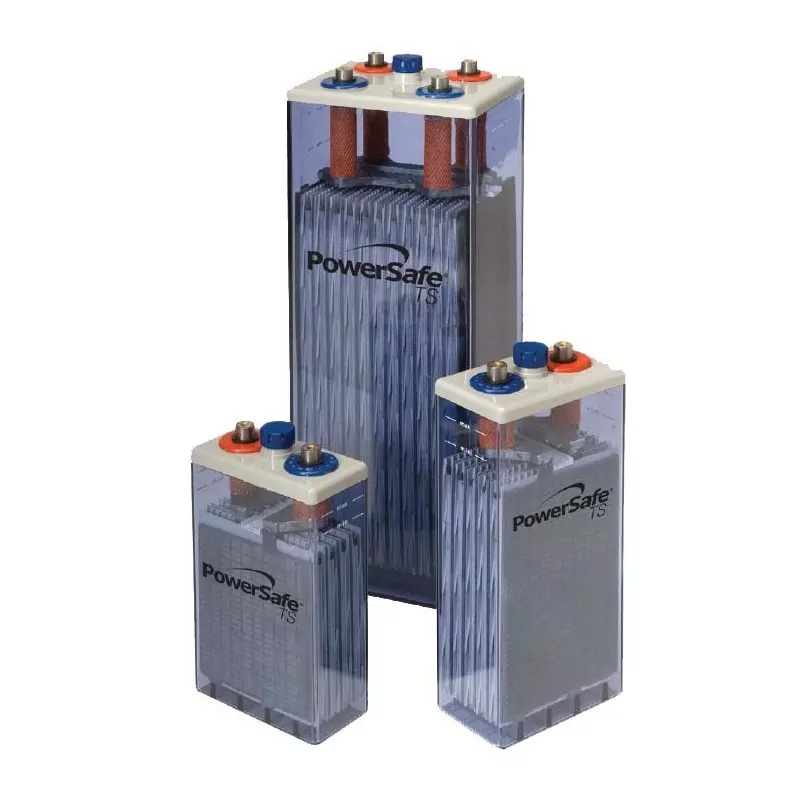

PowerSafe® TS batteries are unique cells that offer high-performance life solutions for renewable energy applications. Combining vented technology and tubular positive plate design, PowerSafe TS batteries are ideal for solar power installations that require reliable backup power after sunset or during periods of low sunlight.
More power with minimal maintenance:
Featuring a tubular positive plate design, PowerSafe TS batteries are optimized for extended cycle life and increased capacity. They only need to be refilled with distilled water once a year, making PowerSafe TS batteries a perfect low-maintenance solution for remote or unmanned locations.
Advantages of the PowerSafe TS range:
- Extensive range of models: from 300 to 4580Ah at 120 hours discharge rate (C120)
- Up to 5200 cycles at 25% DOD (depth of discharge)!
- They are delivered charged and filled with electrolyte.
- Excellent operational safety.

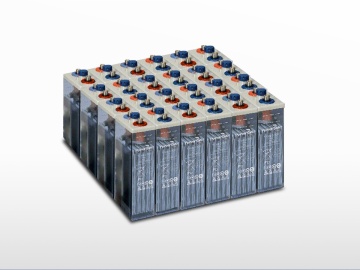

It is usually used in inserted systems of 12, 24 or other even number of cells, depending on the desired final voltage. For these situations, the cells are delivered with the related connectors.
PRODUCT DETAILS:
Brand/Manufacturer: EnerSys© PowerSafe©
Range: PowerSafe TS - batteries with very high number of cycles, with low maintenance
Made in: European Union (Poland)
Product coding: TVS 6 / TVS6 / 3B03106
Technology: Lead-Acid, with low maintenance
Housing: Transparent plastic (SAN - styrene acrylonitrile), for easy visualization of the electrolyte level / ABS cover
Electrodes: tubular positive plates
Electrolyte: sulfuric acid solution (requires annual refilling)
Separators: Low resistance microporous material
Nominal voltage: 2 V
Nominal capacity: 640 Ah (C120 hr 1.85 Vpc @ 25°C) / 470 Ah (C10 hr 1.8 Vpc @ 20°C)
Internal resistance: ~0.56 mΩ
Short circuit current: 3750 A (IEC)
Dimensions: 505 x 145 x 206 mm (h x L x w)
Average design life/ Number of cycles: up to 5200 cycles at 25% DOD (12000 cycles at 10% DOD, 3000 cycles at 50% DOD or 2000 cycles at 80% DOD)
Applications: renewable energy storage
Permitted operating temperature: -10°C... +45°C
Optimal operating temperature: +10°C... +30°C (e.g., the number of cycles decreases by 40% at a temperature of 42°C)
Terminals: 2 x M6 M (front terminal - terminals located in front on the short side; terminals with metric thread 6/female)
Standards and certifications: IEC61427-1:2013 / manufacturer certification ISO 9001
Weight: ~26.7 kg loaded-wet / 35.4 kg filled and loaded
Attention: this range is produced to order, and the delivery time is usually 6-8 weeks! Also, due to this fact, the price may be changed by the manufacturer depending on the quantities. At the time of order, we will confirm the price and delivery time. Thank you for your understanding.
