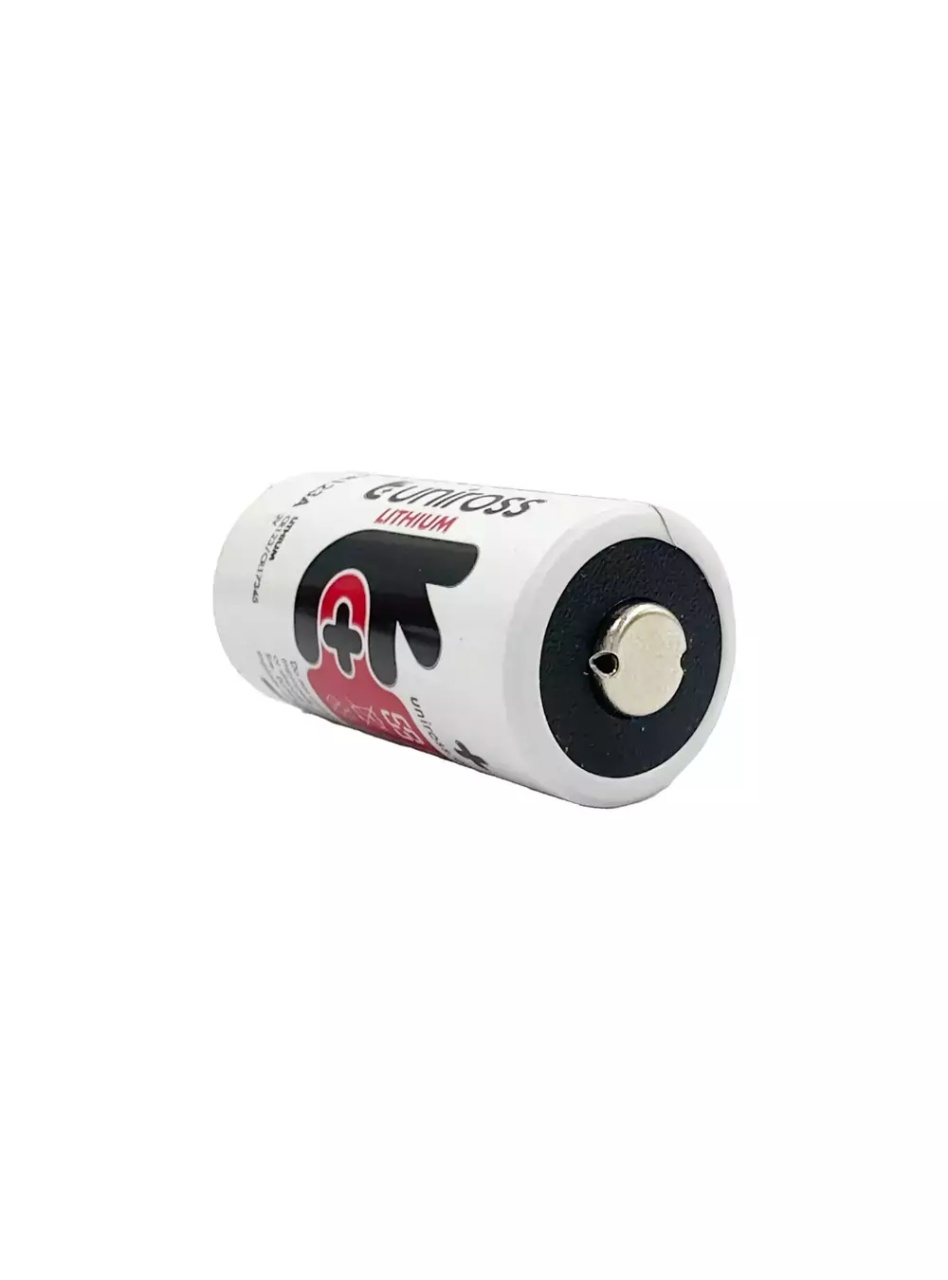

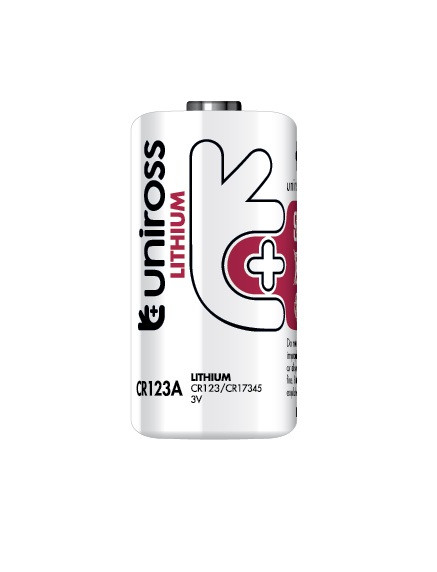

Uniross CR123 industrial battery 3V 1500mAh

Description

Uniross CR123A lithium battery, industrial version of very good quality (bulk), used mainly in the photographic field, but also with applications in various professional flashlights, measuring devices, meters, etc.

The industrial version is recommended especially in professional applications, where connections in cell assemblies or the installation of protection or connectivity elements are required.

PRODUCT SPECIFICATION:

Brand: Uniross (France)

Manufacturer's code: UICR123A-S

Equivalent codes: CR123 / CR123-A / CR123A (S) / CR17345

Battery type: Lithium - non-rechargeable battery

Nominal voltage: 3 V

Nominal capacity: 1500 mAh [ 20 mA~1.5V ]

Maximum current: continuous 1500 mA / pulse 3000 mA

Final discharge voltage: 1.5 V

Working temperature: -40°C... +70°C

Life/Storage life: 10 years

Uses: cameras, testers and measuring and control devices, digital meters, medical equipment, etc.

Size: standard CR123-A, diameter = 16.5 mm (± 0.3 mm), length = 34 mm (± 0.5 mm)

Terminals: standard, button type; terminal ⊕ has a height of (protrudes) 1.3 ± 0.3 mm / terminal – is flush with the battery.

Weight: 17 grams

Packaging: bulk - industrial battery (without individual packaging)

On request, connectors (nickel blades, LIY wires, etc.) can be supplied - request a quote here.

 WARNINGS:

• Do not connect more than 3 cells in series/parallel. Any assembly of such batteries should only be done by specialized personnel.
• DO NOT recharge! (they are batteries, not rechargeable batteries)
• Do not short-circuit, do not over-discharge, do not disassemble, do not throw into liquids or fire and strictly observe the polarity - risk of explosion or injury.
• Do not throw away used batteries. Hand them over to authorized collection centers (such as CCR Rebat containers located in large stores)
