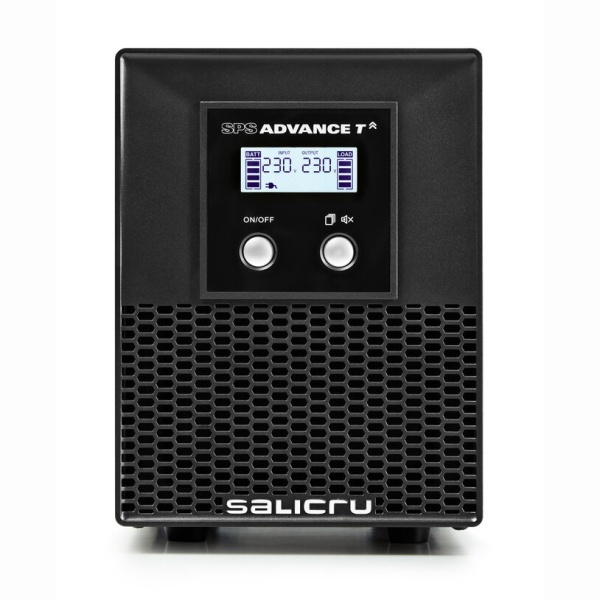

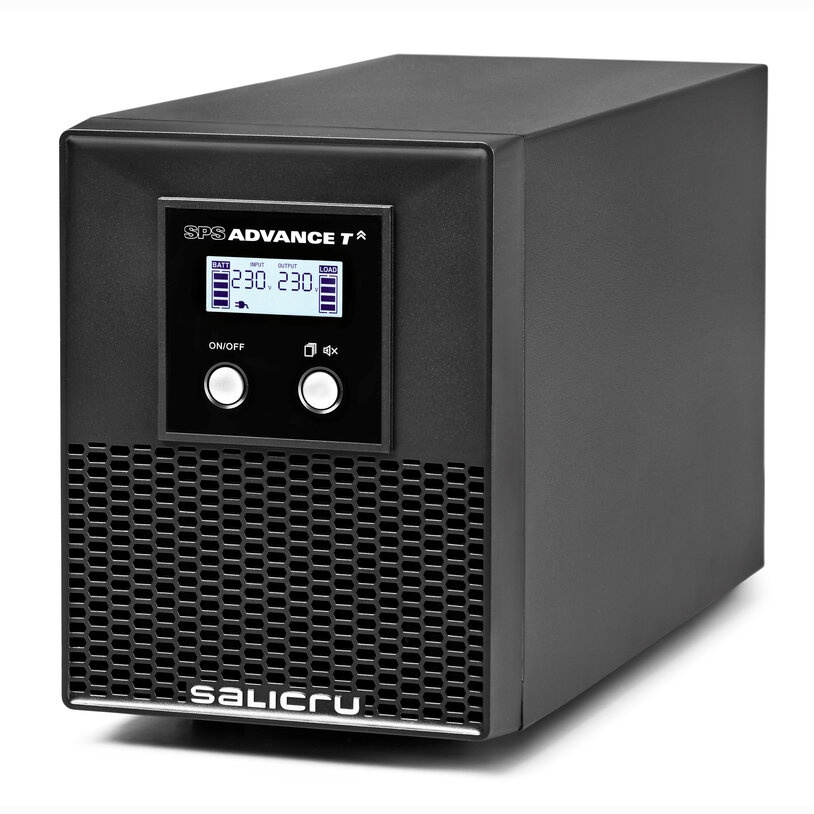

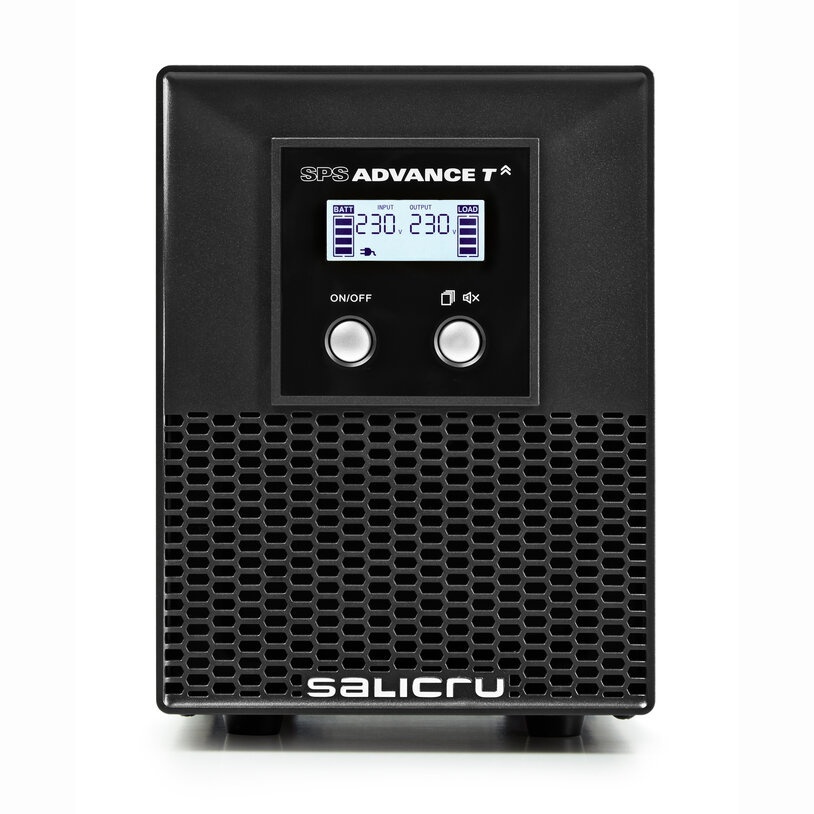

Salicru SPS Advance T 2000VA Pure Sine Wave UPS

Description

SPS ADVANCE T

Pure sine-wave line-interactive UPS between 850 VA - 3000 VA. In Tower format, ideal for computers, even thermal power plants

The SPS ADVANCE T series from Salicru - Spain offers, as a UPS solution, optimal levels of efficiency and reliability for all critical devices that require continuity and reliability of the power supply. They come in a very compact tower format to save space in server and computer rooms. They also feature Line-interactive technology to combat any fluctuations in the power supply network together with an output voltage that is always sinusoidal, the highest possible quality to power all sensitive loads. For easier and more convenient use, they feature a display that shows all the necessary information about the operation of the device and the power supply (input/output voltage, % load, % battery, etc.) and a wide range of communication options via USB interface with HID protocol, monitoring and management software (downloadable) and integrated network slot (SNMP). Also noteworthy is their compatibility with current APFC (active power factor correction) power supplies. The power range available for the SPS ADVANCE T series is: 850, 1,000, 1,500, 2,000 and 3,000 VA.

Applications

Reliable electrical backup with high availability.

Salicru's SPS ADVANCE T series UPSs offer an optimal combination of features to protect all computer room equipment, from entry-level servers, routers, switches, hubs, network devices and access points, to backup systems and solid fuel boilers (for boilers, the need to extend the autonomy with external batteries will be taken into account, because the internal batteries that come standard offer limited autonomy, sufficient only to save data and safely shut down computers; additional battery modules are available on models from 1000VA).

Ideal for office environments. Combines Off-line technology with an internal voltage stabilizer to better compensate for voltage fluctuations and avoid higher battery usage and thus extend battery life.

This UPS system provides a clean, high-quality output voltage with a pure sine wave. This feature is particularly suitable for use with sensitive loads and guarantees optimal operation for connected devices.



• USB interface with HID protocol: Parameter configuration, UPS control and computer shutdown/hibernation via USB port. Available for Windows, Linux and Mac.
• UPS management and monitoring software for closing files/applications for Windows, Linux, Unix and Mac. Free and downloadable from www.salicru.com
• Smart slot for connecting SNMP environment integration cards and signal cards via potential-free contacts or Modbus protocol.

TECHNICAL SPECIFICATION:

Brand/Manufacturer/ Responsible Entity in the EU: Salicru / Salicru S.A. Spain, Barcelona, ​​Avda. De la Serra, 100 - 08460 Palautordera, catalunya@salicru.com

Importer: Sprinter2000 is a direct importer and representative in Romania for Salicru Spain

Product type: UPS Line-Interactive Sine-wave in Tower format, Stand Alone type

Range and model: SPS ADVANCE T / model SPS 2000 ADV T

Manufacturer code: 6A0EA000004 / EAN 8436035923731

Compatible devices: Laptop, PC, server, TV, Audio equipment, Video consoles, DVD, Monitor, WiFi Router, 3G-5G Modem, Ethernet Switch, Automation (Home Automation), HDD, NAS, ONT (Optical Node Termination), IP surveillance cameras, Alarms, Sensors, heating plants, other applications of this kind.

Technology: Line Interactive

Power Factor (PF): PF = 0.7

Rated Power: 2000VA-1400W. Other variants available in the SPS ADVANCE T range:

Nominal input voltage: 230 V, 50/60 Hz (autodetection)

Admissible input voltage: 165... 290V

Stabilization: AVR Buck &Boost

Protection: Yes - Resettable switch

Output voltage: 230V 50/60Hz (same as input)

Output voltage accuracy in battery mode: ±10%

Total harmonic distortion (THDv): <5%

Waveform (in battery mode): Pure sine wave

Frequency accuracy (in battery mode): ± 1Hz

APFC compatibility: Yes

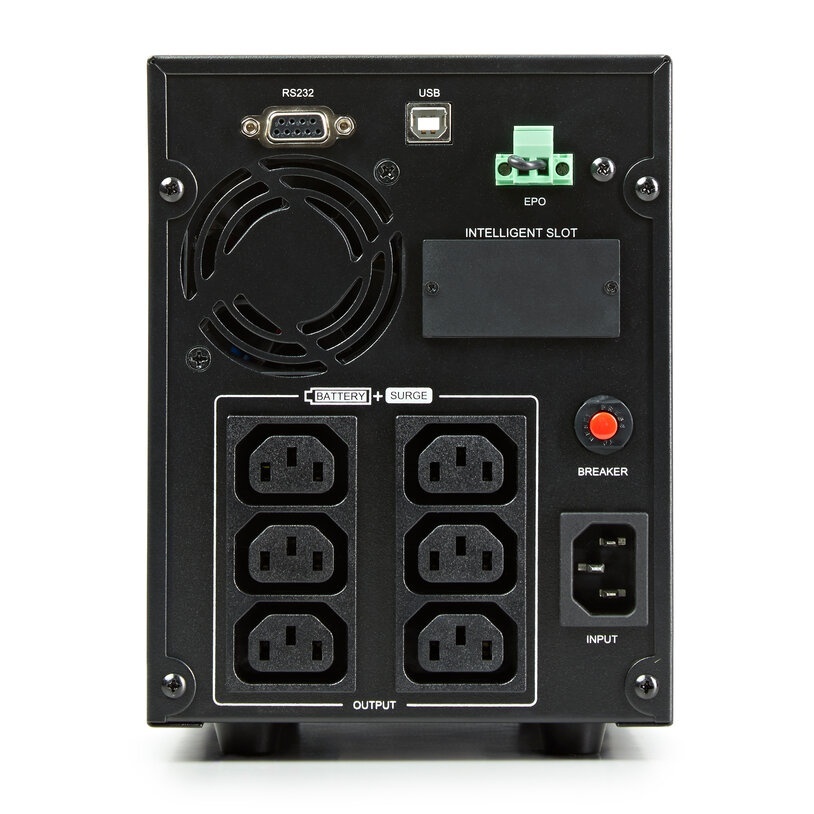

Type and number of output sockets: 6 IEC C13 sockets

Performance in stabilization mode (AVR): >92%

Performance in battery mode: >80%

Admissible overload in battery: 110% for 1 minute / 130% immediately

Overload in In-Line mode: 110% for 1 minute / 120% immediately

Battery: Pb-Ca AGM maintenance-free included. Internal battery included: 2 x (12V 9Ah).

Battery charging type: I/U (constant current/constant voltage)

Battery protection: deep discharge and overcharge

Recharge time: 4 hours to 90% of capacity

Battery test: Automatic at each start-up / Manual

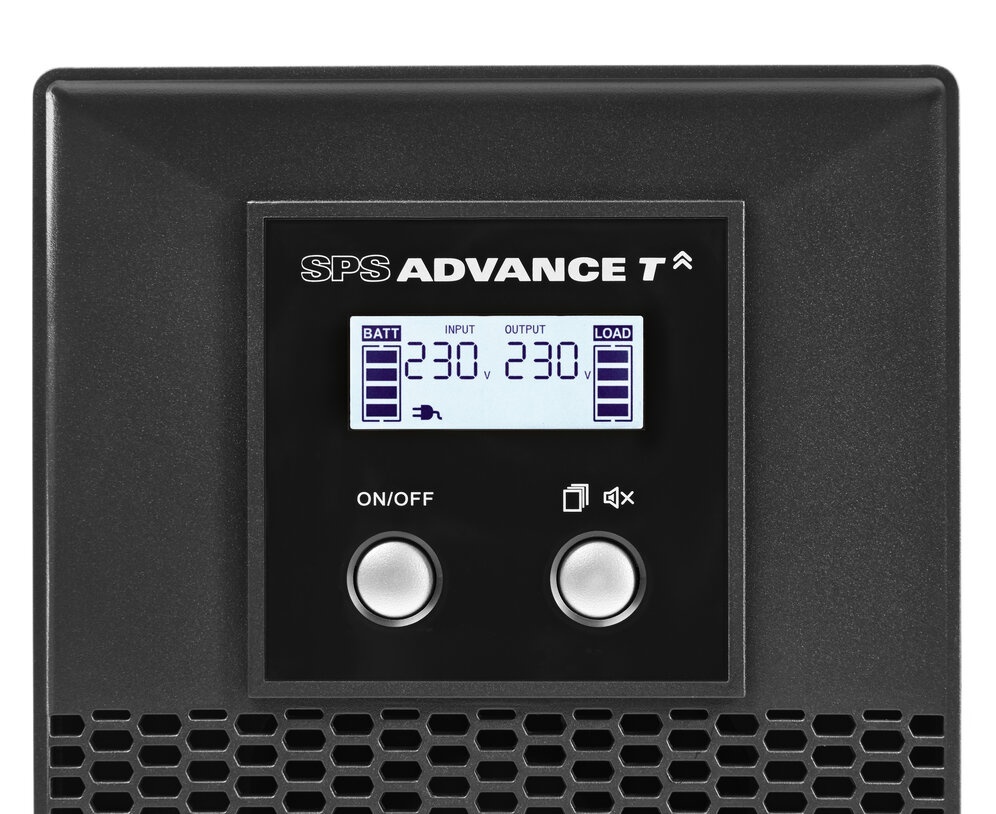

Indicators and keys: LCD display + Keypad. Displayed values: input/output voltage, % load, % battery charge, backup. Displayed level: connected load, overload, battery operation, discharged battery

Alarms: low battery, battery operation, overload, error

Noise level (alert) at 1 m distance: <45 dB

Communication ports: USB (HID protocol) / RS232

Smart slot: Slot for SNMP / MODBUS / potential free-contacts

Monitoring software compatibility: for Windows, Linux and Mac

USB charging ports: No

Mounting: Stand alone tower

Functions: Cold start (battery start) / Emergency power off (EPO) / USB communication port with HID protocol / Voltage stabilization / Pure Sine Wave

Operating temperature: 0ºC ... +40ºC

Humidity: up to 95% non-condensing

Maximum operating altitude: 2400mASL

Cooling: Yes - with fan included

Applicable standards: safety EN62040-1 / Electromagnetic compatibility (EMC) EN62040-2 / Operation EN 62040-3 / Manufacturer certifications ISO 9001, ISO 14001, ISO 45001

Weight: ~14.2 kg

Dimensions: 327 x 140 x 191 mm

Package contents: UPS SPS ADVANCE T / Quick start guide (English) / International warranty certificate (English)

Commercial warranty for individuals: 24 months from the date of purchase.
