Peli 2690Z0 HeadsUp Lite IPX7 Headlamp

The best-selling professional Antiex lantern, the Peli™ 2690Z0 HeadsUp Lite™ is a professional ultrabright LED headlamp certified for use in explosive dust or vapor environments (ATEX Z0 certified) and water resistance (IPX7 water proof - limited time underwater resistance).

The Peli 2690Z0 is one of the few flashlights certified for mining and dust explosion hazards, with markings on the product including:

 I M1 Ex ia I Ma

II 1G Ex ia IIC T4 Ga

II 1D Ex ia IIIC T65°C Yes

PRODUCT SPECIFICATION:

Brand/manufacturer: Peli™ / Pelican Products Inc. U.S.A.

Product code: Peli 2690Z0 / long code 026900-0102-110E

Range: HeadsUp Lite™, very robust professional headlamps, including certificates for use in potentially explosive environments. For wearing on the head or on a protective helmet.

Field of use: Refineries, gas stations, ADR transport, mining, speleology, public network interventions (sewerage, water, gas, electricity, telephony and internet - especially where the channels are shared with the gas networks!), emergency interventions, etc.

Light source: 1 x LED with an average lifespan of 10,000 h.

Material: Polycarbonate (body and lens) antistatic, impact resistant / EPDM O-ring / Polycarbonate lens

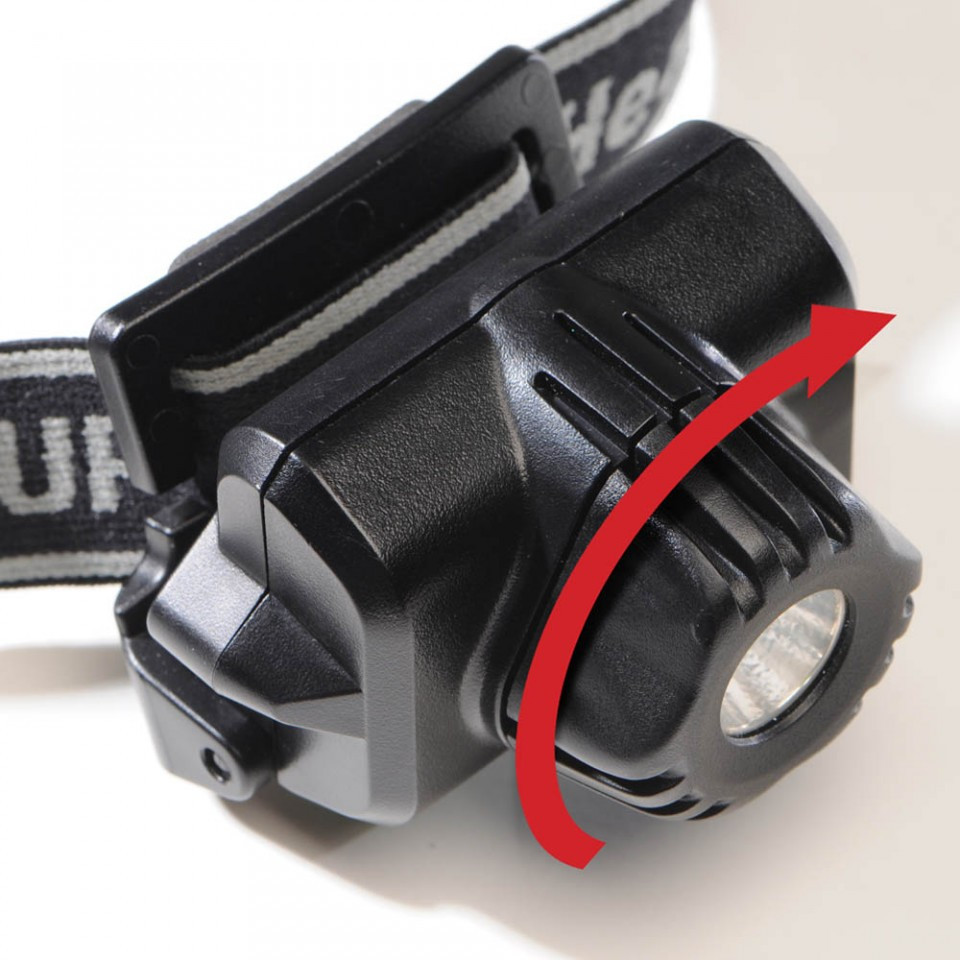

Switch: rotary, allows rotation with one hand and use even with thick protective gloves

Operating modes: On / Off

Luminous flux: 74 lumens

Luminous intensity: 2124 cd

Visibility: 92 m

Power supply: 3 x alkaline batteries type AAA / LR3 (batteries included). The ATEX certification of the product is only valid when used with alkaline batteries Panasonic PN LR03 (Xtreme Power), Duracell PN MN2400 and Energizer PN E92! New batteries and used ones will not be mixed in the flashlight. The battery compartment will only be opened in a non-hazardous environment and must be secured with the two screws during use.

Working voltage: 4.5 V

Length of flashlight: 7.1 cm

Autonomy: 11 h (autonomy depends on the type and quality of batteries and the temperature/environmental conditions)

Water and dust resistance: Yes, IPX7 certified for water and dust tightness (guaranteed to withstand short-term accidental immersion, up to 1m depth)

High temperature resistance: T65°C

Anti-ex: YES - Zone 0 (ATEX Z0 certified)

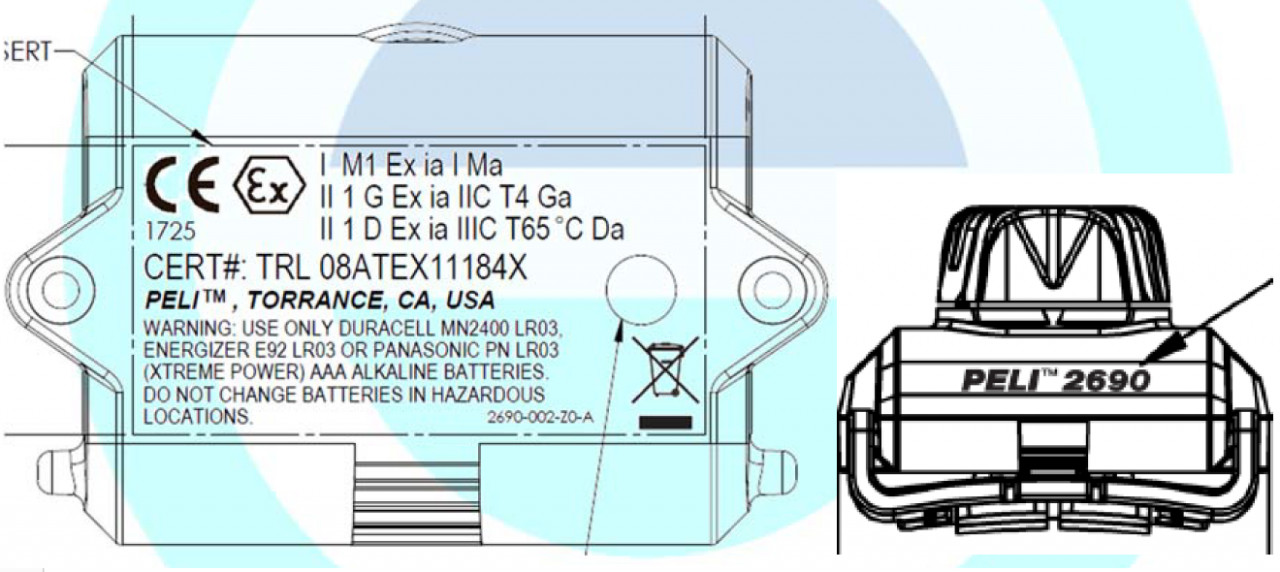

EX markings: EX I M1 Ex ia I Ma / II 1G Ex ia IIC T4 Ga / II 1D Ex ia IIIC T65°C Yes

Applicable standards: Directive 2014/34/EU - Annex III / EN 60079-0:2012+A11:2013 / EN 60079-11:2012 / EN 60079-26:2007 / EN 50303:2000

Certificate no.: TRL08ATEX11184X (var.V1 to V6)

Color: Black

Weight: 116.2 grams with batteries included / 79 grams without batteries

Note: The elastic headband can be replaced later if it becomes damaged or dirty, and can be ordered separately here.

 Do not throw away used batteries. Please give them to authorized collection centers.
