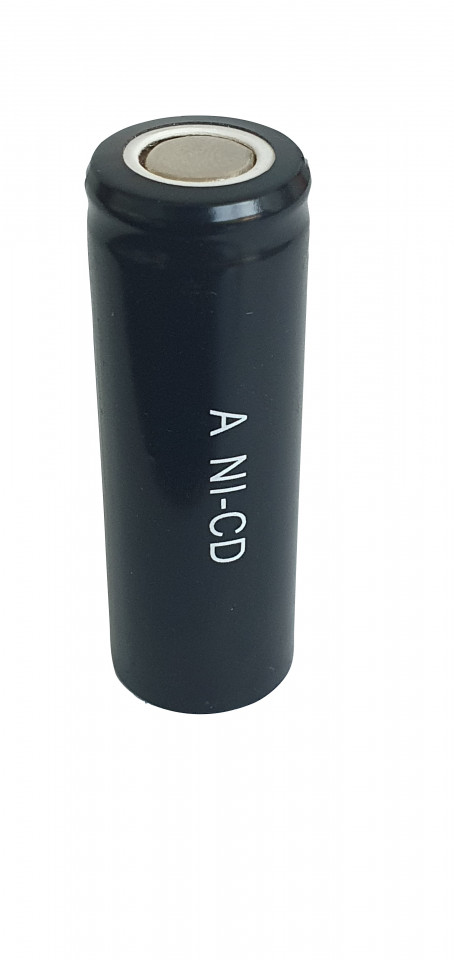

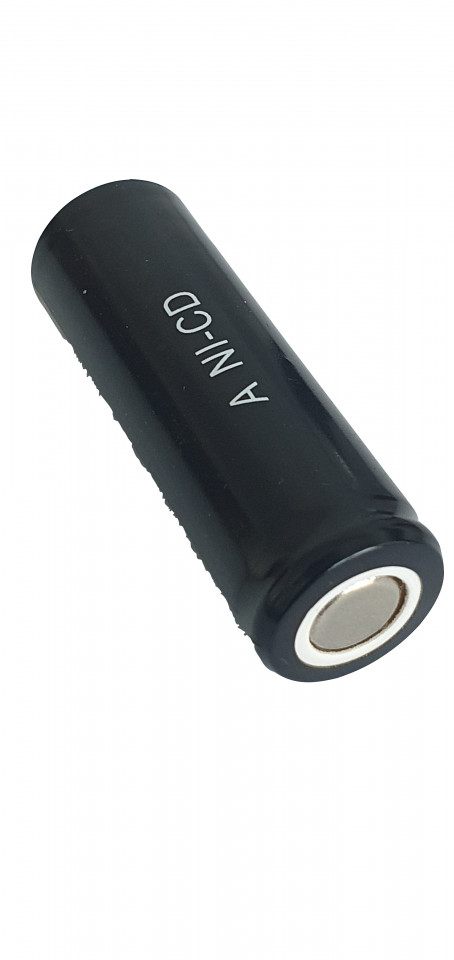

Ni-Cd A 1.2V 1400mAh JJJ Battery

Description

Ni-Cd cells for industrial use, format A, 1.2V and 1400mAh, used in various assemblies, usually in safety lighting or medical equipment. Optionally, we can mount nickel terminals, LIY cables or we can make various assemblies according to the customer's specification. For such assemblies, request a quote here.

TECHNICAL SPECIFICATION:

Manufacturer: JJJ

Country of origin: China

Product coding: J-A1400

Equivalent codes: A 1400

Tariff code: 85073020

Type: NiCd

Manufacturer coding/equivalent codes: A

Nominal voltage: 1.2V

Open circuit voltage: 1.25V in 1 hour from standard charge

Nominal capacity: 1400mAh

Internal resistance: ≤20mΩ

Standard charge: 16 hours at 140mA (0.1C) at 20°C±5%

Fast charge: 2.4 hours at 700mA (0.5C) at 20°C±5%, ΔV=0~15mVpc, timer cut-off=120%C, temp.cut-off=55°C, dT/dt=0.8°C/min.

Standard discharge: 280mA (0.2C) at temperature 20°C±5%, humidity max.85%

Cut-off voltage: 1.0V

Number of cycles: ≥500 cycles according to IEC61951-1(2003)7.4.1.1

Storage temperature: 20-30°C (1 year) / 20-40°C (6 months) / 20-60°C (1 week)

Dimensions: standard format A, L = 49 mm (± 0.5 mm), Diameter ∅ = 16.6 mm (± 0.1 mm)

Plus terminal height: 0.5 mm

Weight: ~29.5 grams

Packaging: Industrial, BULK (without individual packaging)

 Warnings: Do not disassemble, do not throw in fire, do not throw in the trash. Hand in used batteries only at authorized collection centers or in the collection bins in large stores.
