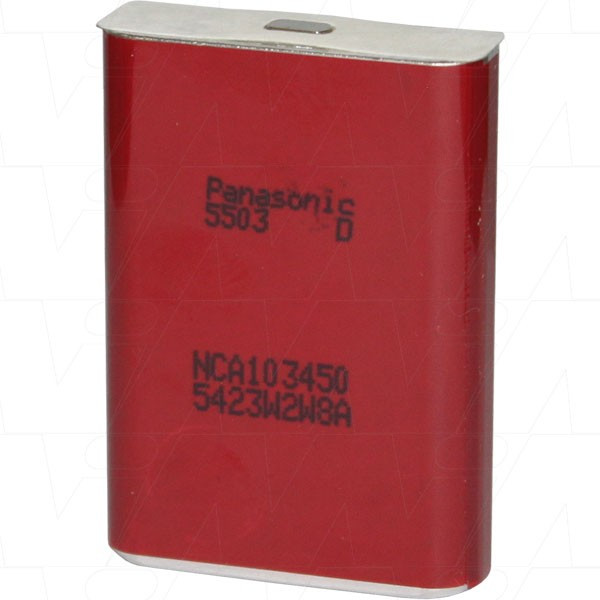

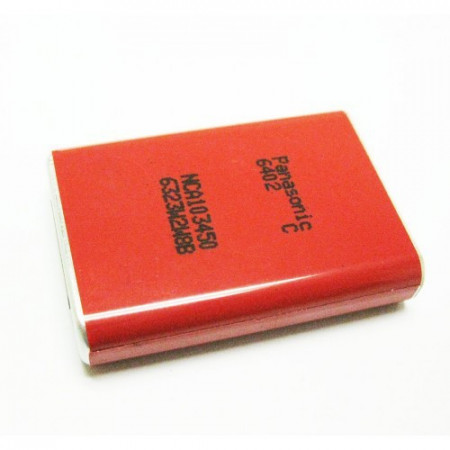

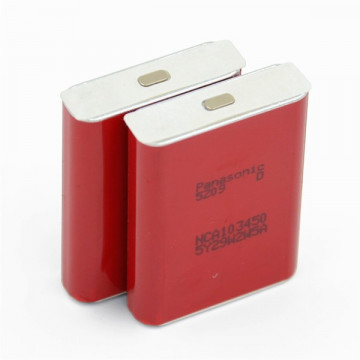

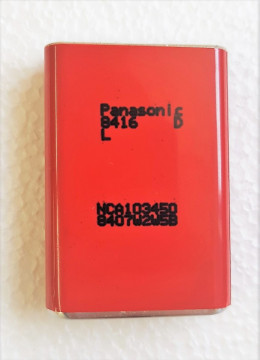

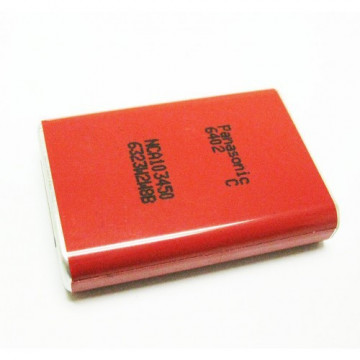

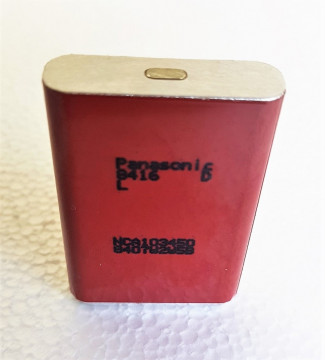

Li-Ion Panasonic battery NCA103450 3.6V 2270mAh

Description

Lithium-Ion Panasonic® prismatic battery type NCA103450, of 3.6-3.7V and with a capacity of 2200mAh used in professional applications (batteries of radio stations, mobile phones, satellite phones, GPS, etc.), Being very light and capable it also works at extreme temperatures, it can also be used for model aircraft, drones, etc.

PRODUCT SPECIFICATION:

Brand/Manufacturer: Panasonic®

Country of Origin: China

Model/Equivalent Codes: NCA103450 / ILR103450AR / HW-103450 / 103450 / BJ-CD00010AA

Uses: In various equipment, including various assemblies. It must be used and assembled by qualified personnel, using protection circuits (PCM / BMS), depending on the specification of the equipment and the desired assembly. Upon request, we can make various assemblies according to the customer's specification or model. You can request a quote here in this regard, providing all the necessary information.

Product type: Li-Ion battery in prismatic format

Nominal voltage: 3.6 V

Nominal capacity: 2270 mAh (2.27 Ah) / 8Wh U30

Charging voltage: 4.2 V

Charging current (standard): 1590 mA

Charging time: 3 hours

Operating temperature (discharge): -20 / +60 degrees Celsius

Cycles: up to 1000 charge-discharge cycles

Dimensions: 10.5 x 33.8 x 48.8mm (maximum)

Weight: 38.4 grams

Packaging: Bulk (without individual packaging, product for professional applications). The photos illustrate the actual product, exactly as it will be delivered.

The assembly of these cells should only be done by specialized personnel. Manual soldering with a soldering gun/hammer directly on the battery terminals is prohibited.

 Warnings: Do not throw into fire, do not short-circuit, do not throw into the trash after use. Hand over used batteries only to authorized collection centers (such as waste battery collection bins in large stores)
