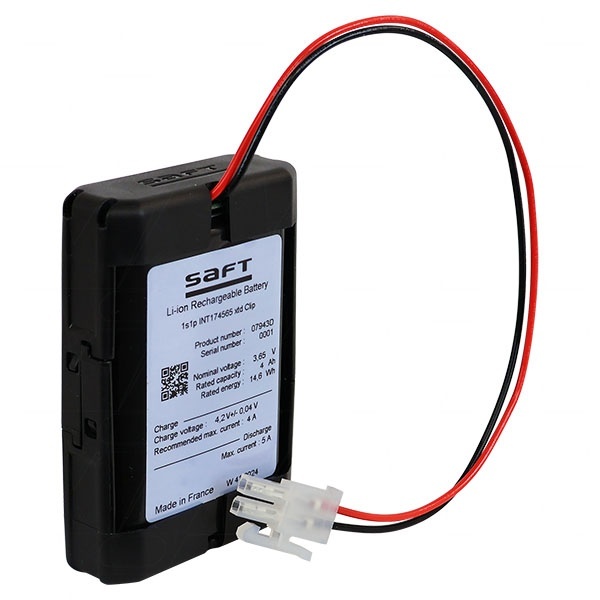

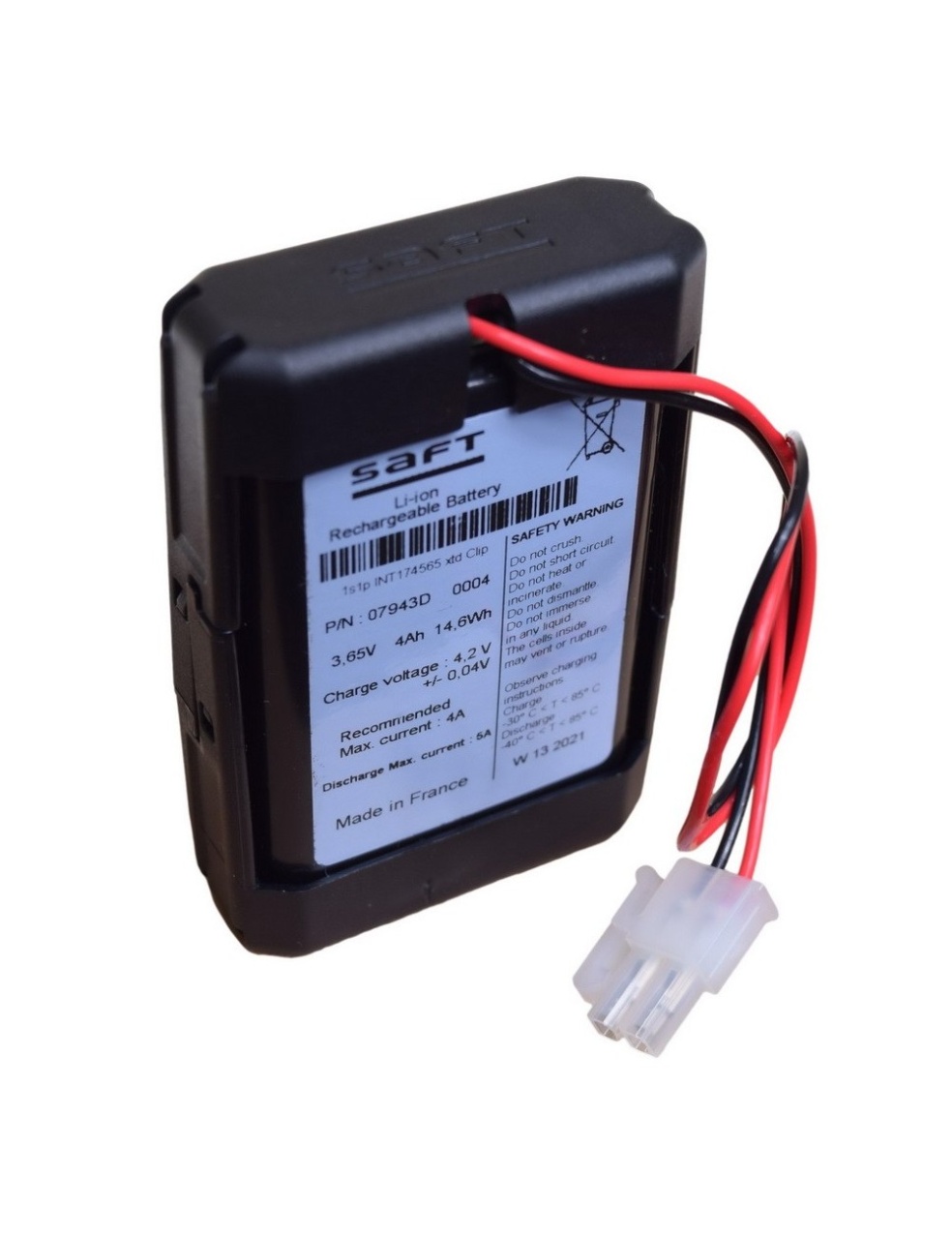

Li-Ion battery Saft MP174565xtd Clip System 3.65V

Description

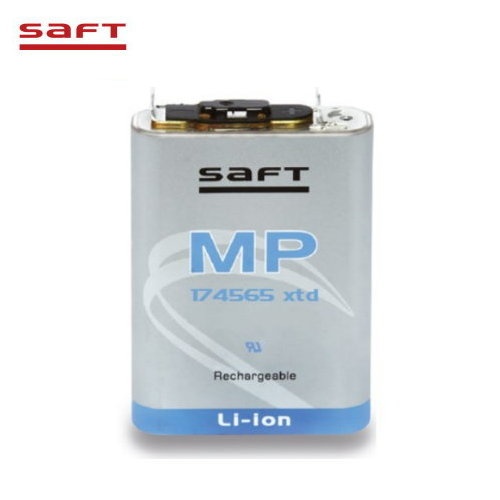

The Saft™ MP 174565 xtd ClipP System 1s1p rechargeable battery withstands all the extreme operating conditions of the cell, plus it has its own mechanically integrated housing system. Made in France to withstand harsh environments, it withstands over 2700 cycles at 100% DoD and float charge conditions.

It has no rival in the operating temperature range: -40... +85°C! It also ensures a high level of security and is compatible with potentially explosive environments (gases, dust). It has a low carbon footprint compared to other technologies, is easily integrated into equipment and offers an extremely low self-discharge rate (during storage).

With multiple quality and safety certifications, it is used in the fields of: medical equipment, tracking, oil and gas, IoT, wireless sensors, lights and signaling, backup for industrial equipment, etc.

PRODUCT SPECIFICATION:

Brand/Manufacturer: SAFT France, member of Total Group, France

Model: MP174565xtd Clip System 1s1p

Manufacturer code: 07943D

Chemistry: Lithium-Ion

Material and technology: Stainless steel, hermetically sealed, maintenance-free and memory-free

Applications: Industrial and medical equipment, oil industry, Internet of Things, wireless sensor networks, GPS tracking, automotive, emergency lighting and signaling

Nominal voltage: 3.65 V

Nominal capacity: 4000 mAh (4 Ah) C/5 rates, +25°C, 2.5V cut-off

Nominal power: 14.6 Wh

Energy density: 264 Wh/dm3 / 150 Wh/kg

Maximum recommended discharge current: 5 A continuous (1.25C)

Cycles charge-discharge: ≥ 2700 at 100% DoD

Charging current: 4.2V±0.05V with maximum 4A (1C rate)

Charging method: Constant current/Constant voltage

Under-voltage threshold: 2.5V cut-off voltage

Operating temperature: -30°C... +85°C charging / -40°C...+85°C discharging

Storage and transport temperature: -40°C... +85°C / optimum +15°C...+30°C

Applicable standards: Safety UL 1642 and IEC62133 Ed.2 / Transport UN 3480, UN 3481 / Medical ISO 13485 / Quality ISO 9001, Saft World Class / Environment ISO 14001, RoHS, REACH

Dimensions: 51 mm x 21 mm x 75 mm (width x depth x height), including housing

Weight: ~116 grams

Packaging: Bulk (industrial product, without individual packaging)

 Being a dual-use product, we reserve the right to request documents regarding use and to refuse orders from individuals or even commercial companies, depending on the result of the document analysis.

 Warnings: Do not short-circuit, do not throw into fire, do not throw into the trash after use. Hand over used batteries to authorized collection centers (such as collection bins for used batteries in large stores)
