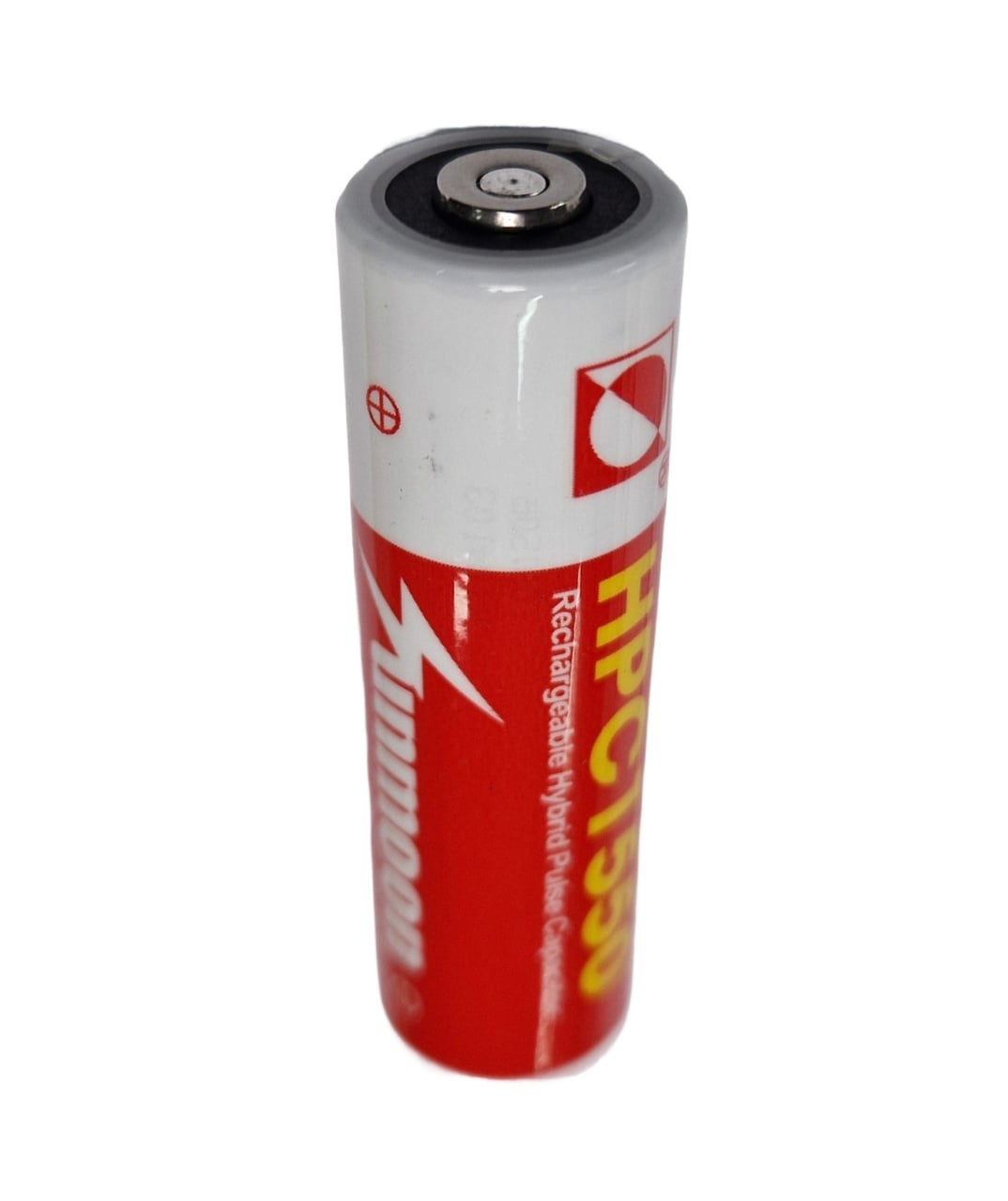

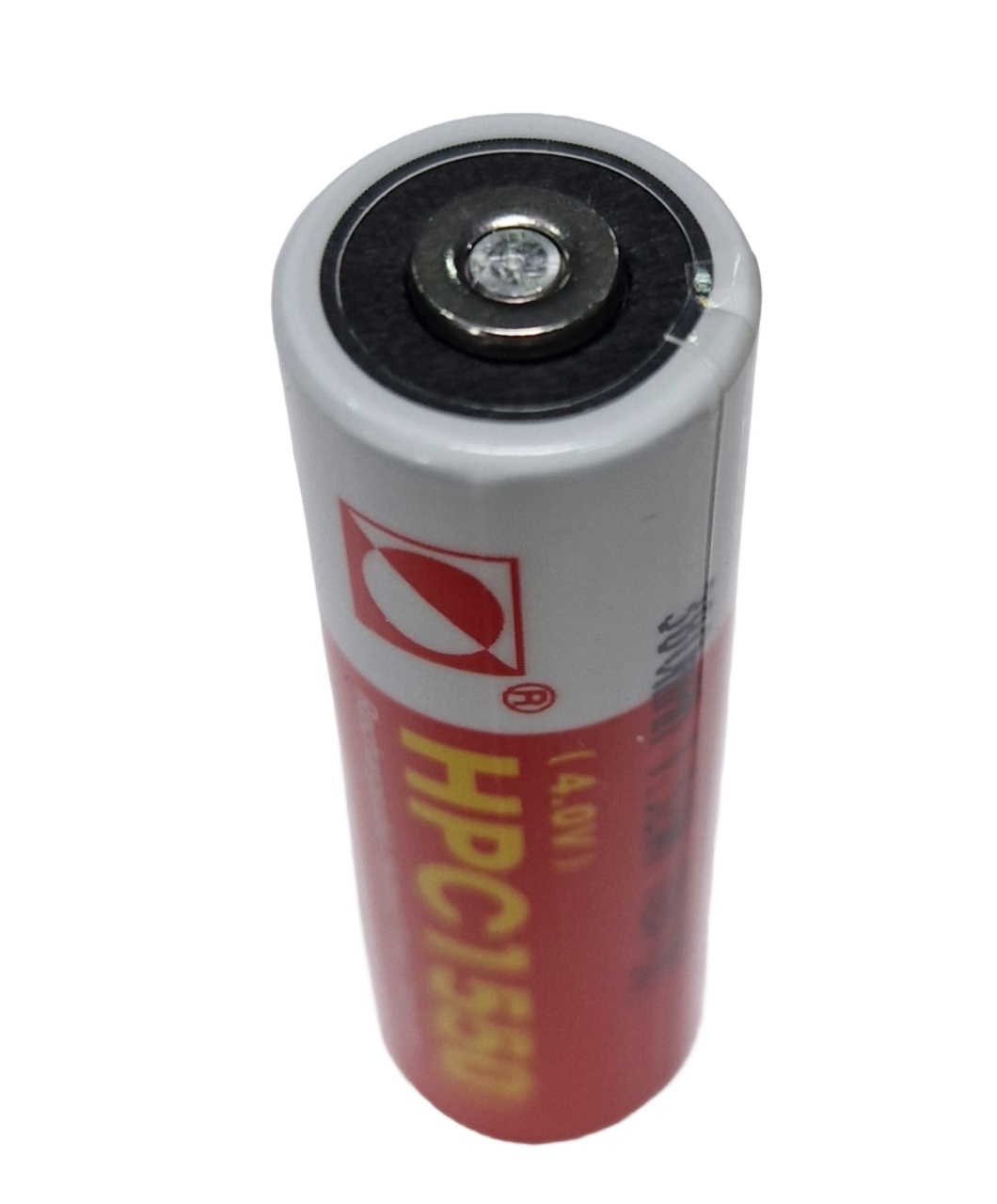

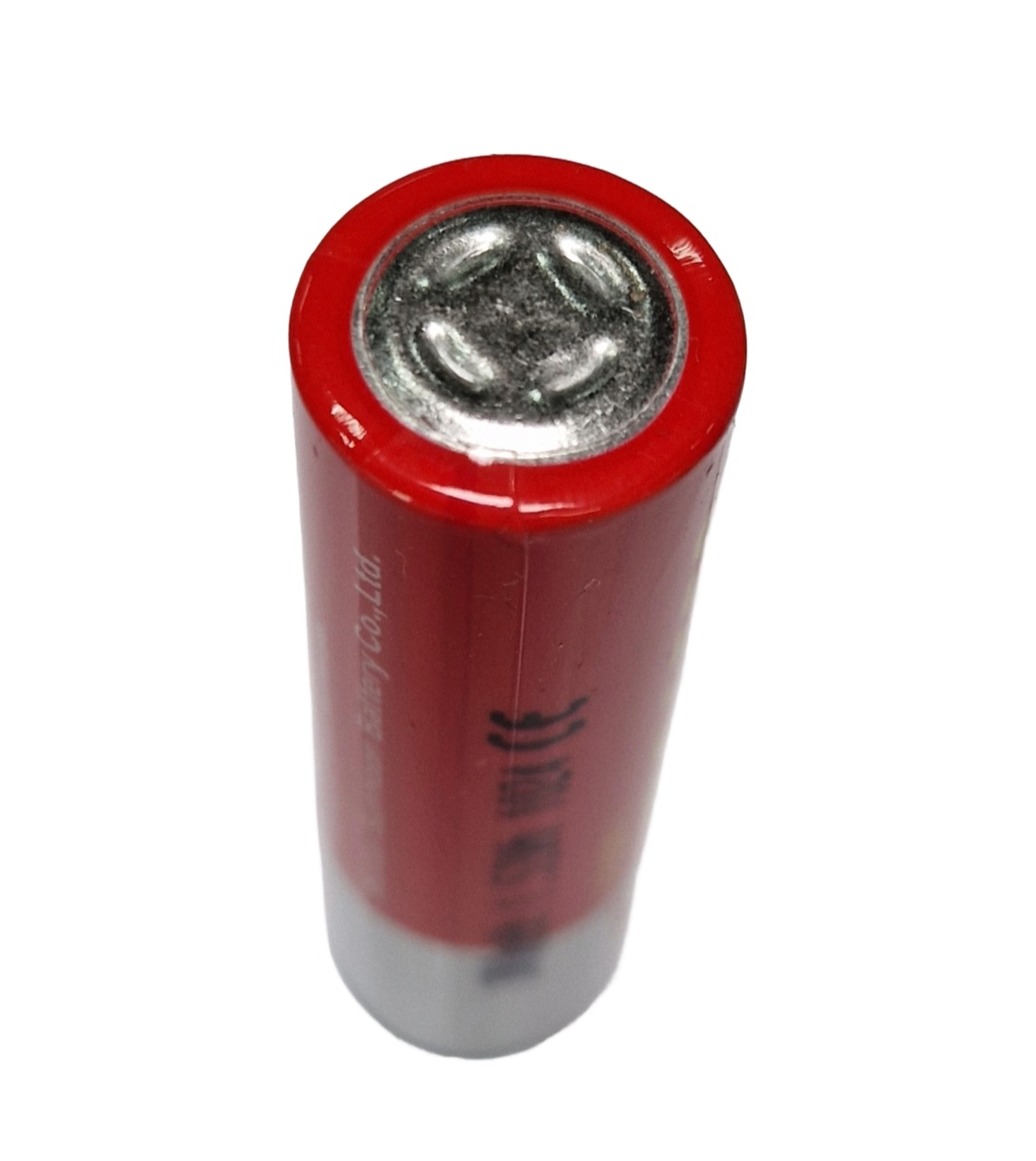

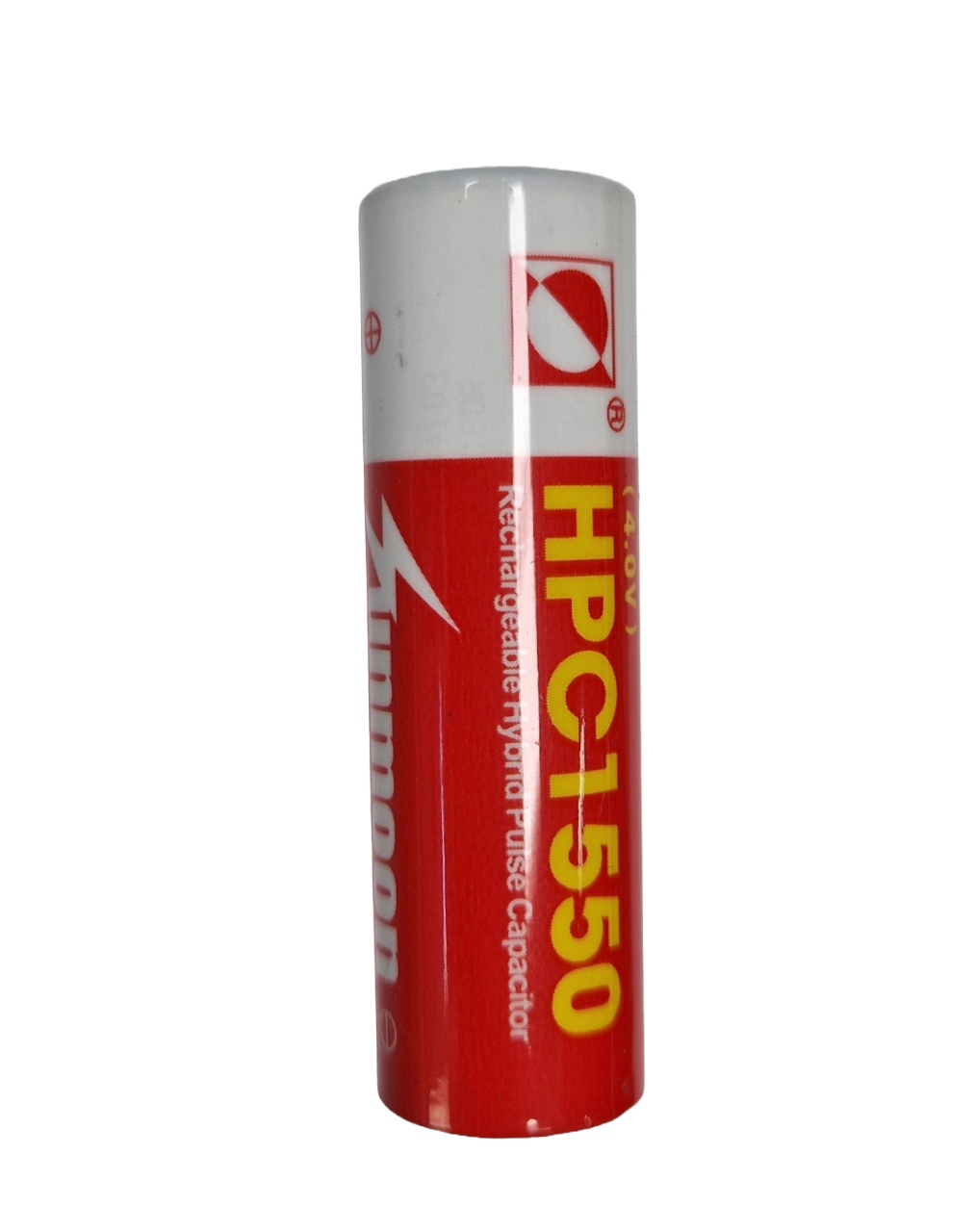

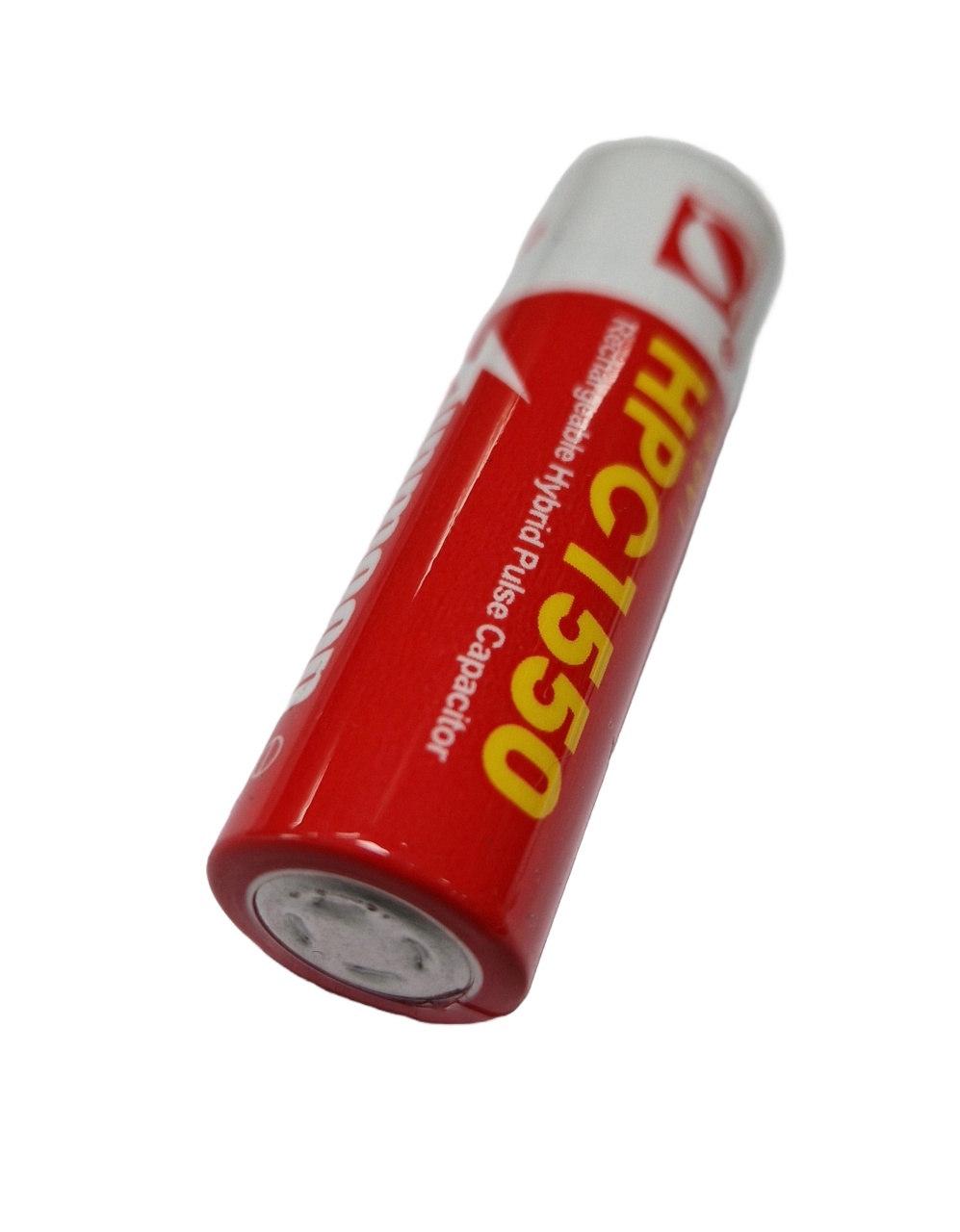

Hybrid pulse capacitor HPC1550 of 4V

Description

Hybrid Pulse Capacitors (HPC) are used in various energy, water and gas meters, tracking devices or other LoT/smart devices, when the space provided for the battery does not allow the choice of a large, high-pulse capacity battery. The capacitor's role is to increase the maximum pulse developed by the battery alone - this would also be possible by choosing a larger battery, but when space in the device is limited it can be a simpler and even cheaper solution than replacing the battery with a much larger one. Also, the weight of the capacitor is very low.

The capacitor is used connected in parallel with a lithium battery (lithium-thionyl or LiSOCl₂) typically used in GPS tracking/locator systems, digital meters, CNC memory, etc. where it offers very high autonomy in applications with low currents or pulse operation.

The capacitor mounted in parallel with a LiSOCl₂ battery increases the energy efficiency of the battery, but also prevents its passivation.

PRODUCT SPECIFICATION:

Brand/Manufacturer: Sunmoon/Voltec (China)

Product type: Hybrid Pulse Capacitor (HPC)

Capacitor code: HPC1550

Nominal Voltage: 4.0 V

Impedance: ≤ 50 mΩ

Nominal capacity: 720AS (180mAh)@3.67V / 1260AS (350mAh)@3.9V / 1368AS (380mAh)@4.00V

Maximum discharge current - pulse: 5000 mA

Maximum discharge current - continuous: 2000 mA

Cut-off voltage: 2.5V

Operating temperature: -40°C to +85°C

Maximum energy: 1.9Wh

Maximum dimensions: L = 20 mm, Diameter = 15 mm (1520)

Weight: ≤ 22 g

Packaging: bulk, in trays of 100 pieces (without individual packaging)

On request, it can be delivered with various terminals: spot-welded nickel blades, 2-color LIY wires, 2 pins, 3 pins, 4 pins. Request a quote and lead time for such terminals here.
