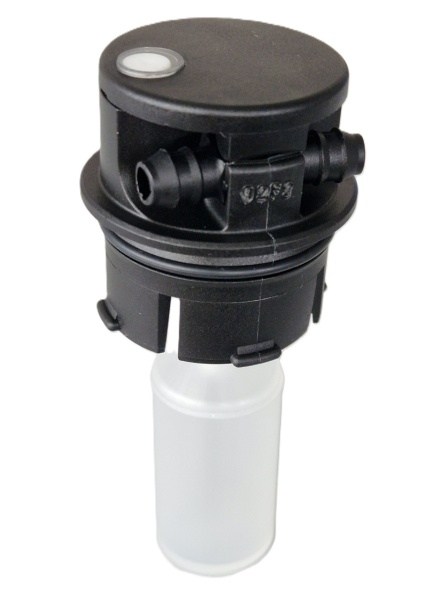

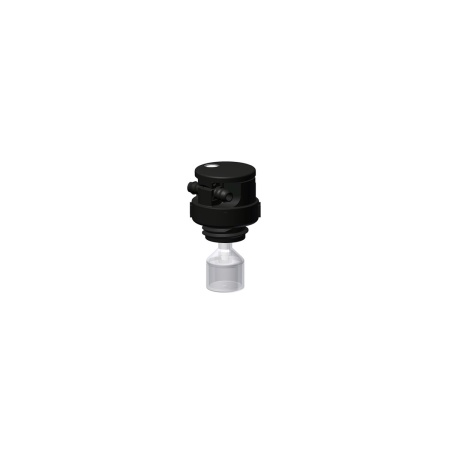

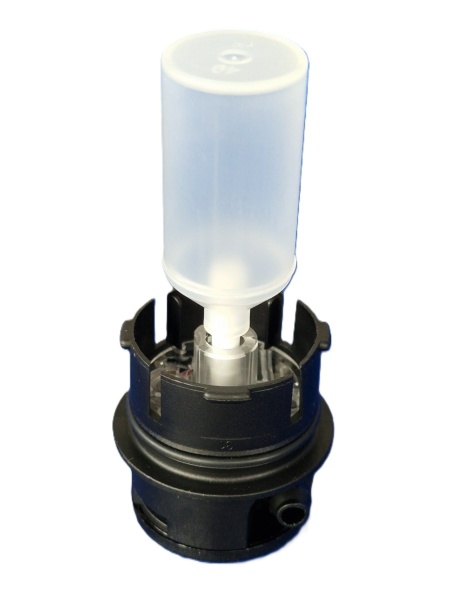

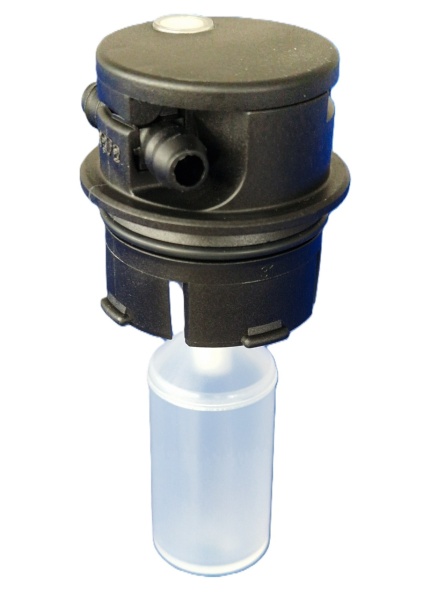

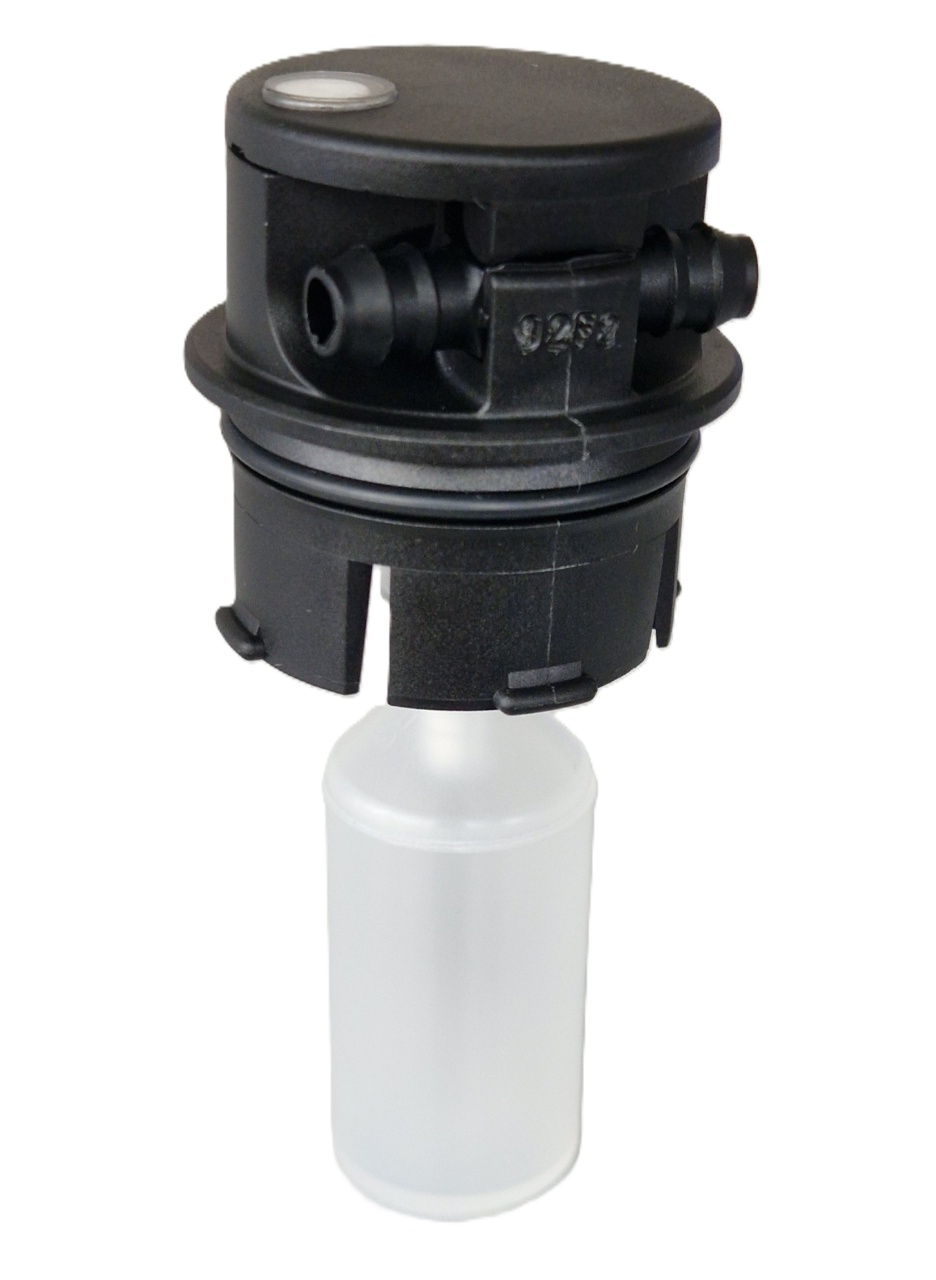

Float Plug AQUAFILL BFS III 072229 HPZS60 HPZS

Description

A variety of floats are available to accurately control the electrolyte level in the battery cell. Selecting and installing the right float is crucial to achieving the optimal fill level in the battery cell. Thanks to the wide range of options, you can adjust the perfect fill level for every battery type and every application.

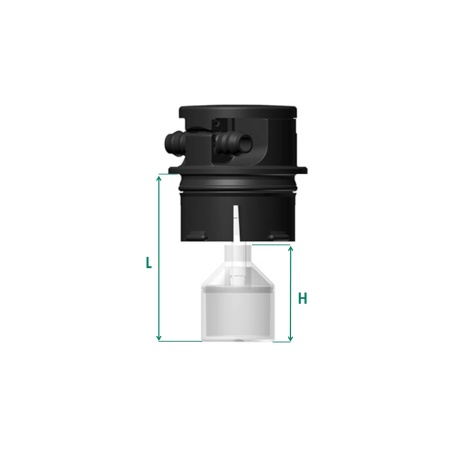

H = Height to which the float rises, or Total length of the clear plastic float - 20 / 29 / 34 / 49 mm

L = Distance from the upper edge of the cell opening to the lower edge of the float - 47 / 56 / 61 / 76 mm

(choose the desired option based on these available sizes)

PRODUCT SPECIFICATION:

Product range: Accessories for filling electrolyte into Lead-Acid battery cells

Manufacturer's name: Aquafill BFS III Stopfen - inkl. Schwimmer 49mm (Aquafill Stopper with Float)

Codes, dimensions and compatibility:

• 7245210384: H = 20 mm, L = 47mm / compatible with PZB32 and PZB42
• 7245210389: H = 29 mm, L = 56mm / compatible with PZS60 and PZS80
• 7245210387: H = 34 mm, L = 61mm / compatible with PZB90, PZS105, PZS115 and PZS125
• 7245210386: H = 49 mm, L = 76mm / compatible with PZS140 and PZS155

Carefully choose the desired option and the displayed price is automatically updated depending on the selected option. The price and delivery times may differ depending on the option.

The products are delivered to order from Germany in quantities of at least 50 pieces, usually within 12-20 days from the order. We will communicate the exact delivery time to you at the time of order.
