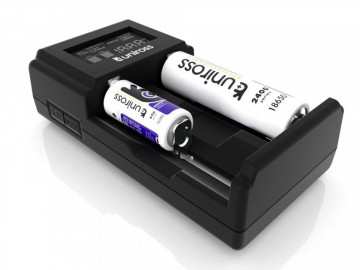

Charger Uniross Smartcharger Compact 3T

Description

Fast charger for all types of batteries, in terms of chemistry: NiMH, NiCd, Li-Ion, LiFePO₄. Dedicated especially to photographers, but also to other enthusiasts. It accepts a diverse range of cylindrical cell sizes, with lengths between 34 and 70mm. It has two charging slots with individual charging and monitoring and a microprocessor capable of automatically identifying the type of rechargeable battery and applying the optimal charging method.

It is equipped with a high-resolution LCD display, which shows all the details of the cell and the charge. It offers protection against wrong connection, short circuit, has time limitation and detects defective cells and negative delta V. It also stands out for the possibility of powering from two sources: USB and car socket.

Specification:

Brand: Uniross - French brand

Model: Smartcharger Compact 3T

Charger type: Fast and intelligent

Supported cells/chemistry: NiMH, NiCd, Li-Ion, IMR, LiFePO₄

Battery dimensions: cylindrical cells with a length between 34mm and 70mm, such as: AA or R6, AAA or R3, Sub-C or CS, C or R14 and D or R20; cells 17500, 14500, 10440, 16340 or RCR123, 17335 or CR123, 26650, 22650, 18650, 18490, 8350, 17670, 17650, or similar.

Input voltage: 5Vdc 2A micro USB (cable included) / 12Vdc 2.5A max. car cigarette lighter (cable not included)

Input jack type: Micro-USB / DC 5.5/2.5mm jack

Output voltage: 1.48V (NiMH or NiCd) / 4.2V (Li-Ion) / 3.7V (LiFePO₄)

Microprocessor: Yes, capable of identifying cell type and applying optimal charging mode

Number of batteries: 1 or 2, with individual charging and monitoring

Batteries included: NO batteries included (sold separately)

Charging currents: depending on chemistry: NiMH and NiCd - 1.48V 500mA; Li-Ion - 4.2V 500mA or 1000mA (selectable); LiFePO₄ - 3.7V 500mA or 1000mA (selectable)

Protection: Timer (10 hours), short circuit, reverse connection, defective cell, negative delta V.

Monitoring: on each cell, detects the cell type, monitors the voltage and charging current

Display: High resolution LCD, displays cell type, voltage, charging current, charging and charging completion, errors.

Accessories included: USB-A to Micro-USB power cable (90cm).

Operating temperature: 0°C...35°C

Dimensions: 130 x 68 x 38.5(h) mm

Commercial warranty: 2 years

 Exemplary photos for how to use. The product is sold WITHOUT batteries included!
