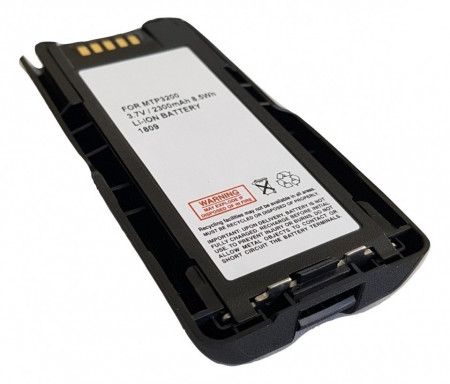

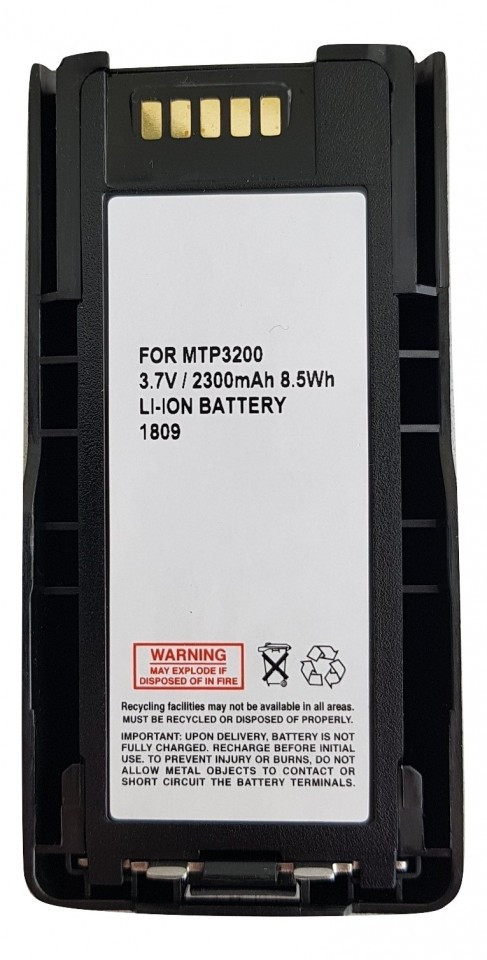

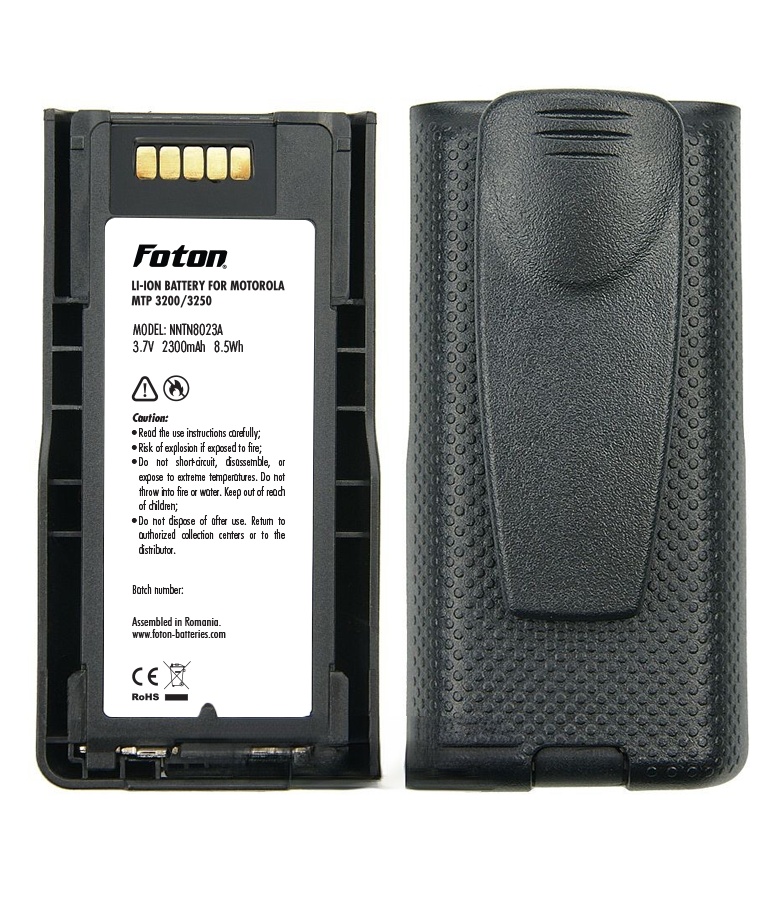

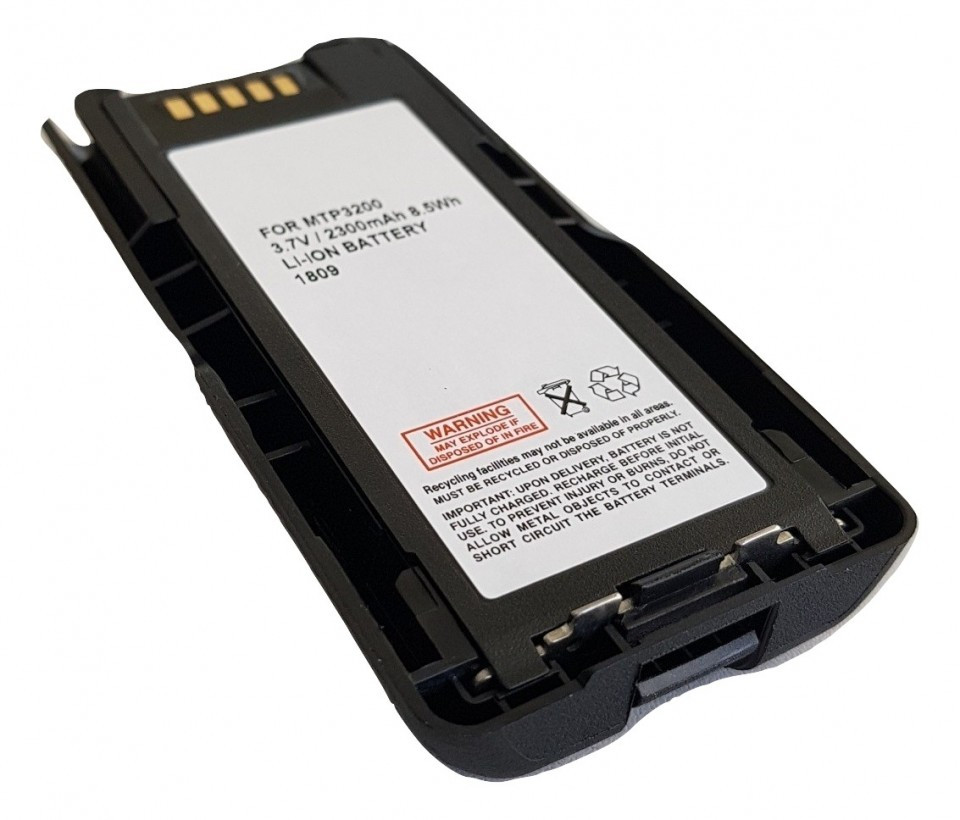

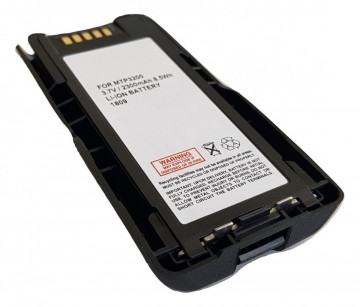

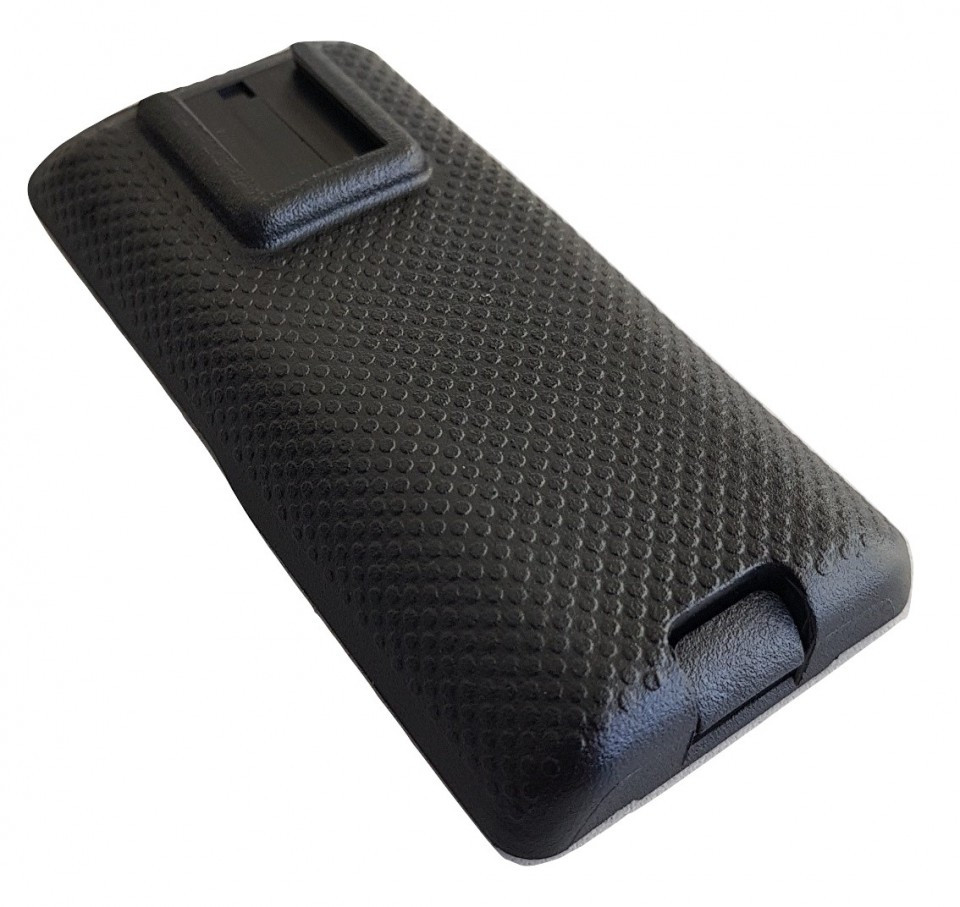

Battery NNTN8023 for Motorola MTP3200/MTP3250/MTP3550

Description

FOTON™ accumulators for emission-reception stations - are accumulators compatible with the emission station model indicated in the description, imported directly by Sprinter2000. The ABS case is glued by ultrasonic welding.

This battery offers an extended capacity - greater than the original battery. The battery is also IP68 certified for water and dust resistance!

Brand: Foton™

Importer: Sprinter2000

Compatible stations: Motorola Tetra MTP3200, Motorola Tetra MTP3250, MTP3550 (MTP3xxx series) and MTP6550, MTP3100, MTP6000

Battery code from the station manufacturer/ Equivalents: NNTN8023 / NNTN8023C

Type: Li-Ion

Nominal voltage: 3.7 V

Nominal capacity: 2300 mAh, 8.5 Wh (compared to the 1750 mAh / 6.1 Wh original battery)

Dimensions: 104.5 x 52.7 x 16.6 mm

Standard charge: 0.23 A x 16 hours T = 0°C…+40°C

Fast charge: 1.15 A x 1.7 hours (-dV) T = +10°C……+40°C

Maximum discharge current: 2.3A

Operating temperature: -20°C … +60°C

Optimal storage conditions: Temperature +5°C … +25°C / Humidity: 65%+5%

Acceptable storage conditions (maximum one month): Temperature -20°C … +40°C / Humidity: 65%+25%

Number of cycles: up to 1000 charge-discharge cycles in compliance with the conditions of use

Certifications: IP68 - water and dust tightness, according to test report MR34Y94G3566400D2b / 12.07.2023, applicable standard: IEC 60529:1989+A1:1999+A2:2013 / CE

Weight: approx. 120 g

Commercial warranty for individuals: 12 months

 For charging, only the charger supplied with the transceiver station should be used.

Warnings: Do not throw into fire, do not leave within reach of children, do not short-circuit, do not disassemble. Do not throw used batteries in the trash - hand over used batteries only to authorized collection centers (such as battery collection bins in large stores)
