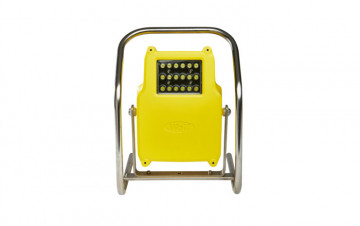

Name: ATEX/IECEx Projector Mini Worklite™ WL-50
Brand: Wolf Safety Lamp
SKU: WL-50

Description

The ATEX/IECEx Mini Worklite™ WL-50 LED floodlight from Wolf Safety Lamps UK, launched in 2020, is designed to provide a very good level of brightness at a low weight and with the possibility of easy recharging, so that it can be very useful for lighting remote and dark spaces in areas with a high risk of explosion.

At a weight of approx. 9kg, it weighs practically half of the WL-80 and WL-85 models, but offers the same brightness. Being CE certified and marked according to the ATEX Directive for safe use in zones 1, 2, 21 and 22 for potentially explosive gas, vapour, mist and dust, where temperature class T4 allows.

The WL-50 rechargeable surface projector features an 18-LED lamp that delivers over 3100 lumens from a small and lightweight battery. It offers a beam or spot of light for long distances, but also a wide-angle light and "fringes" of light for close areas. The LED light source is designed to provide a life of over 100,000 hours.

Battery life is up to 5 hours on "high power" and up to 10 hours on "low power". In addition to the dual light output levels, the control circuit manages the switching function, battery level indicator and low battery cut-off, maintaining and protecting the battery against deep discharge and premature damage.
The powder-coated aluminum construction is designed to provide resistance in the harshest conditions of use and corrosion in the industrial field.
Mounted in a stainless steel stand, the battery and battery control circuitry are sealed within the enclosure providing IP66 and IP67 protection against dust and water ingress - virtually 'dustproof', the Worklite™ WL-50 is protected against strong jets of water and immersion up to a depth of 1 meter.
The stainless steel bracket provides additional protection and allows you to easily direct the light exactly where it is needed. The lamp can also be used on tripods or attached to flat metal surfaces with the magnet sets for complete flexibility in getting light exactly where you need it.
The lens is impact resistant, made of 6 mm toughened glass. If ever needed, the battery, electronics and LED can be replaced by a qualified technician.

TECHNICAL SPECIFICATION:

Characteristics	WL-50
Product name	High Power Rechargeable Battery Worklite™
Code	II 2 GD Ex e ib mb op is IIC T4 Gb Ex tb op is IIIC T135°C Db
Supply Voltage	100 -254Vca
Protection certificate	Zones 1 and 2, Gas Groups IIA, IIB and IIC
Temperature classification	T4
Dust protection	Zones 21 and 22, Dust Groups IIIA, IIIB and IIIC
max. surface temp. (dust)	T135°C
Ambient temperature	-20°C ... +45°C
Certificate	CML 18ATEX3373X, IECEX CML 18.0199X
Materials	Cast aluminium, steel stand, tempered glass lens
Type spot light	Spot beam with "fringes" of lower level light
The light source	18 x High power led
Average life of led	>100.000 hours
Brightness	3100 lumens
Light intensity	14146 Lux at 1m / 566 Lux at 5m (High)
Lighting modes	2 - High and Low
Battery type	W-3200: gel battery, lead-acid with 12V output
Battery capacity	12V 10Ah
Weight	9.3 kg (includes battery)
Battery autonomy	10 hours (Low) / 5 hours (High)
Recharge time	Complete in 8 ore
Water protection	IP66 / IP67 (submersible to 1m) according to IEC60529
Accessories	Charger included (mains charger)
Dimensions	281 x 297 x 381 (width x depth x height) mm (including stand)
Light beam angle	18 degrees spot
Diametru spot	Spot with a diameter of 1.2m at a distance of 5m from the source
