Description

NexSys^® TPPL batteries - with pure lead plates

NexSys® TPPL Block Batteries offer exceptional flexibility. Use them whenever you want and recharge them whenever you can - during breaks or at the end of your shift. NexSys® TPPL Block Batteries can even be put back into service before they are fully charged. Combining an advanced Thin Pure Plate (TPPL) block design with robust materials and construction, NexSys® TPPL Block Batteries deliver exceptional performance, are highly resistant to shock and vibration, and will literally change the way you work.

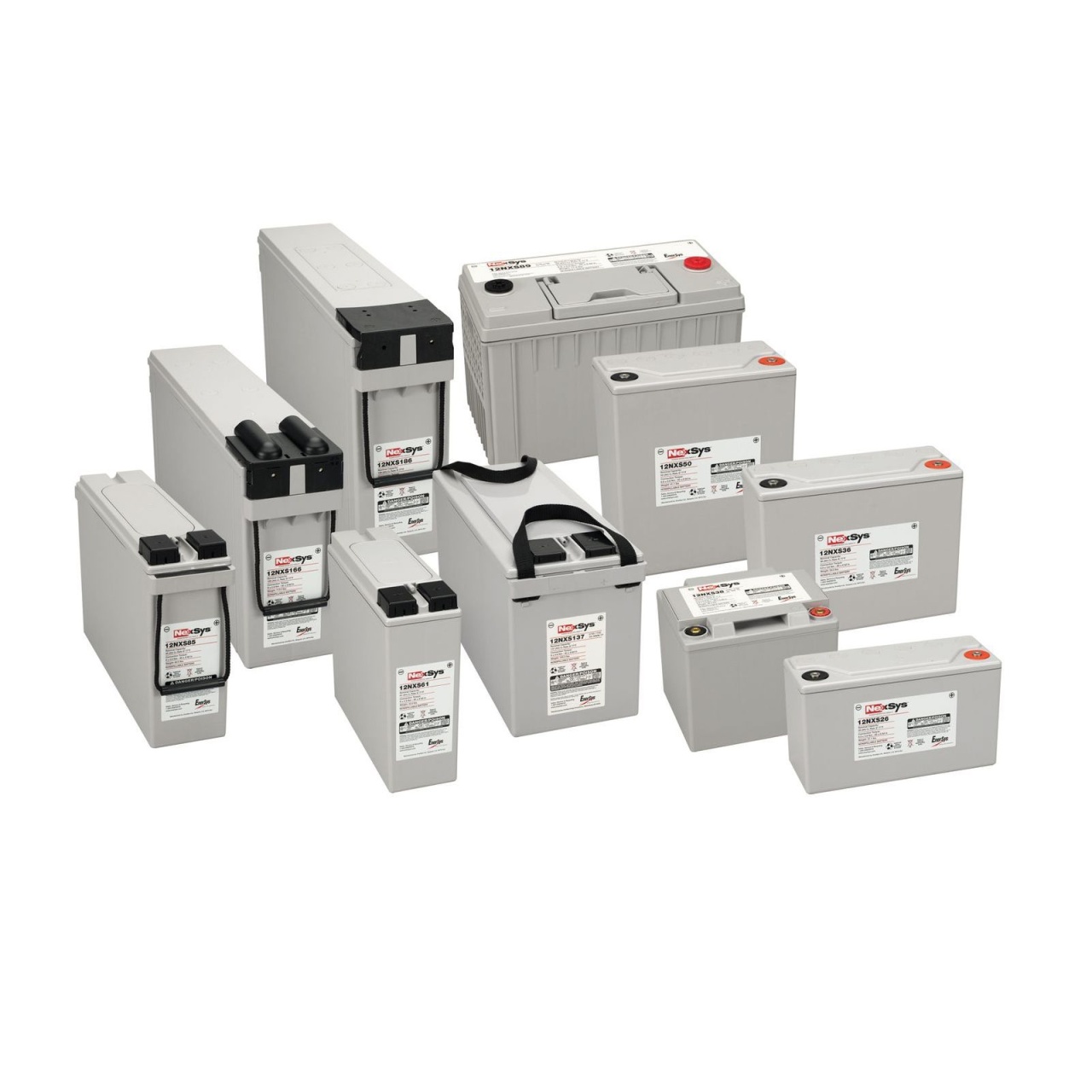

Featuring Thin Plate Pure Lead (TPPL) technology, NexSys® TPPL Block batteries provide virtually maintenance-free power for a wide range of small traction applications. Combining exceptional flexibility and durability, NexSys® TPPL Block batteries offer a high-performance alternative to traditional lead, acid, flooded or gel batteries.

Advantages of the NexSys TPPL range:

• Virtually maintenance-free: no electrolyte topping up, changing or equalizing
• Charging opportunity whenever the vehicle is stopped – during breaks or at the end of a shift
• Excellent service life: optimized cycling performance and high energy throughput
• Minimal outgassing: ideal in sensitive areas
• 99% recyclable: TPPL batteries ensure maximized sustainability
• 20% more power: compared to conventional batteries of identical dimensions
• Much faster charging; 98% charge in just 2 hours!
• Integrated data communication: automatic discharge alerts, battery monitoring and data capture capabilities
• up to 1500 cycles: at 60% DoD (depth of discharge)

PRODUCT DETAILS:

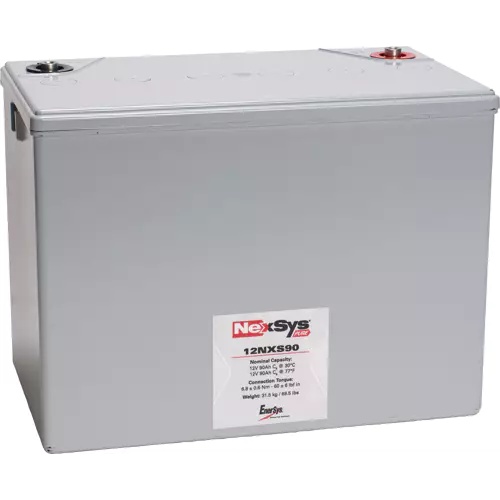

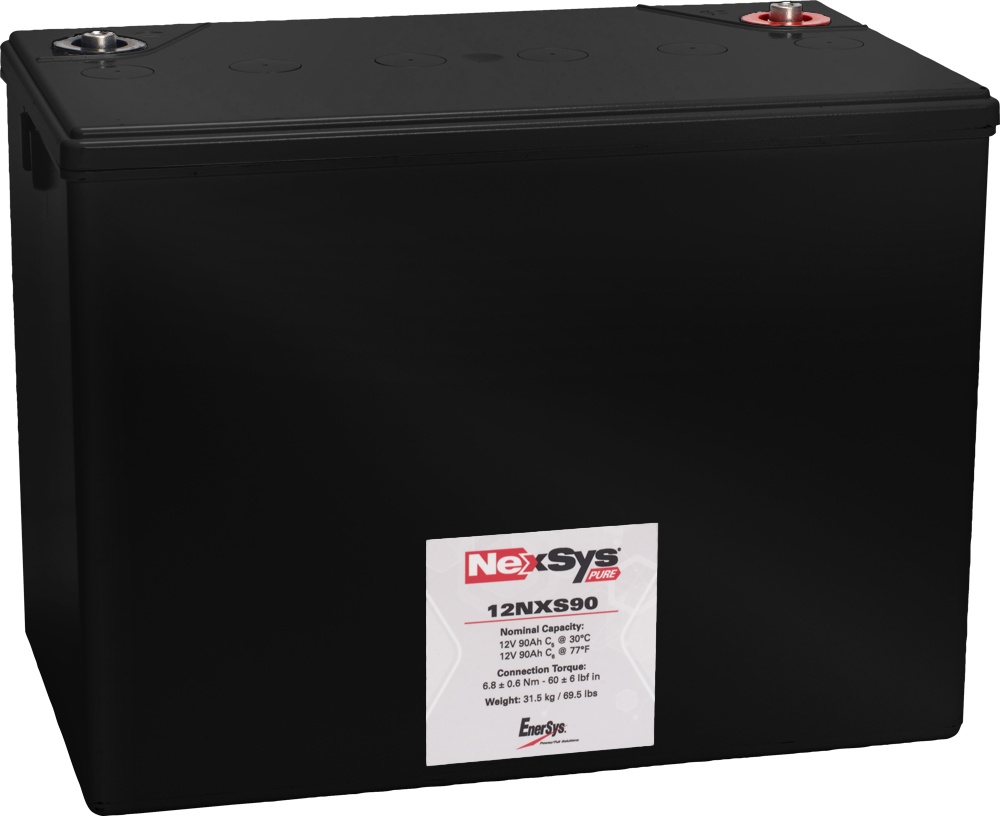

Brand/Manufacturer: EnerSys© NexSys© TPPL Block

Range: NexSys© TPPL Block - traction batteries for electric forklifts, electric pallet trucks, electric floor cleaners, golf carts, elevators, automated guided vehicles (AGV), electric wheelchairs for the disabled, other electric utility vehicles

Made in: Europe (Great Britain or France)

Product code: 12NXS90

Technology: TPPL - thin pure plate lead, thin Lead plates with electrolyte, maintenance-free

Battery format: Normal block (terminals on the long side) / Top terminal (terminals positioned on the cover)

Housing: ABS

Electrodes: thin pure lead plates

Electrolyte: sulfuric acid solution (Does not require refilling)

Nominal voltage: 12 V

Nominal capacity: 90 Ah (C6 hr @1.7Vpc / 30°C) / 104 Ah (C20 hr)

Designed cycle count: up to 1500 cycles at 60% DoD (depth of discharge)

Designed storage life: up to 2 years storage after full charge (at +20°C)

Dimensions: 302 x 175 x 227 mm (L x W x H)

Applications: Traction - electric forklifts, electric pallet trucks, electric wheelchairs, etc.

Terminals: 2 x M8 F (top terminal - terminals located on the cover, on the long side; terminals with metric/female thread; plus terminal positioned on the right)

Standards and certifications: IEC61427-1:2013 / manufacturer certification ISO 9001

Weight: ~31.5 kg

 Do not throw away after use. Hand over only to authorized collection centers or to your distributor. Contains heavy metals and substances very dangerous to health and the environment

 Do not disassemble, short-circuit, or throw into fire. Keep out of reach of children. Observe the stated purpose and instructions for use.
