Single-phase generator BS.7001.E 230V 7kW petrol

Description

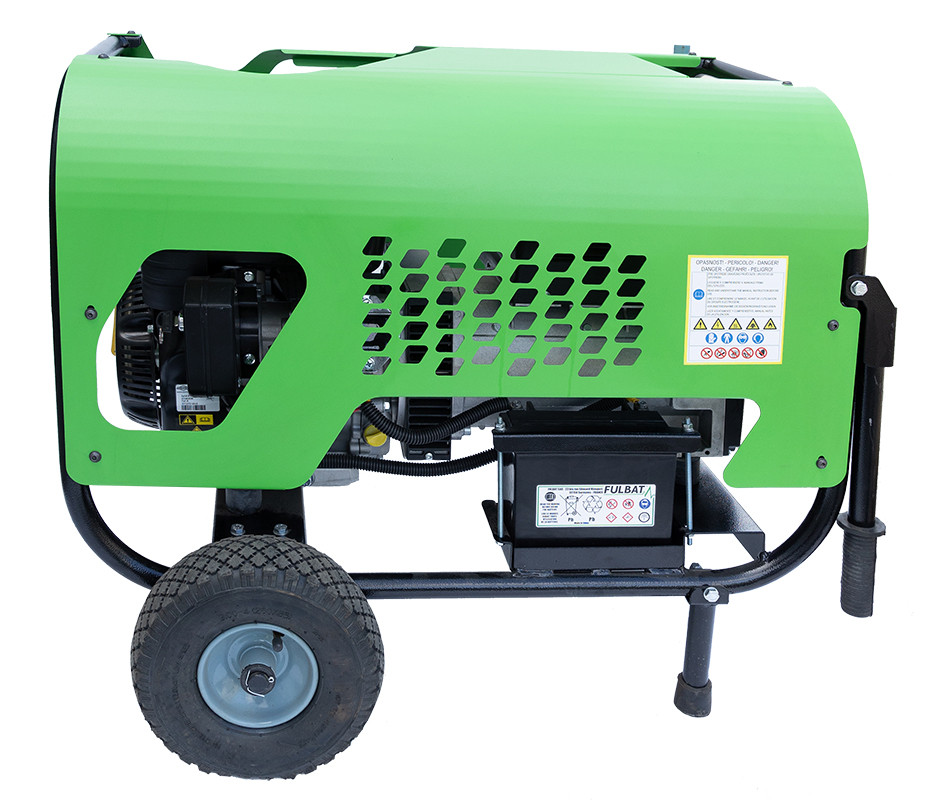

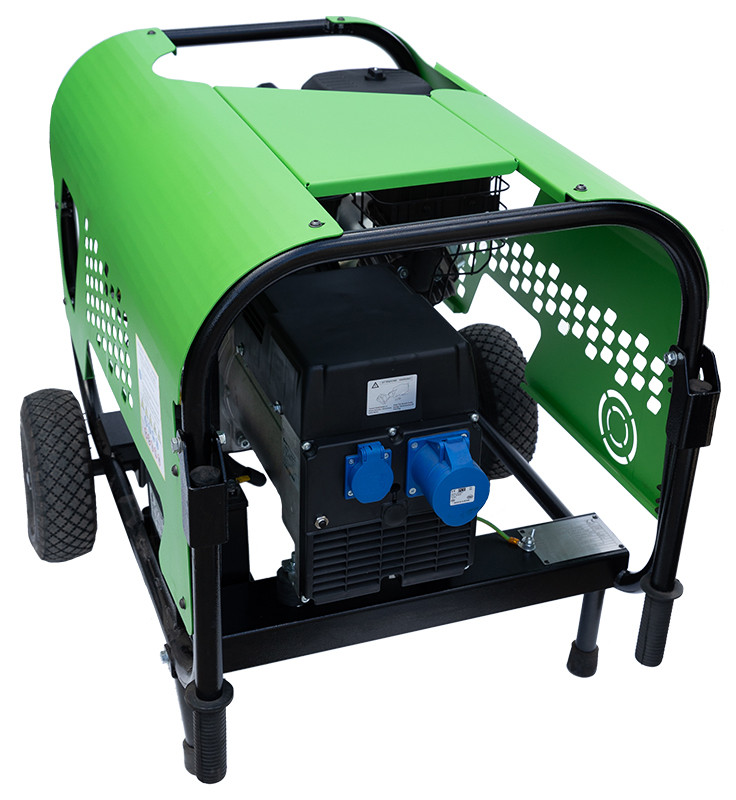

Single-phase portable generator, with a 13.5HP Briggs&Stratton gasoline engine, with electric start (starter battery included) but also manual for cases of force majeure, developing up to 7kW/7kVA, at 230Vac 50Hz.

Product type: Portable single-phase gasoline generator

Model: BS.7001.E

Manufacturer and country of origin: Orgon Power / Republic of Serbia

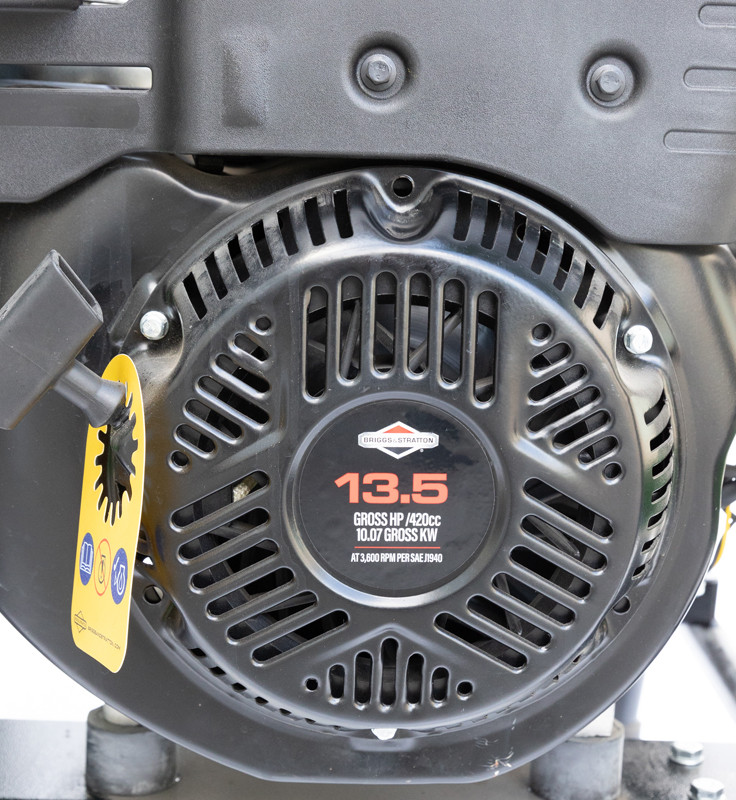

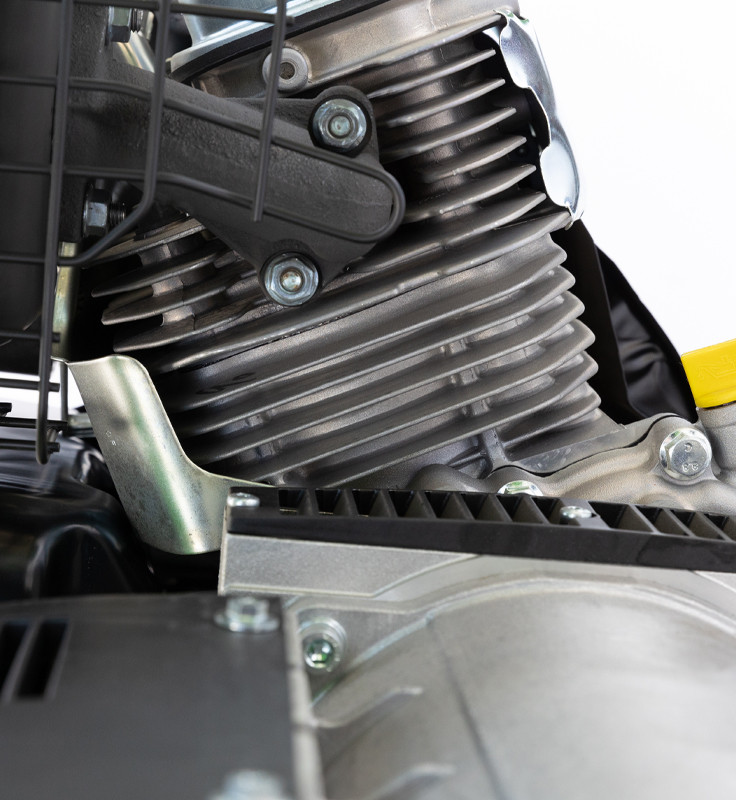

Engine: Briggs&Straton XR 2100 25M (OHV type)

Fuel: Gasoline

Engine power: 13.5 HP

Engine displacement: 420 cm³

Number of cylinders: 1, horizontal shaft

Tank capacity: 6.4 liters

Nominal consumption at maximum load: ≈2.4 liters/hour

Oil sump capacity: 1 liter

Engine start: Electric (with battery included) and manual (with rope)

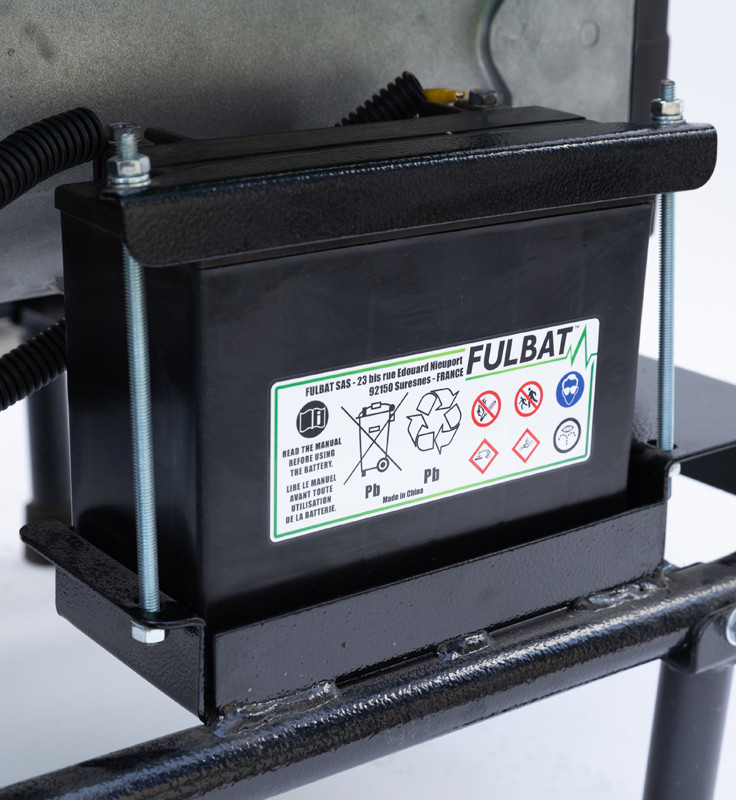

Starter battery: 18Ah (included)

Filters: air - yes / oil - no

Exhaust silencer: Yes

Engine nominal speed: 3000 rpm

Alternator: NSM Italia

Alternator description: Brushless, with capacitor

Model alternator: C100 LH

Number of poles / phases: 2 poles / 1 phase

Output current frequency: 50 Hz

Nominal output voltage: 230Vac, tolerance -10%...+5%

Output power: 7 kW / 7 KVA

Power factor: 1.0

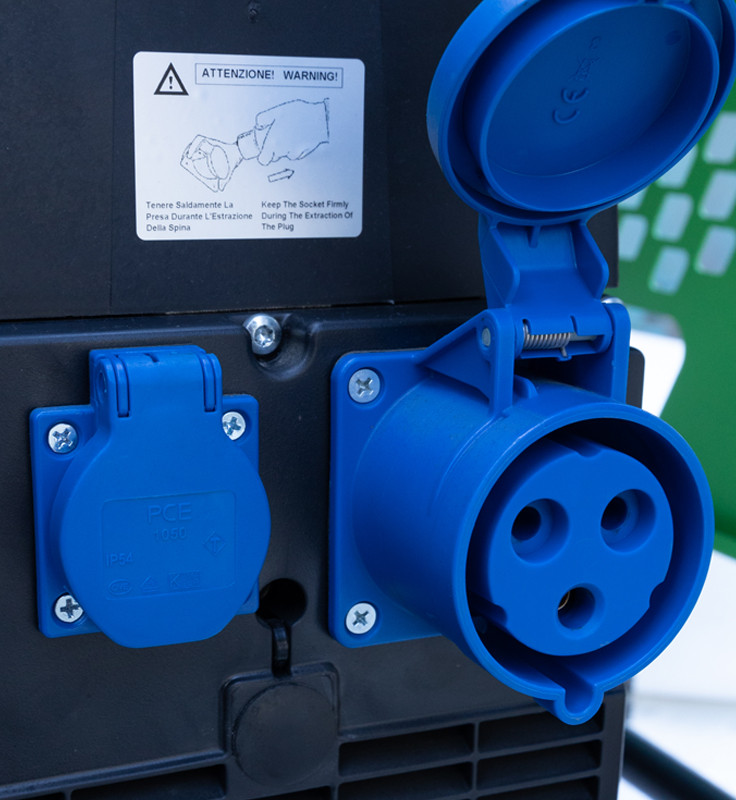

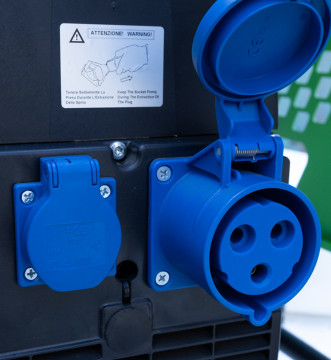

Output sockets: Schuko 16A + CEE 3P 32A industrial socket

Total harmonic distortion (THD): ≤ 6%

Starting capacity: Icc > 3In

Insulation class: H

Water and dust tightness: IP23

Easy transport wheels: yes - 2 pieces

Transport handles: yes - 2 pieces integrated

Dimensions: 815x563x562 mm (LxWxh) without wheels and handles / 846x750x714 mm (with wheels and handles)

Weight: 89 kg without wheels and wheel support / 98 kg with wheels, handles and wheel support

 The technical specification is calculated under the following environmental conditions: temperature 25°C, altitude 100m, relative humidity 30%, atmospheric pressure 100kPa (1 bar)
