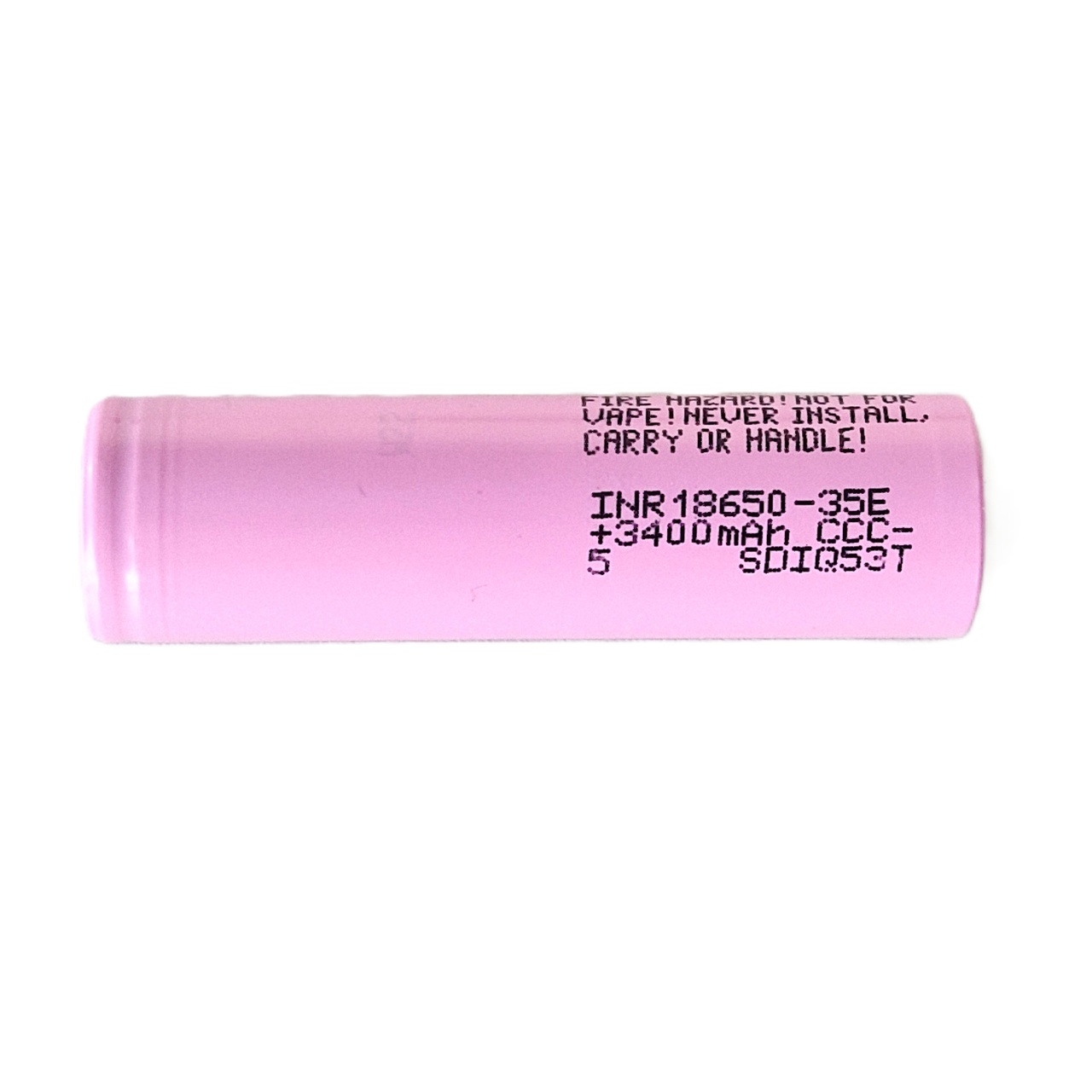

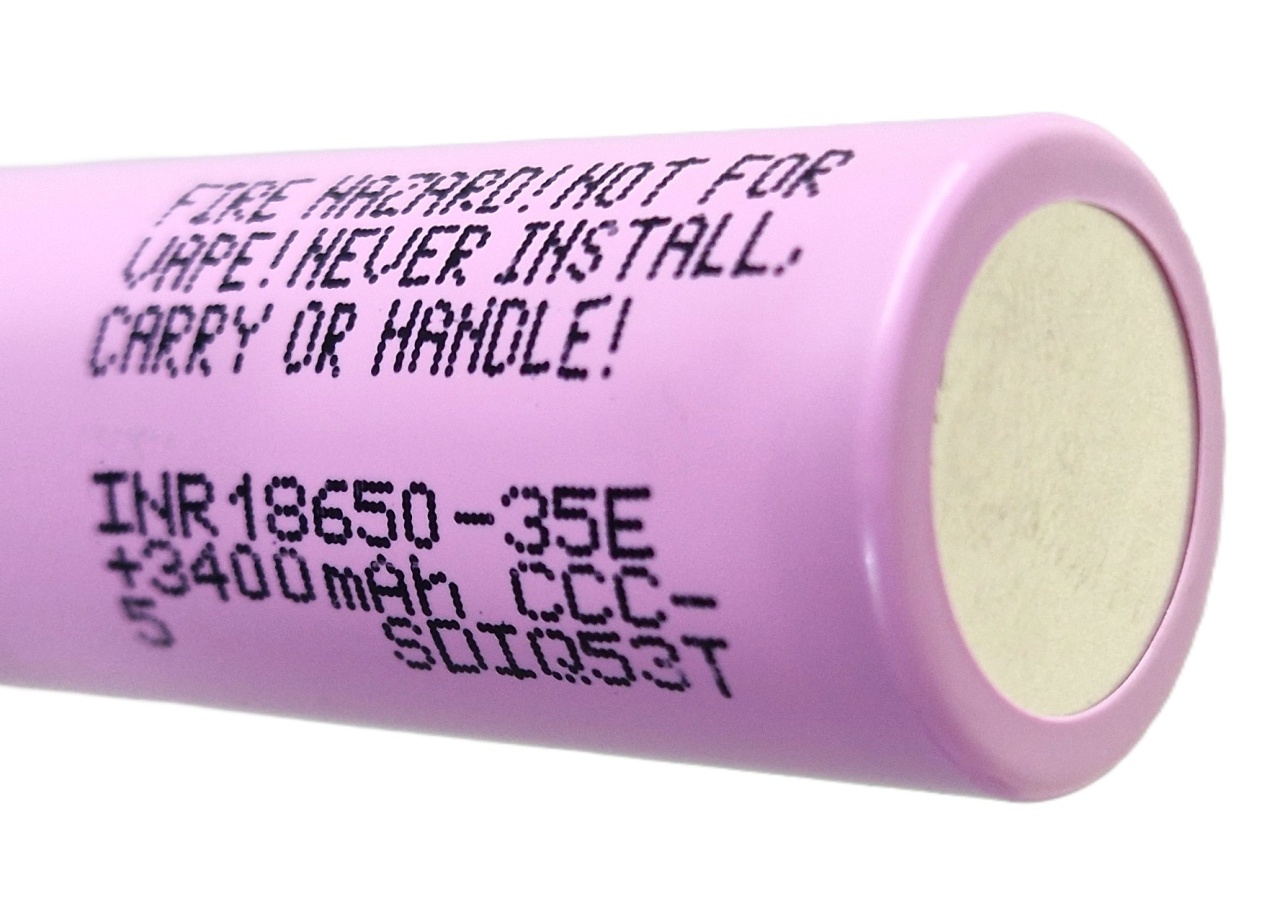

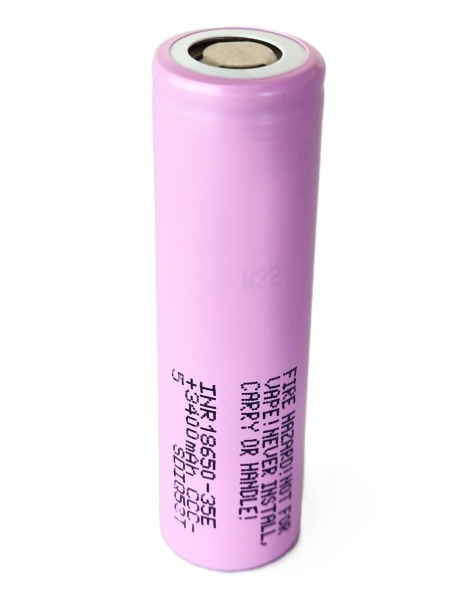

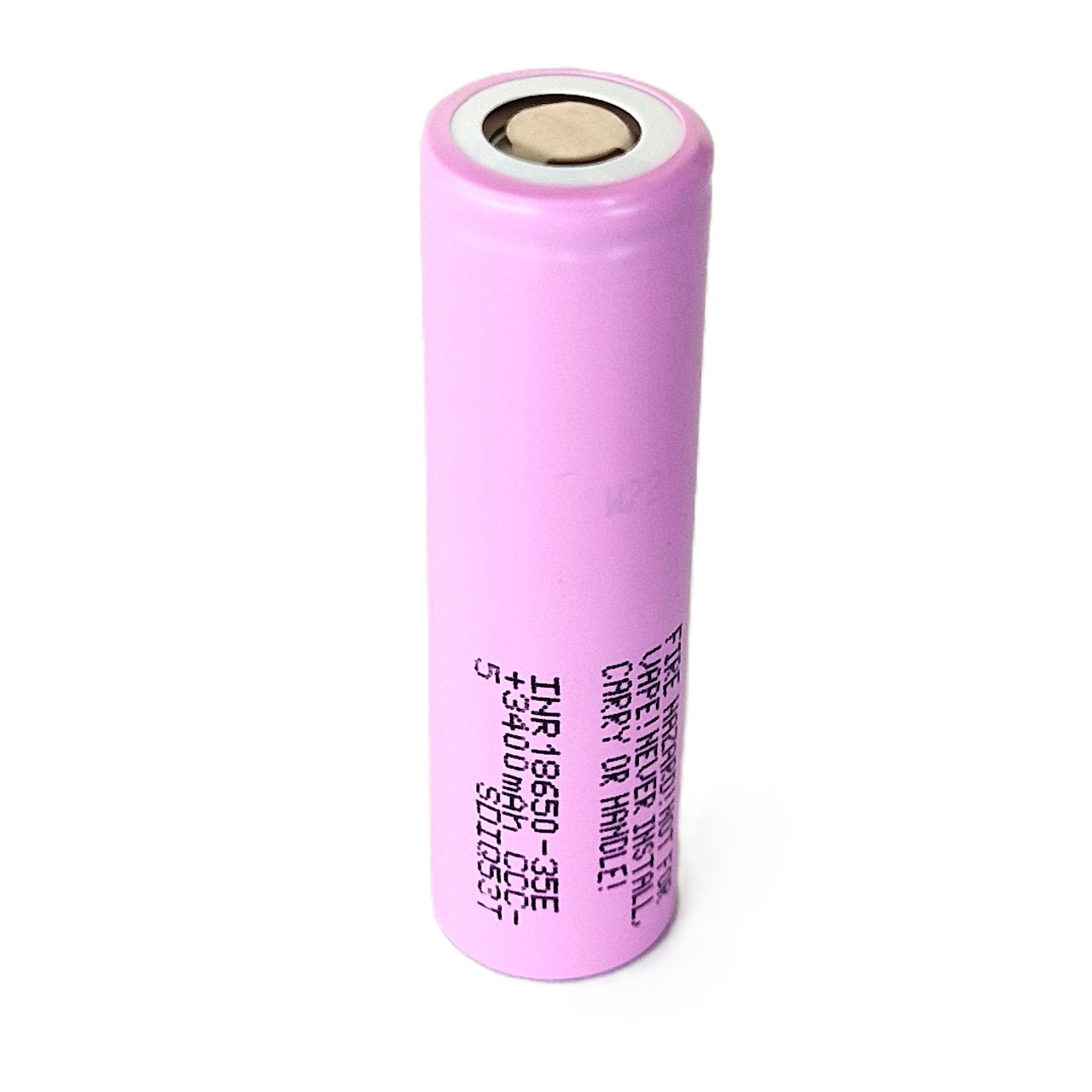

Samsung battery INR18650-35E of 3.6V and 3400mAh

Description

Lithium Ion battery type INR18650-35E (18650) produced by Samsung™, industrial type (bulk) and premium quality, used mainly in various assemblies for newer LED flashlights or other devices such as powerbank (external battery), jump starter (car starting robot), hoverboard, electric scooters and bicycles, medical equipment, etc.

This cell model does not have overcharge, deep discharge or temperature protection, so it will only be used by specialists, in assemblies with specific protection circuits (BMS).

PRODUCT SPECIFICATION:

Manufacturer: Samsung™ South Korea

Manufacturer Code: INR18650-35E

Equivalent Codes: 18650, NCA18650, INR18650, MH12210, NCA18650B

Chemistry: Li-Ion

Type: Rechargeable battery

Nominal voltage: 3.6 V

Nominal capacity: 3450 mAh

Typical capacity: 3400 mAh at +25°C

Minimum capacity: 3350 mAh at +25°C

Maximum discharge current: 8 A

Charging voltage: 4.2 V

Charging method: Constant current and voltage

Charging current: standard 1625 mA

Recharge time: 4 h

Contacts: Button type, low top terminals

Protection: no (no overcharge, deep discharge, high temperature or short circuit protection circuit). DO NOT discharge below 2.5V!

Operating temperature: Charging +10...+45°C / discharging -20...+60°C / storage -20°C...+50°C

Dimensions: diameter Ø 18.3 mm; length 65 mm

Weight: 48.3 grams

Packaging: Industrial bulk (no individual packaging; for industrial use)

Color: Pink

Uses: in xSyP battery assemblies (requires protection circuit), electronic equipment and devices. It is NOT recommended for use as such (without installing a protection circuit - BMS) for flashlights and other devices that do not have deep discharge protection (risk of damage in case of deep discharge, not covered by warranty).

Commercial guarantee for individuals: Not applicable. Deeply discharged batteries are not covered by the warranty.

Warnings: Do not overcharge, do not deeply discharge, do not throw into fire, do not short-circuit even after use. Do not throw away - hand over used batteries only to collection centers.
