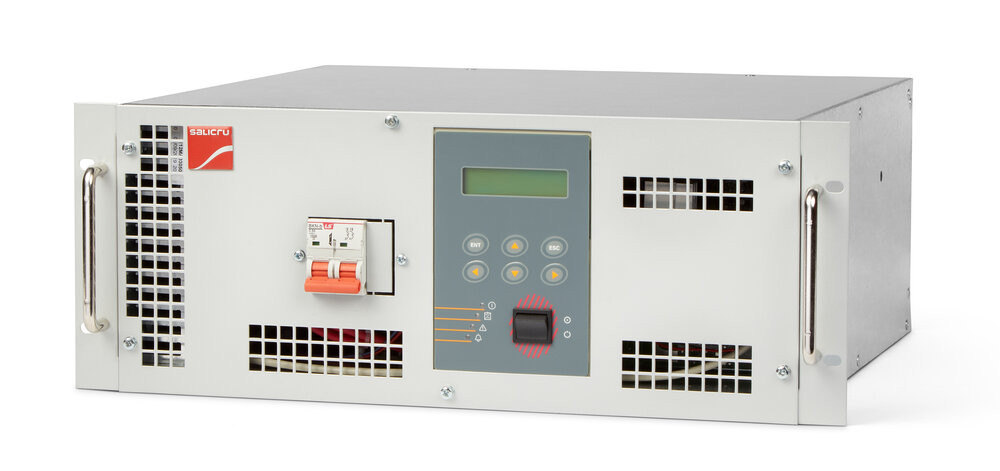

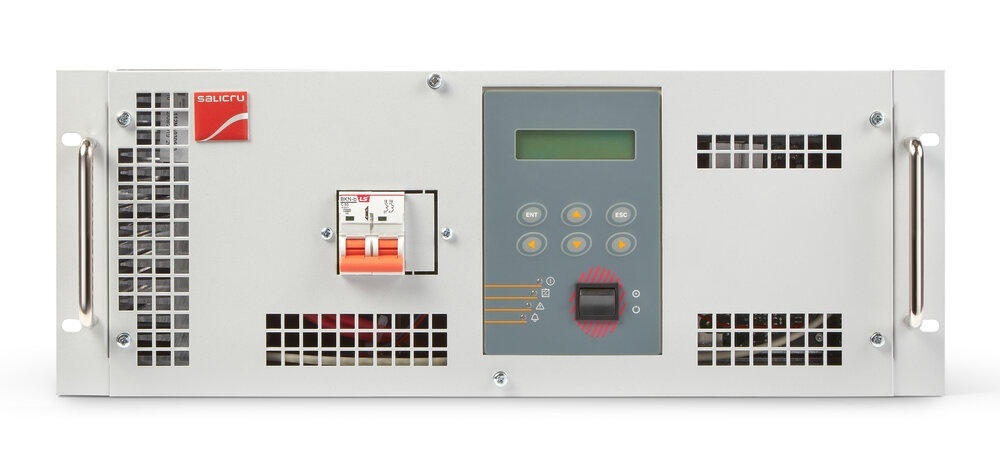

Salicru CS 5000-IS-B/220-230 R DC/AC Industrial Inverter

Description

The CS-IS inverter/converter range from Salicru (Spain) is a range of high-performance industrial DC/AC converters. Salicru's CS IS series DC/AC converters are based on advanced technical solutions such as PWM technology and digitally controlled servo systems, so as to achieve: high performance, low distortion (THDv < 2%) and increased stability. In addition, it offers excellent short-circuit tolerance, reverse polarity protection and the possibility of operating in Eco mode. The inverter/converter range is available in power ranges between 1000 and 20000 VA, with permissible continuous input voltage from 48 Vdc to 220 Vdc, nominal input, depending on the model.

Recommended applications: Energy conversion for industry. Salicru's CS IS series provides quality AC power from a DC source (normally batteries) for a wide range of industrial applications such as cogeneration and biomass plants, gas generators, water distributors, power plants and substations, telecommunications, etc.

PRODUCT SPECIFICATION:

Brand/Manufacturer: Salicru - Spain (Barcelona). Sprinter2000 is a direct importer and representative in Romania for Salicru Spain.

Product country of origin: Spain

Product type: Inverter / Professional converter DC -> AC 220-230V 5000 VA (from direct current to alternating current)

Range and model: CS-IS (professional) / Model CS 5000-IS-B/220-230 R

Manufacturer code: 639GE023444

Format: Rack

Input voltage: 110 / 120 / 125 / 220 V DC

Input voltage tolerance: -17%...+20%

Output voltage: 120V / 220V / 230V / 240V AC at 50/60Hz, accuracy ± 2%

Power: 5000 VA / 5000 W

Power factor: 1

Protection: DC reverse polarity

Communications: RS-232 / RS-485

Display: LCD

Automatic restart: Yes - when power is restored

Rack compatibility: Yes - 19"

Synchronized frequency: 0.1 Hz ... 9.9 Hz, incremented by 0.1 Hz

Free running frequency: ± 0.05%

Synchronous speed: 1 Hz/sec

Efficiency: up to 92%

Allowed overload: 150% for 30 seconds / 125% for 45 seconds

Operating temperature: -10°C... +40°C

Relative humidity: up to 95% non-condensing

Maximum altitude: 2400 m above sea level

Cooling: Forced

Standards: Safety EN IEC 61204-7 / Electromagnetic Compatibility (EMC) EN IEC 61204-3 / Manufacturer Certifications ISO 9001, ISO 14001, ISO 45001

OPTIONAL Functions: Static Bypass / EMI Filters / Transformer Isolation on Bypass Line / Psophometric Filter / Anti-Harmonic Filter

Battery Included: No.

Weight: 68 kg

Dimensions: 600 x 440 x 270 mm

Rack Dimensions: 600 x 483 x 6U

Warranty: 12 months from date of purchase.
