RALS LED Peli 9455Z0 certified ATEX Zone 0

Description

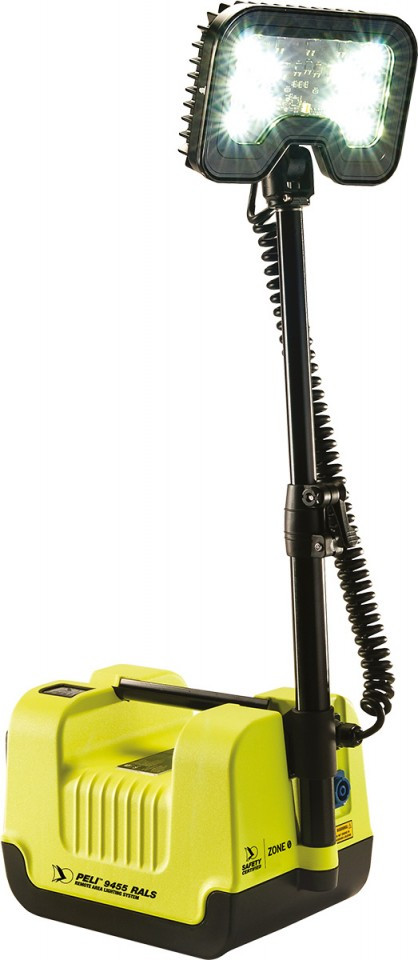

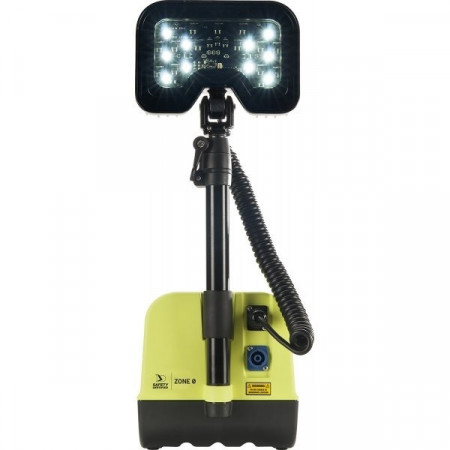

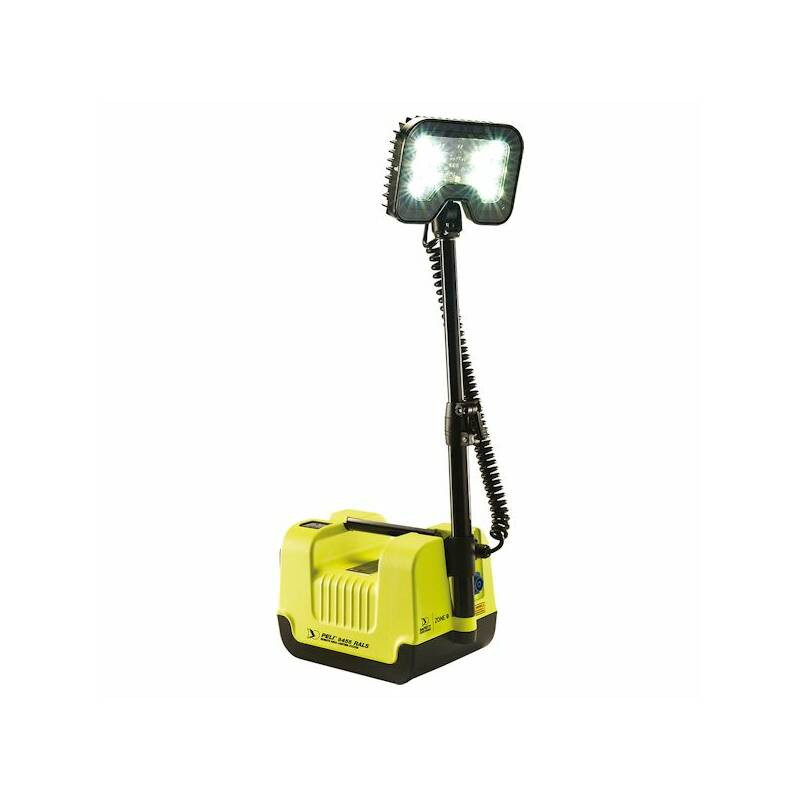

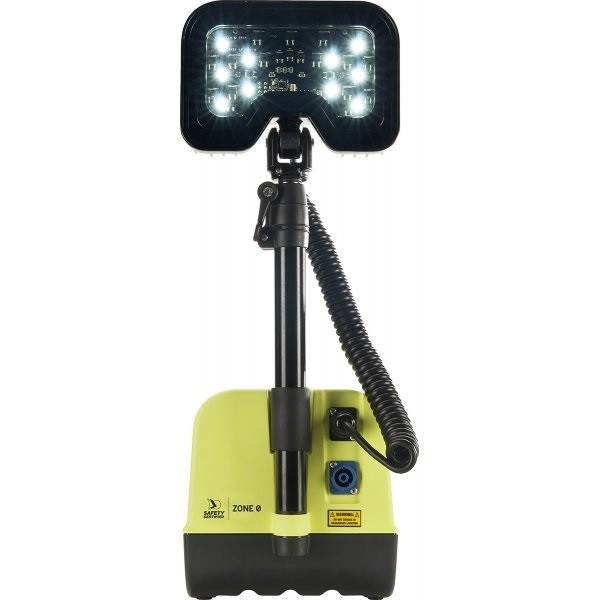

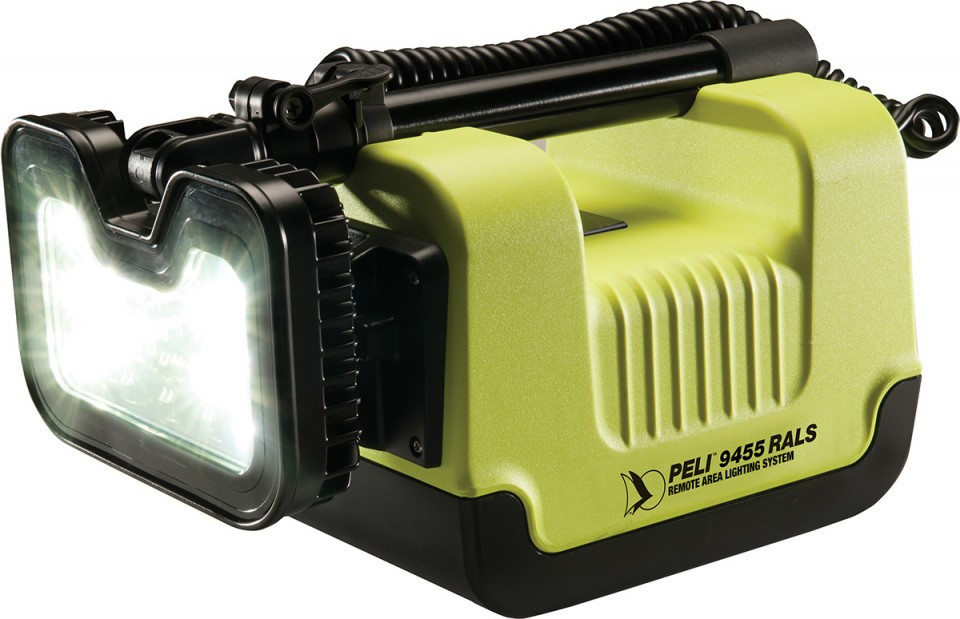

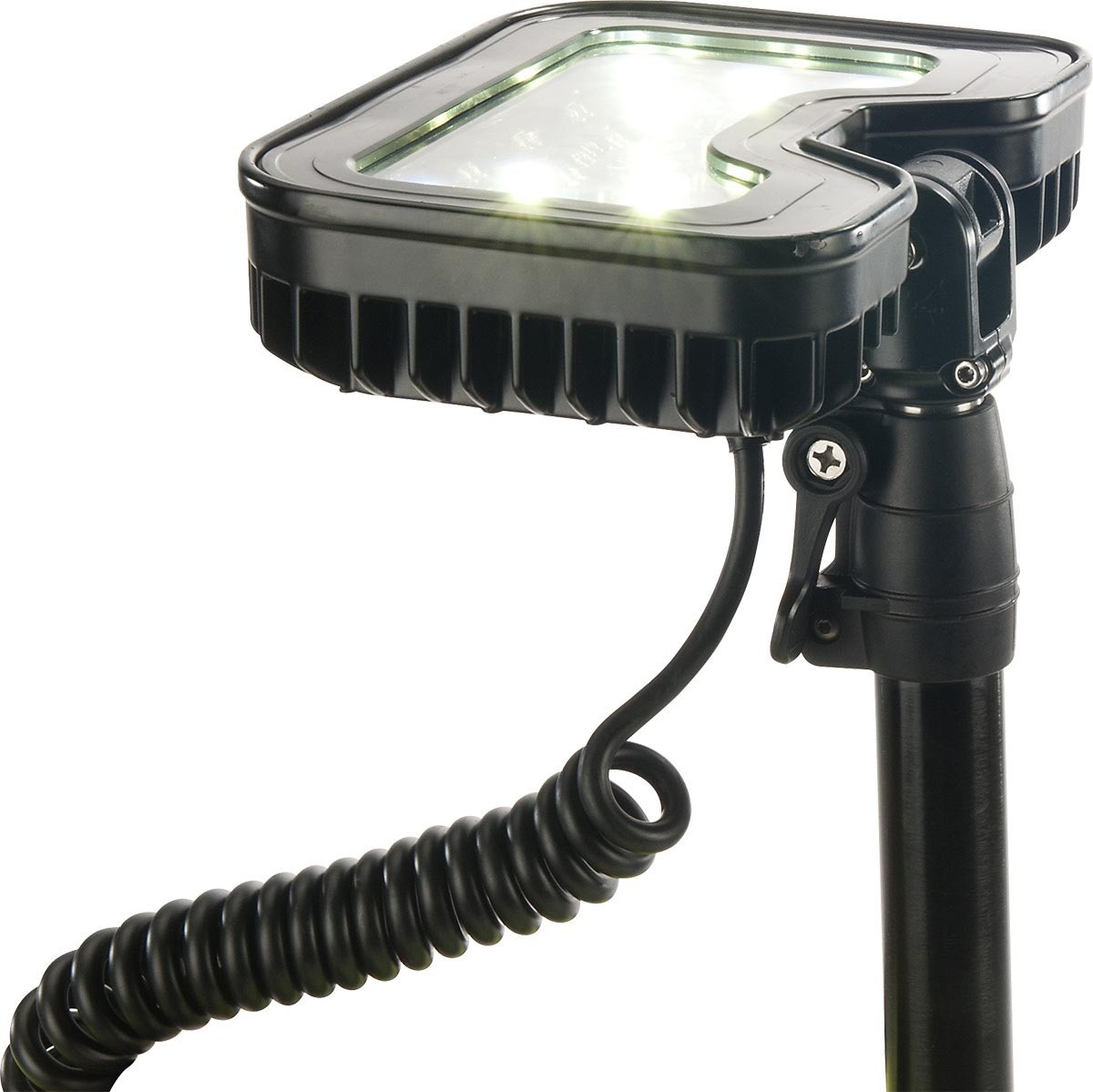

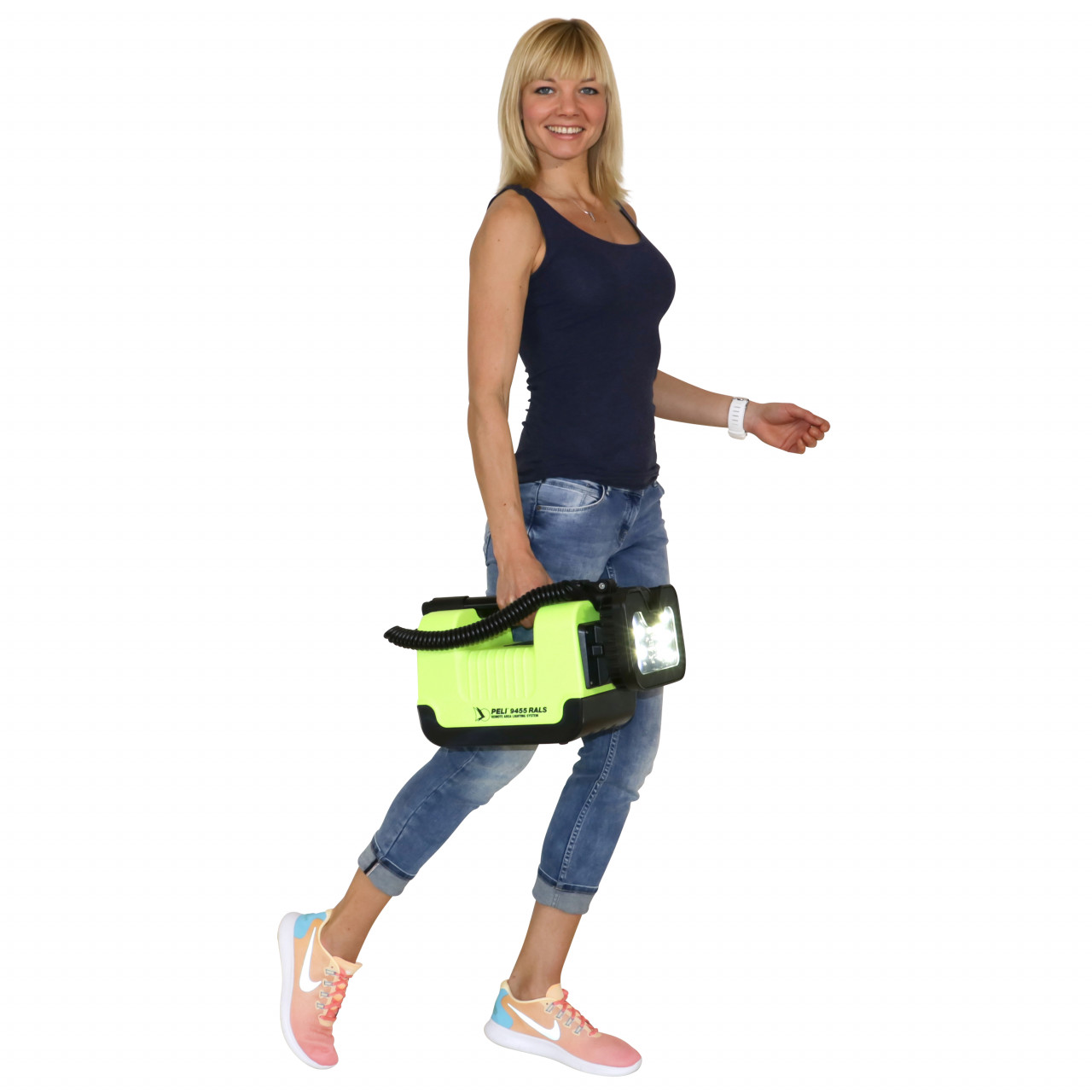

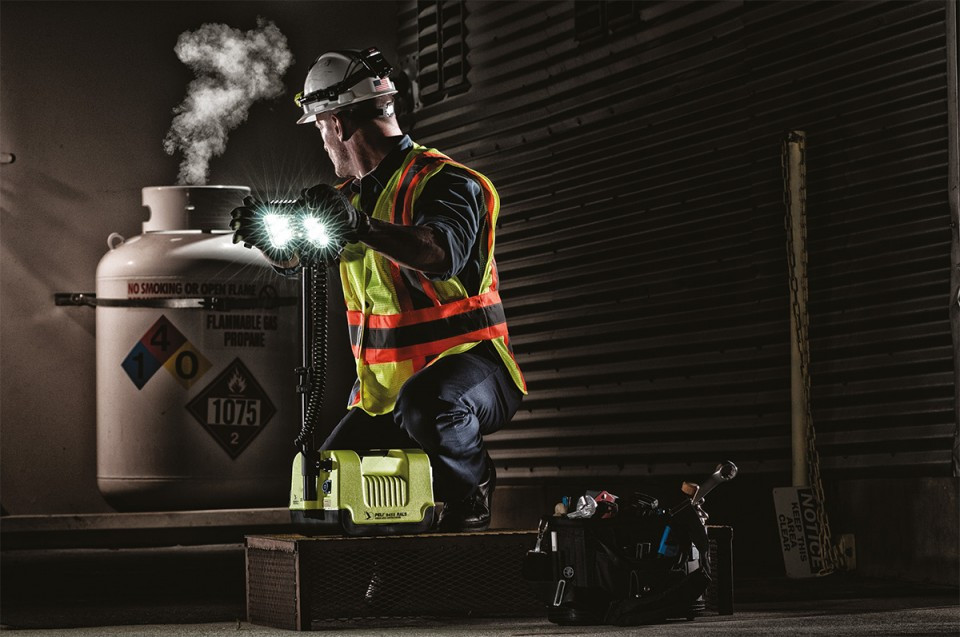

The portable lighting system (Remote Area Lighting System - RALS) type Peli™ 9455, with 10 LEDs and 10.8V NiMH type battery, is the first in the world to be certified Class I Division 1, ATEX Zone 0 and IECEx for work in an explosive environment and is intended for use by professionals in the fields of telecommunications, gas, water, sewage, energy, military, forensics/on-site research, interventions in case of emergency and catastrophes and any other applications where powerful portable lighting is required but at the same time there are factors that determine the risk of explosion in the area. The reflector can rotate, the LEDs offer a long lifespan, on average 50,000h, and offer a very high autonomy of up to 10 hours, with a brightness of up to 1600 lumens. It is weatherproof (IP54) and has a robust construction, extendable up to 80cm and with an indicator regarding the battery charge status.

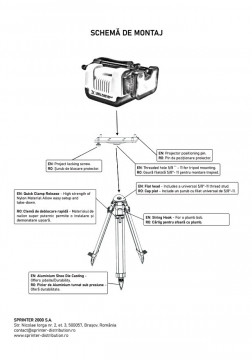

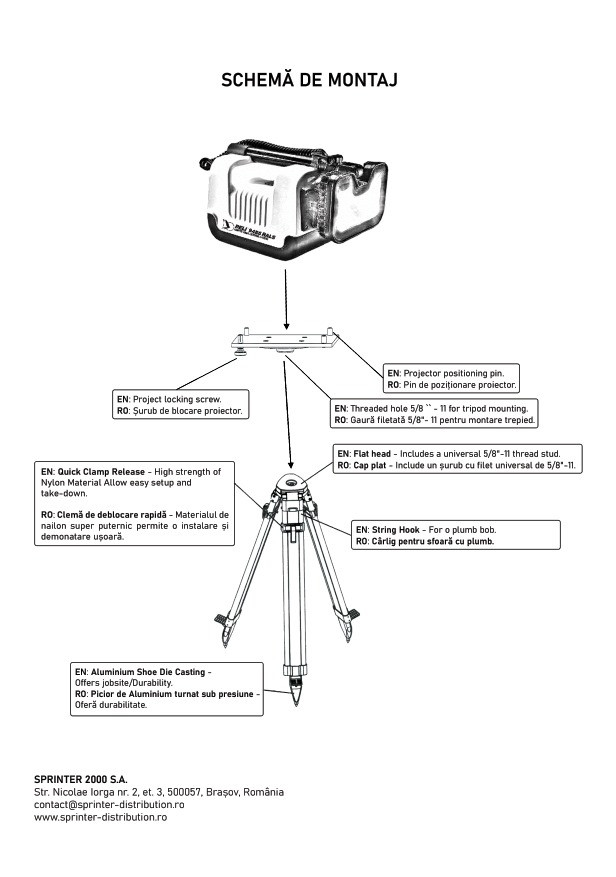

NEW: upon request, we can also deliver the system together with an extra extendable aluminum tripod, to ensure lighting from above, on an even larger surface! Request here the offer and delivery time for the Huepar tripod set and tripod-projector connection plate produced in Romania.

PRODUCT SPECIFICATION:

Brand/Manufacturer: Peli Products SLU.

Country of origin: U.S.A.

Material: polycarbonate/ABS, polycarbonate lens and aluminum head

Maximum length with extended arm: 80 cm (maximum height with optional Huepar Tripod - approx. 260 cm)

Dimensions (folded): 39 x 20 x 23 cm

Dimensions reflector head: 21 x 14.5 x 5 cm

Operating modes: 3 (intense/low/flash)

Brightness: 1600 lumens (high) / 800 lumens (low)

Light source: 10 x LED

Beam angle: 125°

Weather and water resistance: YES, IP54 certified

Autonomy: 5 hours (high) / 10 hours (low)

Battery: with NiMH 10.8V 21W, included (lifetime approx. 300 cycles; can be replaced later)

Charging time: 6 h full charge

Battery level indicator: yes, led

Operating voltage: 10.8 V

Charging voltage: 14.4 V

Cable length: 32 cm

Weight: 7.3 kg

Color: High Visibility Yellow

Certifications and standards: Class I, Division 1 / IECEx ia / Directive on the use in potentially explosive atmospheres 2014/34/EU / ATEX Zone 0 / IP54 / InMetro / EN 60079-0:2012+A11:2013 / EN 60079-11:2011 / EN 60079-26:2015 / EN 60079-28:2015 /

Antiex: Yes - ATEX Z0 certificate for use in potentially explosive areas

Temperature class: T4

Ambient temperature: -20°C...+40°C

ATEX / IECEx certificate no.: ExVeritas 17 ATEX 0243 X / IECEx EXV 17.0007X

ATEX marking:  II 1G Ex ia op is IIC T4 Ga

Optional equipment: Peli 1460AALG rigid protective case (with custom foam) / Huepar tripod and aluminum plate for tripod mounting / Dedicated charger / Dedicated battery - request a quote for the desired accessory here, indicating the quantity.

Safety Note: **Any repair (in or post-warranty) to the Peli RALS 9455Z0 projector must be performed only at a Peli Products certified repair center, due to safety certification requirements! Sprinter2000 is an authorized Peli service center for RALS.

*Sprinter2000 provides consultancy in the choice of flashlights and Peli™ cases according to your needs. It also provides spare parts, consumables and in- and post-warranty service for these products, being also a Peli™ authorized service center for portable surface projectors (Remote Area Lighting Systems - RALS) (Approved Repair Center for Peli Products Remote Area Lighting Systems) . You can send us your questions or service requests here.

**All trademarks are registered or unregistered of Peli Products S.L.U., the parent company, subsidiaries and/or affiliated companies
