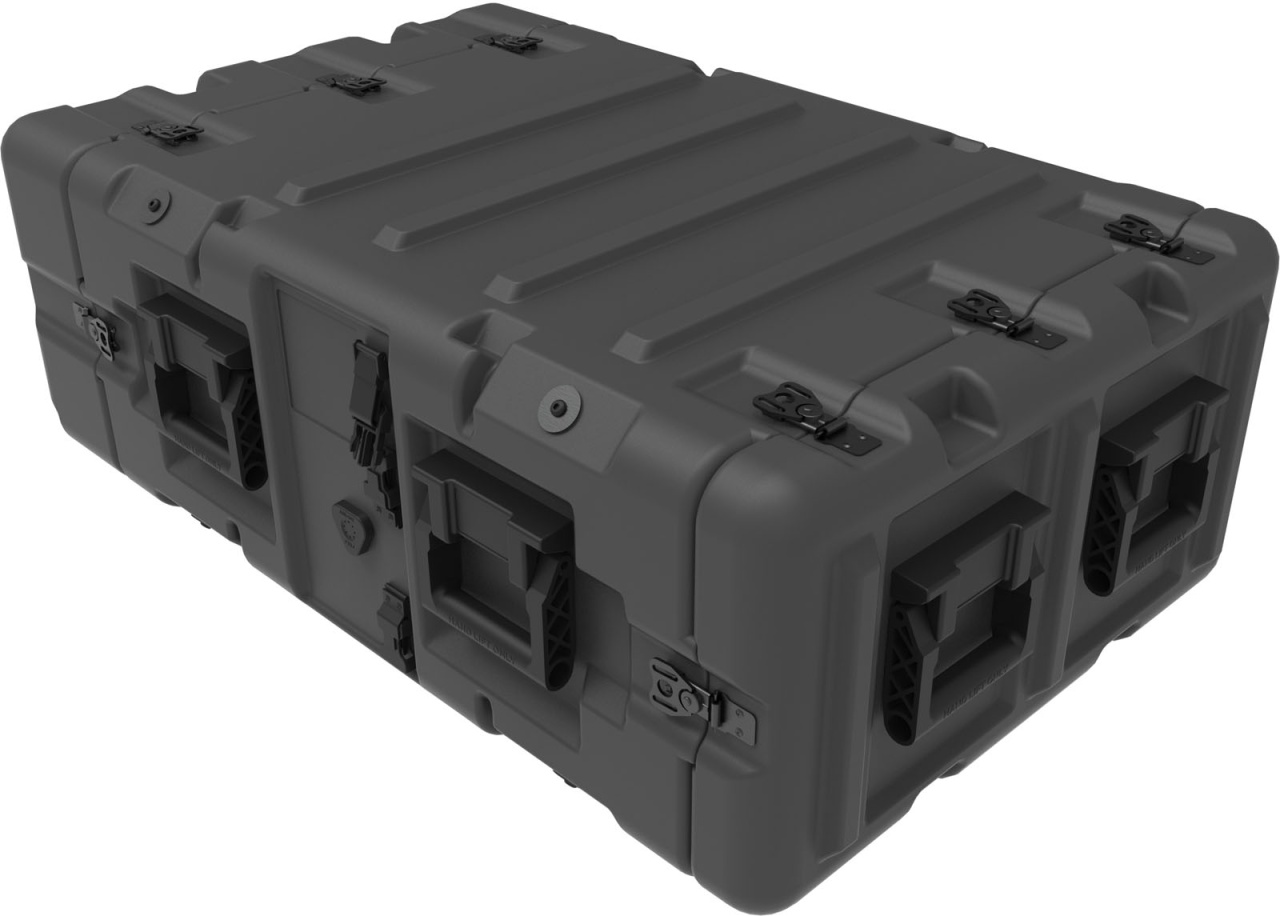

Rack Case Peli Euro-V-4U-S 55 / 740 / 125 mm M6

Description

The Euro-V Rack enclosure is a rotomolded, smooth-finished enclosure with a standard EIA 19" support, with depths of 610 mm and 760 mm, designed to incorporate and protect equipment mounted in standard square hole (M6) systems.

Lightweight yet rugged, the Peli Euro-V Rack Case offers medium protection in a streamlined format. Built for rapid deployment, it incorporates wall-mounted cylindrical brackets that protect sensitive equipment from shock and vibration. Its stackable design ensures compatibility with the Peli Super-V and Blackbox Rack cases, allowing for seamless integration into mixed fleets.

Made in Germany to reduce European delivery times, the Euro-V is available in nine sizes (from 4U to 10U), all with stacking ribs, rounded edges and a pre-configured steel support frame for fast and reliable deployment.

Euro-V Rack Cases are ideal for mission-critical applications where reliable protection in a lighter and more compact design is essential. When precision equipment needs to arrive intact and on time, trust the PELI Euro-V to deliver.

PRODUCT SPECIFICATION:

Brand/manufacturer: Peli Products SLU.

Product country of origin: Germany

Case range: Rack Cases Euro-V - mobile rack for medium protection against shocks and vibrations, high against water and dust, for equipment with fragility 15-30G

Format: 4U - M6

Product code: Euro-V-4U-S

Case external dimensions: 992 x 627 x 345 cm

Rack internal dimensions: 178 x 610 x 483 mm (7 x 24 x 19 inches)

Inner cover depth: 49 mm in the front cover / 125 mm in the rear cover

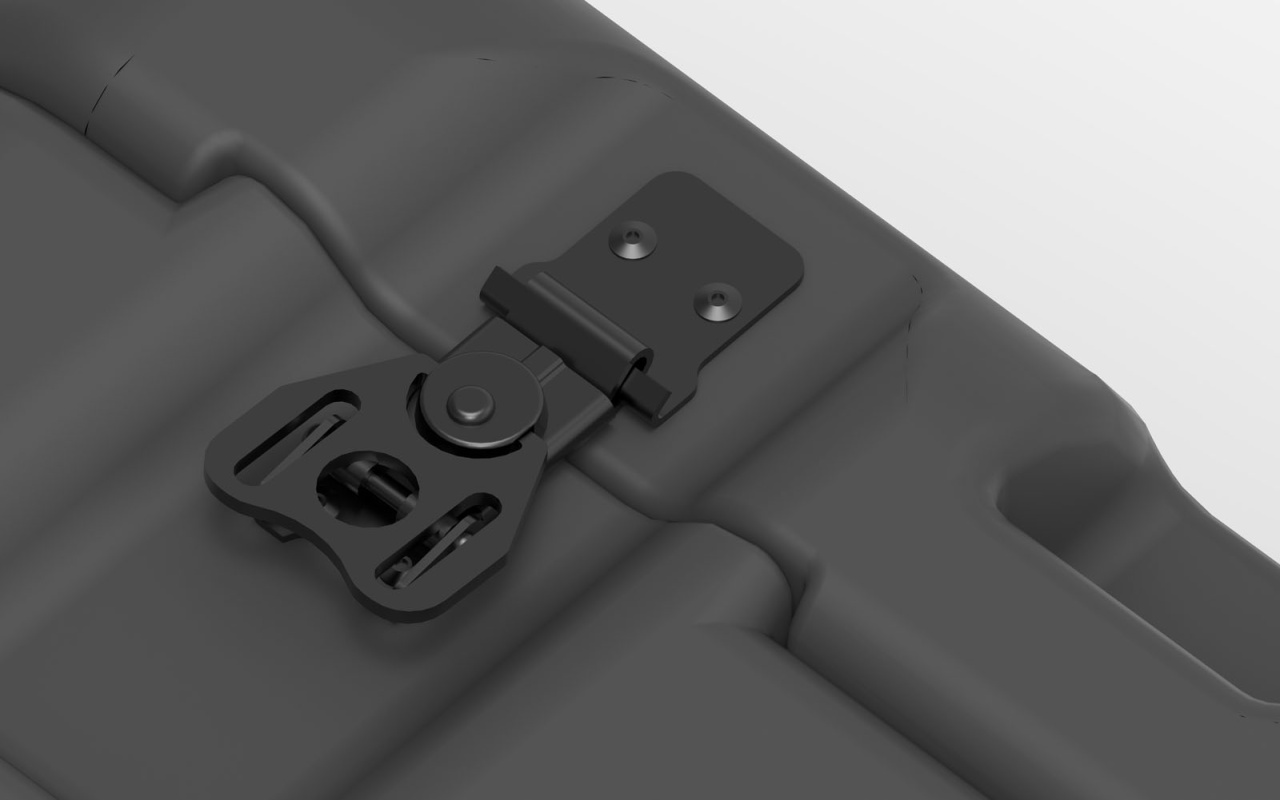

Cover: Covers at both ends, with 8 steel latches

Handles: 8 large and foldable handles, 2 on each side

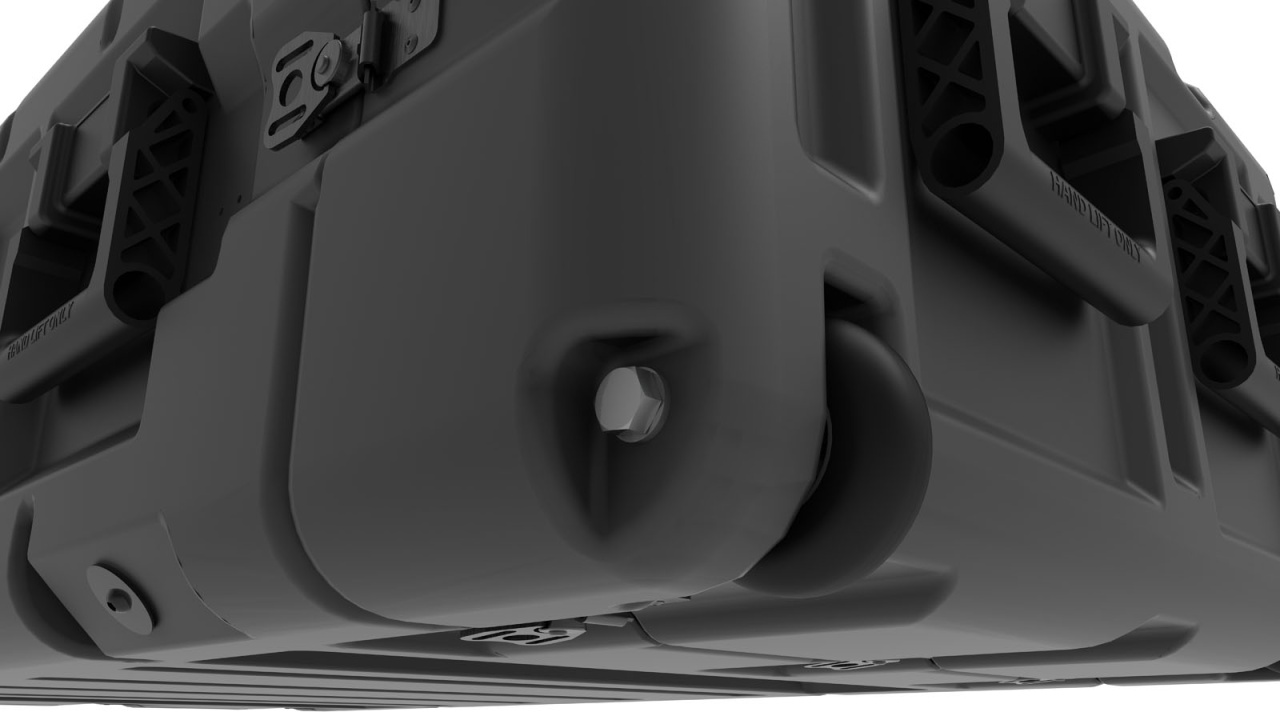

Wheels: 2 wheels included

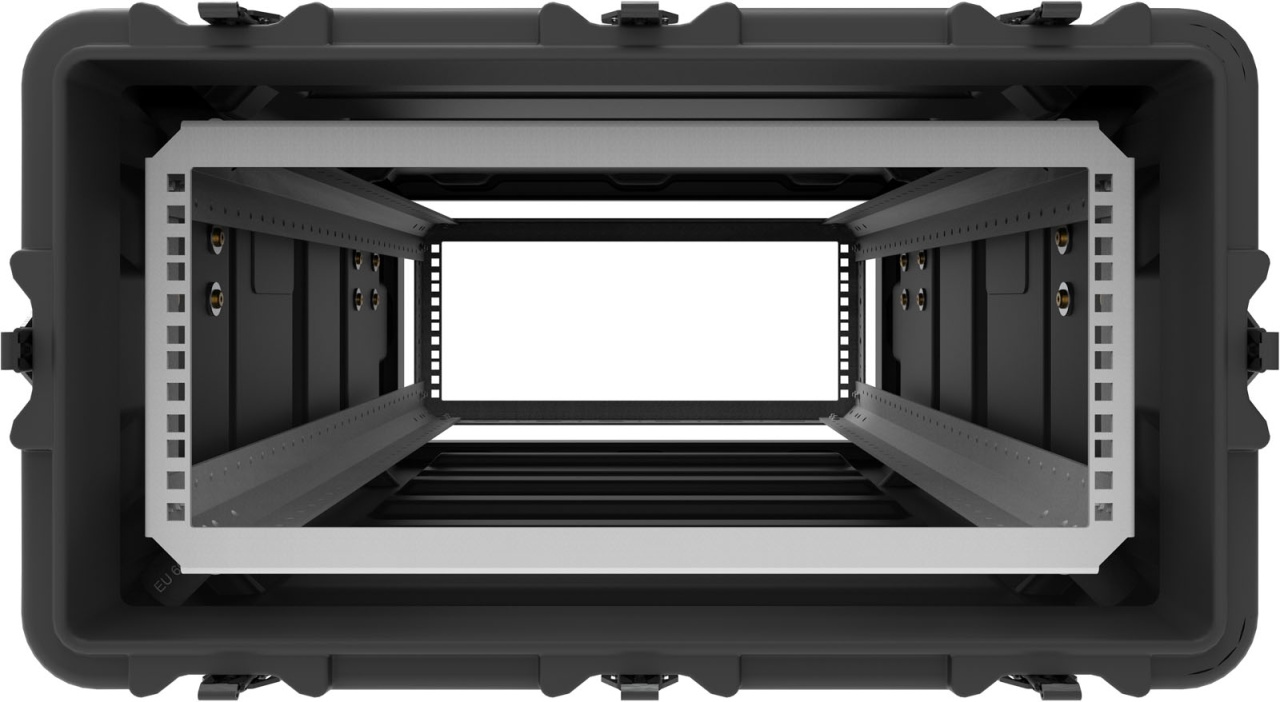

Rack/Rail: steel, with M6 holes

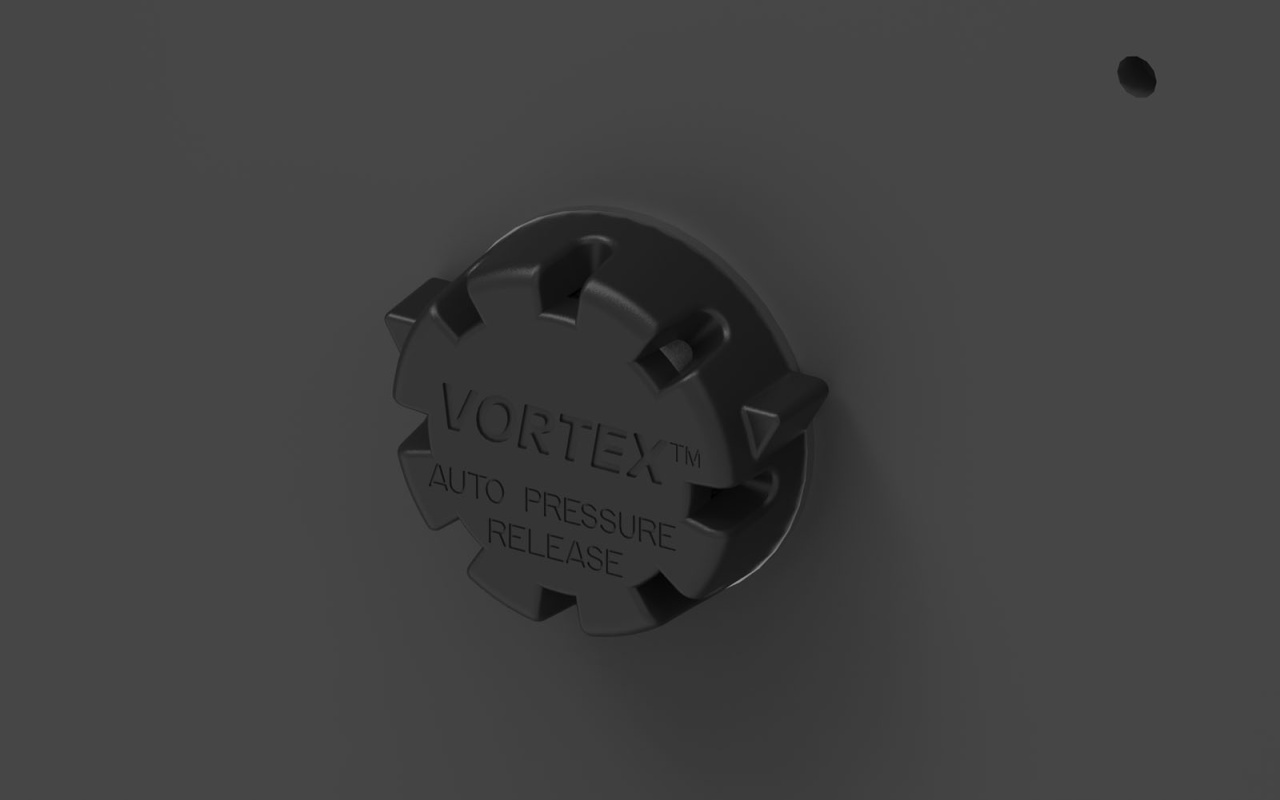

Valve depressurization: Vortex™ Valve included - ensures depressurization without the risk of water and dust entering

Recommended load: 10...80 kg

G-Rating: 15-30 G

Shock protection level: Medium - Medium Duty, for standard applications where the volume occupied and the weight of the housing are very important aspects

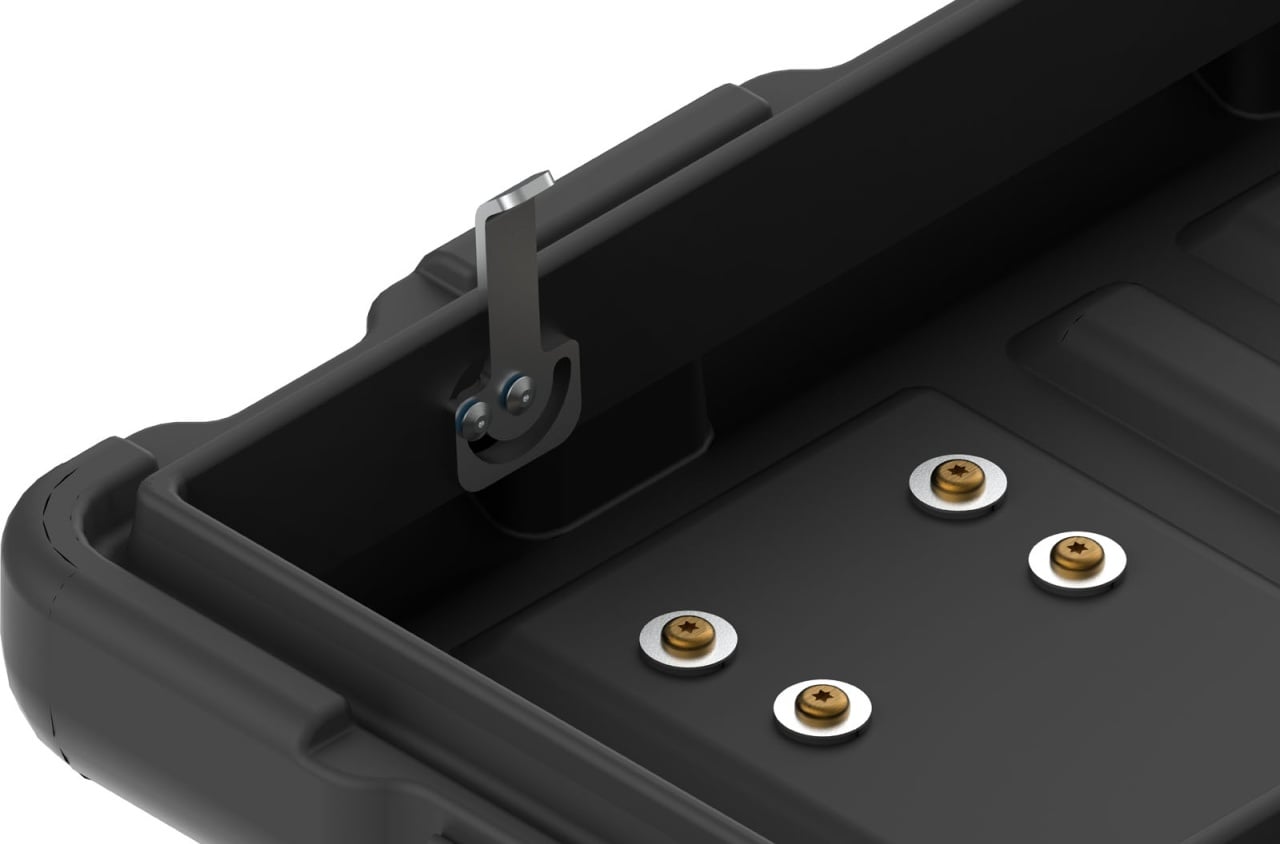

Shock absorbers: Cylindrical supports attached to the interior walls isolate the equipment, protecting it from vibrations

Use: Industrial and consumer fields

Color: black

Weight: 22 kg

Transport volume occupied: 0.215 m³
