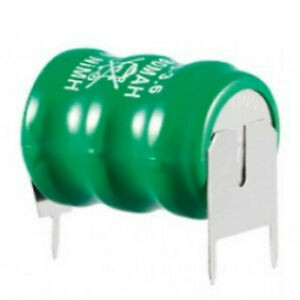

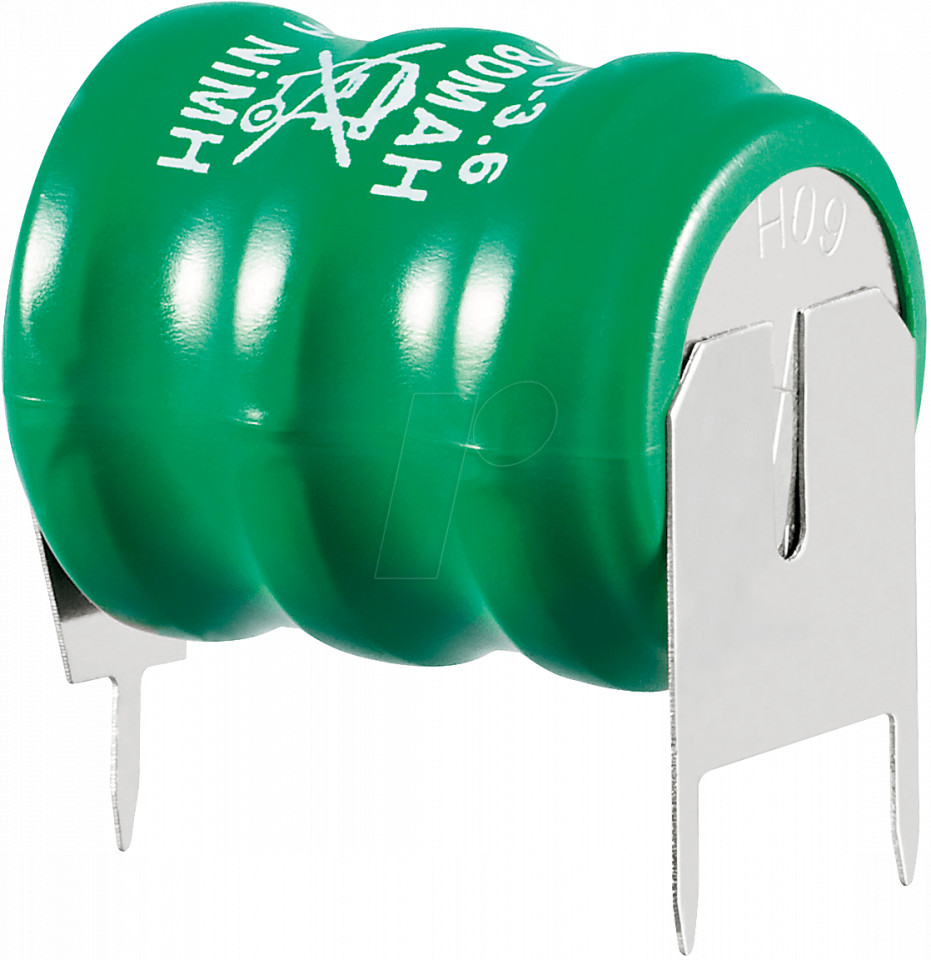

NiMH battery Akyga 3/V80H of 3.6V and 80mAh

Description

Rigid assembly consisting of 3 Nickel-Metal-Hydride type battery cells connected in series (3S), produced by AKYGA, model 3/V80H 3S, with a capacity of 80mAh and a total voltage of 3.6V, for industrial applications (used especially as backup battery or rechargeable memory battery in sensitive equipment).

The assembly is delivered with connectors, respectively 3 pins for attachment to the electronic board: 2 pins to the plus terminal/ 1 pin to the minus terminal. The gap between the 2 pins from the plus terminal is approx. 8.6mm

Brand/Manufacturer: Akyga

Model: 3/V80H 3S / Akyga code AKY0985 / B3x80H

Chemistry: NiMH

Nominal voltage: 3.6V

Nominal capacity: 80mAh

Lifetime: minimum 500 cycles if the specification is respected

Dimensions: 18.5mm ±0.5mm x 15.5mm ±0.5mm (length x diameter), including terminals

Weight: 13 grams

Terminals: 3P (3 pins), 2+1 pin connectors

Packaging: Bulk

 Warnings: Do not short-circuit, do not throw in fire, do not throw in the trash after use. Hand over the used batteries to authorized collection centers (such as the collection bins for used batteries in large stores).
