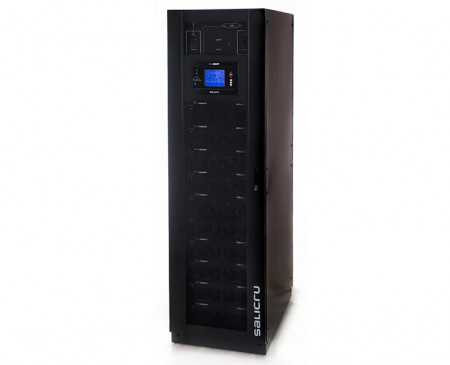

Modular UPS On-Line Double conversion SLC ADAPT 30-1500kVA

Description

On-line UPS with double conversion from 30 to 1500 kVA, three-phase

Flexibility, availability and reliability in superior electrical protection!

Salicru-Spain's SLC ADAPT series consists of modular uninterruptible power supply (UPS) double conversion solutions with DSP control and three-level IGBT inverter technology.

Flexibility: allows the configuration of solutions from 30 kVA to 1500 kVA, thanks to the range of available modules (30 and 50 kVA), different configurable systems (6 or 10 modules) and the parallel / redundant option of up to three systems of 500 kVA each. It also provides increased protection as needs grow - pay as you grow - improving total cost of ownership (TCO).

Availability: Its hot-swap modules can be added or replaced during operation, improving mean time to repair (MTTR) and reducing maintenance costs. In addition, remote system management, which can be integrated into any platform, facilitates operation. And the extensive back-up options available, together with intelligent battery charging, ensure the continuous operation of protected critical loads.

Reliability: DSP control, based on three-level PWM technology, improves response efficiency and, together with shared load redundancy, significantly extends mean time between failures (MTBF). In addition, both the control display and the bypass module can be replaced without affecting the operation of the device.

Download here the comparative specification for the available Salicru SLC ADAPT models.

Efficiency/power factor: F = 0.9

Communication/ports: RS-232, RS-485, USB communication channels, SNMP intelligent slot

Available powers: 30 and 50kVA modules

Stabilization: permanent AVR, voltage margin -43% ... +20%

Modules:

Performante:

Dual conversion technology with modular architecture.

6 or 10 modules (up to 500 kVA per system).
Possibility of parallel / redundant operation up to 1500 kVA.
Three-phase input / output voltages.
Control and management via LCD display, LEDs and keypad.
RS-232, RS-485, relays and USB communication channels.
Smart efficiency mode to optimize system performance.
Compact design to save space in server rooms.

This product is usually in stock at the supplier (Spain) - at the time of ordering you will be contacted to inform you of the delivery time. An advance payment will be requested when placing the order.

:
