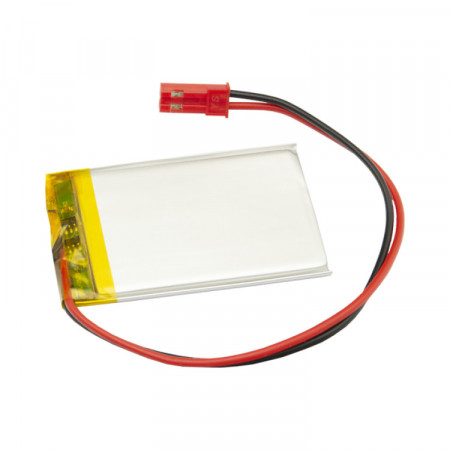

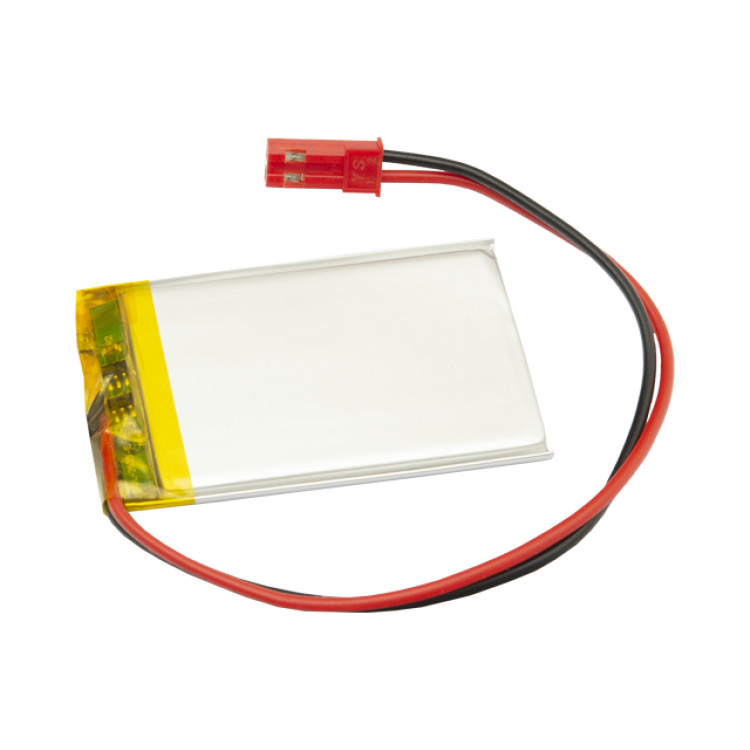

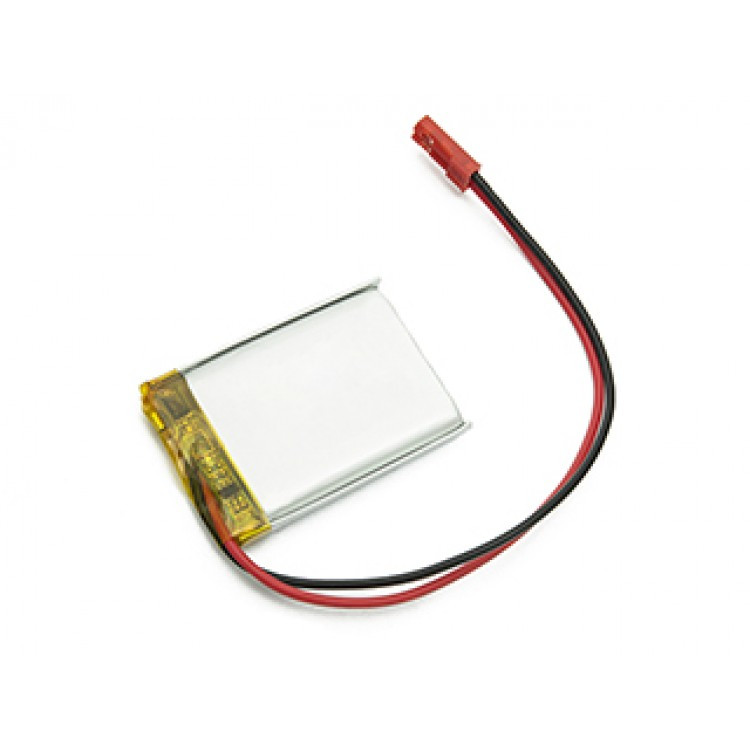

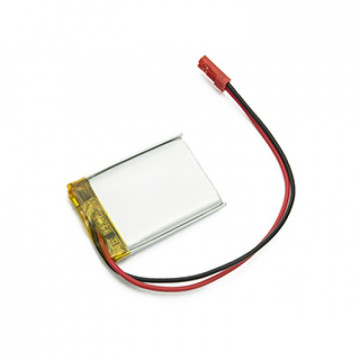

Li-Polymer battery LP903450 3.7V 1600mAh

Description

Lithium-Ion (Lithium-Polymer) type LP903450 battery (approx. 9 x 34 x 50 mm), 3.7 V and with a capacity of 1600 mAh used in professional applications and medical equipment. Being very light and able to operate even at extreme temperatures, it can also be used for model aircraft, drones, etc.

This battery is also compatible with the Foton HL5638 flashlight.

TECHNICAL SPECIFICATION:

Model: LP903450/1600 mAh / AKY0099

Brand/manufacturer: Akyga

Nominal voltage: 3.7 V

Minimum voltage limit: 2.75 V (cut-off voltage)

Nominal capacity: 1800 mAh @0.2C 2.75 V

Maximum discharge current: 1 C (1800 mA)

Maximum charging current: 1 C (1800 mA)

Internal resistance: 47 mΩ

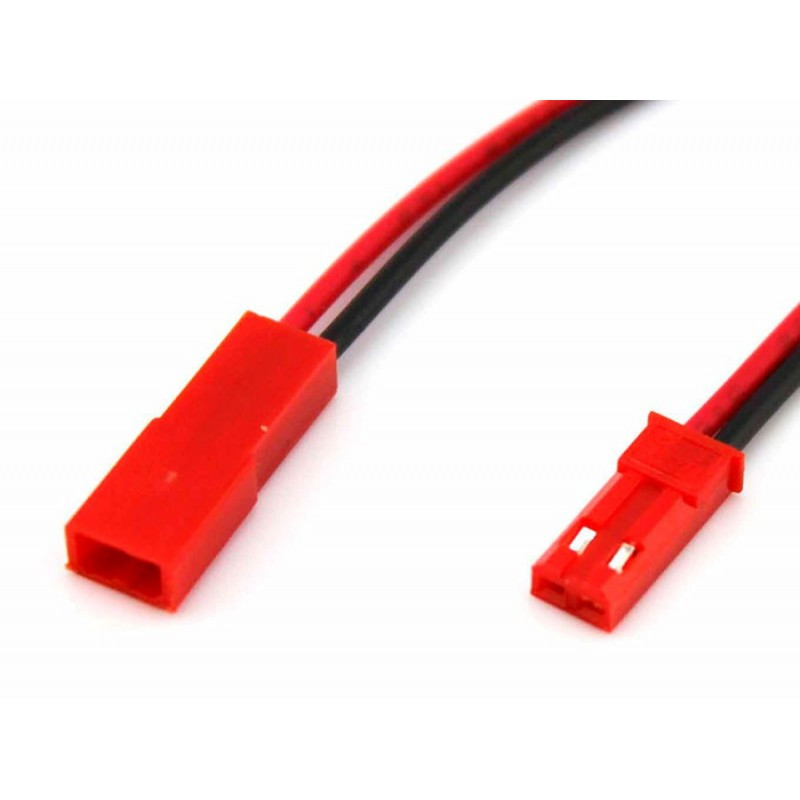

Terminals: 15 cm long red/black LIY cables, 2-pin 2.54 mm JST PHR-2(A) plug included

Protection: electronic protection circuit included (PCM)

Working temperature (discharge): -20 / 55 degrees Celsius

Cycles: 500 charge-discharge cycles at 80% discharge

Self-discharge in 30 days: 10% self-discharge / month at 25°C

Maximum dimensions without connectors: 11 (thickness) x 36 (width) x 53 (length) mm

Weight: 36 grams

Packaging: Bulk (without individual packaging, product for professional applications). It is sold together with cables and plugs.

 The product can only be returned in the condition in which it was delivered, without traces of use and assembly, within a maximum of 14 days from the purchase (e.g. in the case where it was ordered incorrectly, but was not assembled/used at all)

 It will be installed and used only by specialized personnel.

 Warnings: Do not throw in fire, do not short-circuit, do not throw in the trash after use. Hand over used batteries only at authorized collection centers (such as used battery collection bins in large stores)
