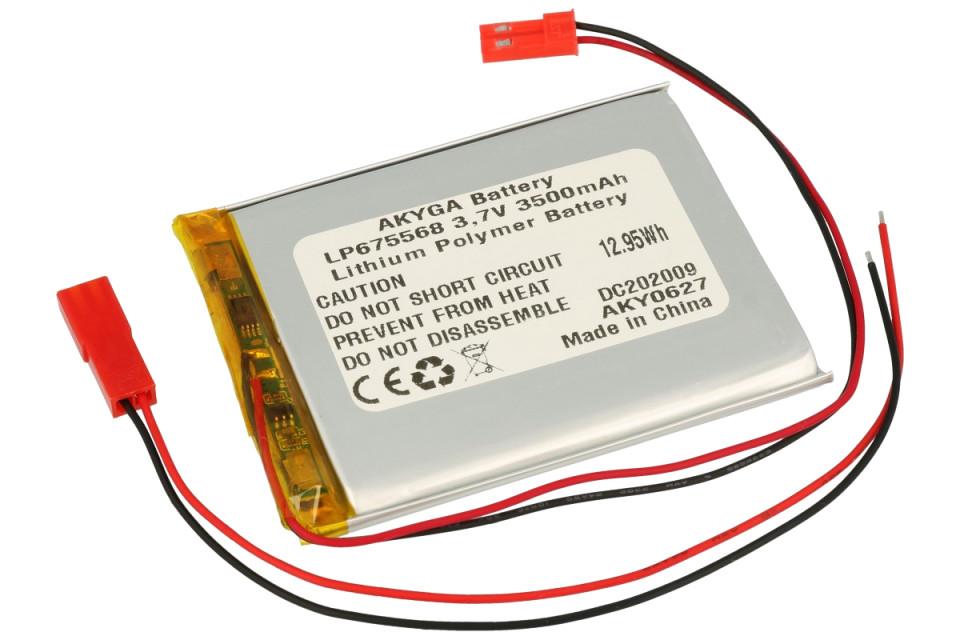

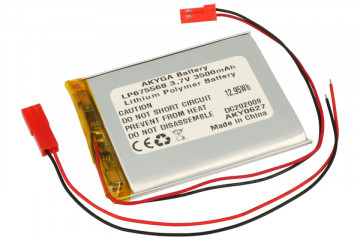

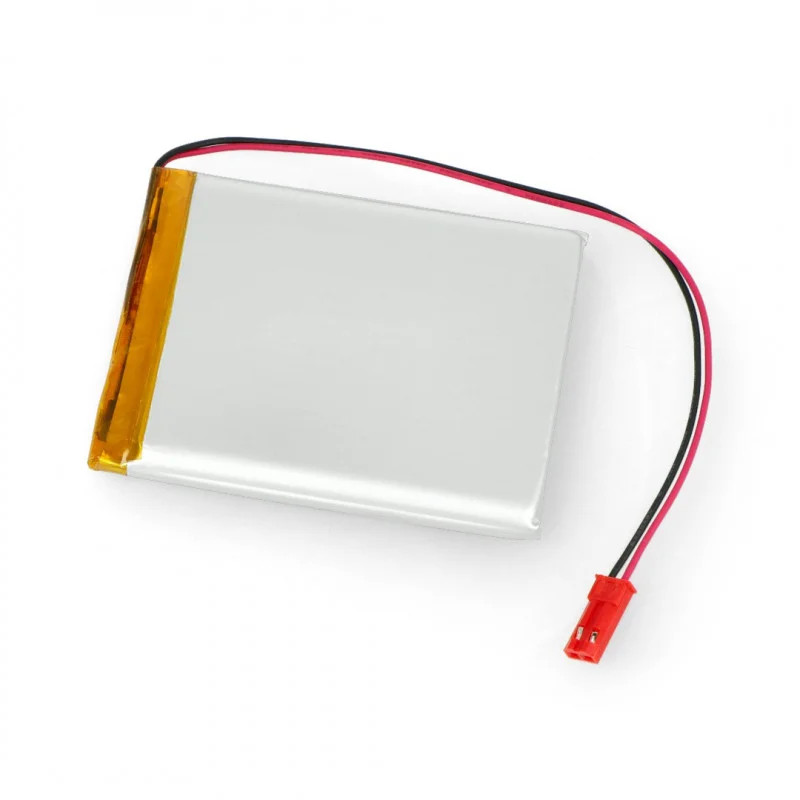

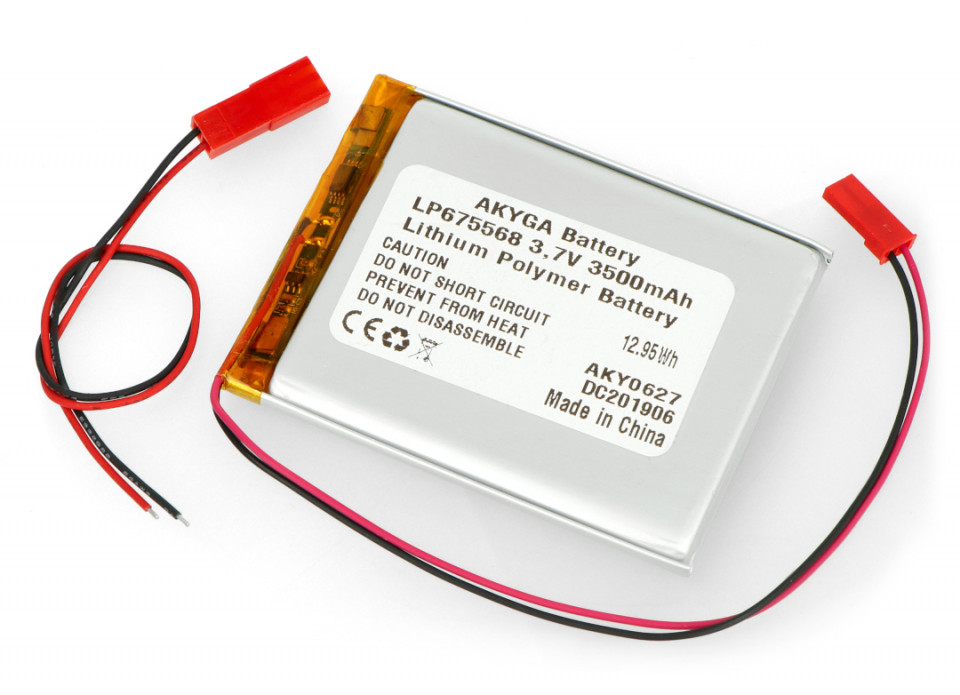

Li-Polymer battery LP675568 3.7V 3500mAh

Description

Lithium-Ion (Lithium-Polymer) type LP675568 battery (6.7 x 55 x 68 mm), 3.7V and with a capacity of 3500mAh used in professional applications and medical equipment. Being very light and able to operate even at extreme temperatures, it can also be used for model aircraft, drones, etc.

Model: LP675568 / 675568 / Aky0627

Battery Chemistry: Lithium-polymer / Polymer Lithium-Ion (LiPo)

Rechargeable: Yes

Brand/manufacturer: Akyga

Nominal voltage: 3.7V (max. 4.2V)

Nominal capacity: 3500 mAh (3.5 Ah) @ 0.2 C (cut-off voltage 2.75 V)

Nominal power: 12.95 Wh

Initial internal resistance: 42 mΩ (AC 1 KHz)

Maximum charge current: 1C

Maximum discharge current: 1C

Terminals: 15 cm long red/black LIY cables, 2-pin 2.54JST connector/plug (JST SYP-02T-1) included

Protection: electronic protection circuit included

Temperature: Discharge -10 ... +55 degrees Celsius / Charge 0 ... +45 degrees Celsius / Storage -20 ... +45 degrees Celsius

Cycles: up to 1000 charge-discharge cycles

Maximum dimensions: 7.2 (thickness) x 56 (width) x 68.5 (length) mm

Weight: approx. 70 grams

Packaging: Bulk (product for professional applications). Sold with cables and plugs.

 The product can only be returned in the condition in which it was delivered, without traces of use and assembly, within a maximum of 14 days from the purchase (e.g. in the case where it was ordered incorrectly, but was not assembled/used at all)

 It will be installed and used only by specialized personnel.

 Warnings: Do not throw in fire, do not short-circuit, do not throw in the trash after use. Hand over used batteries only at authorized collection centers (such as used battery collection bins in large stores)
