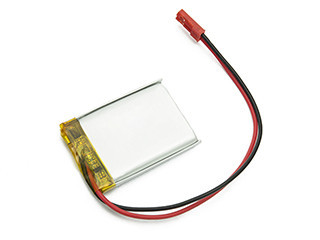

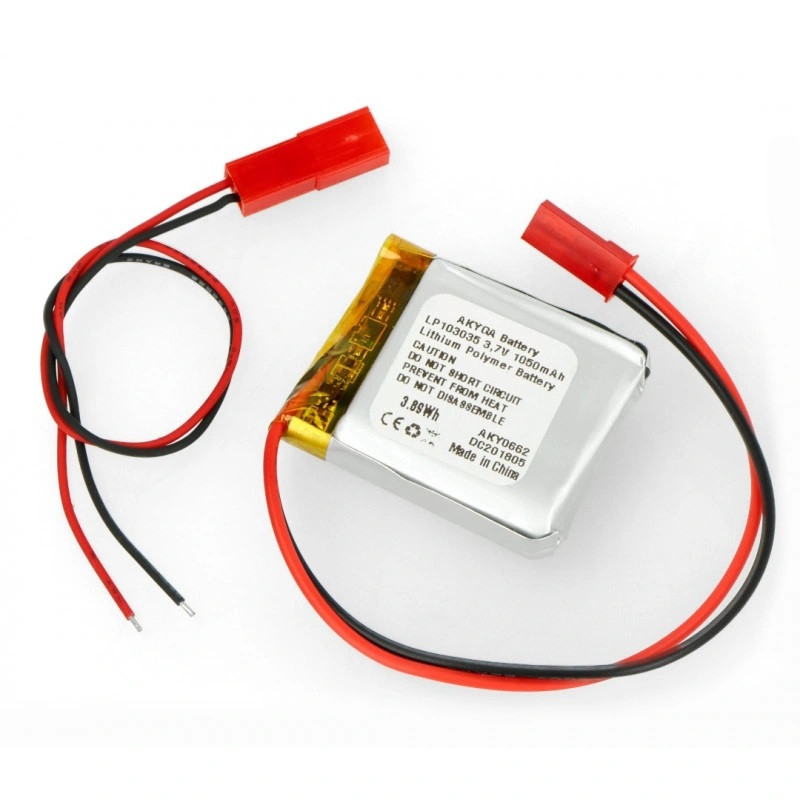

Li-Polymer battery LP103035 3.7V 1050mAh

Description

Lithium-Ion (Lithium-Polymer) type LP103035 battery (10x30x35mm), 3.7V and with a capacity of 1050mAh used in professional applications and medical equipment. Being very light and able to operate even at extreme temperatures, it can also be used for model aircraft, drones, etc.

TECHNICAL SPECIFICATION:

Model: LP103035 / AKY0662

Brand/Manufacturer: Akyga / Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, sales@akygabattery.com

EU Responsible Entity: Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, sales@akygabattery.com

Country of origin: China

Nominal voltage: 3.7 V (max. 4.2 V)

Nominal capacity: 1050 mAh 3.9 Wh @0.2C cut-off 2.75V

Charging parameters: Voltage 4.2V / current max. 1C (1.05A)

Maximum discharge current: 1C = 1050mA (limited by PCM). Recommended discharge is 0.2C (200mA)

Cut-off voltage: 2.75V

Internal resistance (impedance): ~42mΩ (after standard AC1KHz charging)

Self-discharge: <10%/month at +25°C

Terminals: 15 cm long red/black LIY cables, 2-pin 2.54 JST SYP-02T-1 plug

Protection: electronic protection circuit included

Operating temperature (discharging): -10°C ... +55°C

Operating temperature (charging): 0°C ... +45°C

Storage temperature: -20°C ... +45°C

Cycles: up to 1000 charge-discharge cycles

Dimensions: Maximum 10.5 (thickness) x 31 (width) x 35.5 (length) mm

Weight: ~20.7 grams

Packaging: Bulk (product for professional applications). Sold with cables and plugs.

Certifications: CE / RoHS

 The product can only be returned in the condition in which it was delivered, without traces of use and assembly, within a maximum of 14 days from the purchase (e.g. in the case where it was ordered incorrectly, but was not assembled/used at all)

 It will be installed and used only by specialized personnel.

 Warnings: Do not throw in fire, do not short-circuit, do not throw in the trash after use. Hand over used batteries only at authorized collection centers (such as used battery collection bins in large stores)
