Foldable 2 bike rack Uebler X21-S

Description

Uebler X21-S Premium Bike Carrier Rear Rack for 2 Bikes Folding 60 Degrees

Approved by FORD and sold in its list of original accessories, the UEBLER X21-S support is mounted on the towing hook and allows the transport of 1-2 bicycles with frames up to 75mm round or 75x45mm oval.

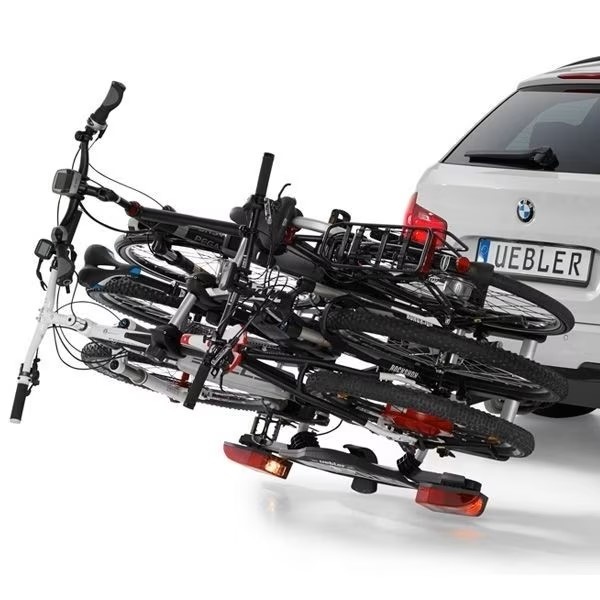

It is equipped with a pedal for quick folding, in order to access the trunk even with mounted bicycles and has extremely small dimensions and weight.

It is provided with adjustable buckles with long straps for catching and fixing bicycle wheels. The large distance between the wheel supports allows the transportation of bicycles with a large wheelbase without any risk of damage (maximum 127 cm). Thanks to the patented folding system, the rear lights, bike racks and support frame can be completely folded in just a few seconds.

The support is lockable (with a key), has a load capacity of 30 kg, being also suitable for electric bicycles. The support has an own weight of approximately 13.5 kg, with a 13-pin adapter (socket) included. The size of the stand: 770 x 1190 x 640 mm, and when folded it is only 240 x 630 x 640 mm. Vertical load: 36 kg from the dynamic load value of 5.3 kN, 60 kg from the dynamic load value of 6.7 kN. Bicycle wheel hub distance: 1300 mm.

Please note: The gross weight mounted on the towing hook (the weight of the product together with the load of the mounted bicycles) must not exceed the static vertical load limit of the towing hook.

Accessory type: Support 1-2 bicycles, with mounting on the towing hook.

Support type: Foldable and 60° folding, even with mounted bicycles

Material: Aluminum + plastic + rubber

Accessory brand: UEBLER (approved by FORD)

Ford accessory model code: 1948383 (Uebler code 15770)

Compatible vehicle model: Any vehicle with towing hook and 13-pin light socket

Year of manufacture of compatible vehicle: Any

Own weight support: 16.5 kg (including 13-pin adapter)

Maximum weight supported: 30 kg per rail

Folded dimensions: 24 x 63 x 79 cm

Assembled dimensions: 77 x 119 x 79 cm

Maximum size of the bicycle frame: 75mm round / 75x45mm oval

Lockable: Yes, both the rack and the bikes can be locked using the included key locks.

Lights: Yes (signaling, brake, reversing light)

Registration number support: Yes

Color: black+silver

Warranty covered by Ford.
